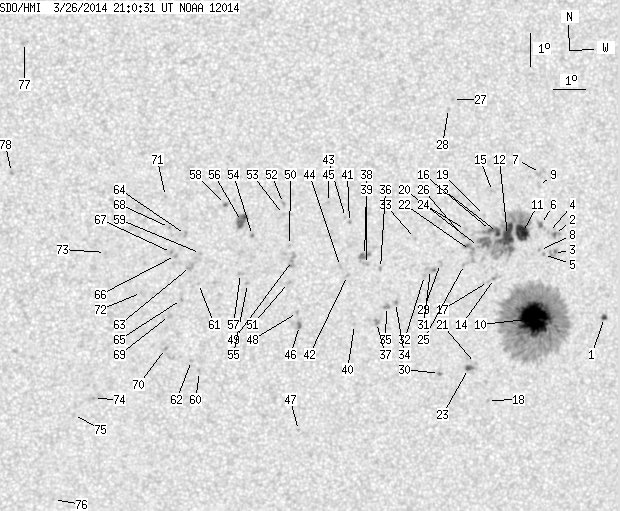

SDO HMI 2014-03-26 21:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.90 | 711.25 | 59.24 | 375.59 | -13.42 | 170.74 | 19.20 | 248.84 | 0.3444 | 450.2 | 336.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-26 21:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.75 | 3.15 | 0.95 | 1.70 | -14.10 | 174.50 | 22.96 | 250.22 | 0.4037 | 839.0 | 647.4 | |
| 0.70 | 3.76 | 0.37 | 2.00 | -11.68 | 172.62 | 21.08 | 255.26 | 0.3658 | 1009.8 | 708.6 | |
| 0.00 | 5.77 | 0.00 | 3.07 | -12.25 | 172.63 | 21.09 | 253.74 | 0.3679 | 546.0 | 696.5 | |
| 0.00 | 1.31 | 0.00 | 0.70 | -11.63 | 172.42 | 20.88 | 255.30 | 0.3625 | 885.0 | 665.9 | |
| 0.00 | 1.31 | 0.00 | 0.70 | -12.30 | 172.31 | 20.77 | 253.43 | 0.3631 | 688.0 | 491.4 | |
| 0.87 | 4.11 | 0.46 | 2.18 | -11.40 | 172.14 | 20.60 | 255.78 | 0.3574 | 902.8 | 692.5 | |
| 0.00 | 4.20 | 0.00 | 2.22 | -9.85 | 172.03 | 20.49 | 260.08 | 0.3517 | 640.0 | 590.2 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -12.18 | 172.17 | 20.63 | 253.65 | 0.3605 | 686.0 | 480.4 | |
| 0.00 | 2.80 | 0.00 | 1.48 | -10.24 | 172.00 | 20.45 | 258.96 | 0.3519 | 475.0 | 456.6 | |
| 63.47 | 416.22 | 33.81 | 221.77 | -14.23 | 172.18 | 20.64 | 248.23 | 0.3696 | 1355.6 | 408.3 | |
| 14.51 | 134.63 | 7.67 | 70.91 | -11.66 | 171.58 | 20.03 | 254.73 | 0.3493 | 1041.0 | 642.1 | |
| 17.48 | -11.00 | 9.21 | -11.00 | -11.77 | 171.10 | 19.56 | 254.13 | 0.3422 | 1116.5 | 999999 | |
| 2.80 | -11.00 | 1.47 | -11.00 | -11.69 | 170.77 | 19.23 | 254.15 | 0.3367 | 1201.4 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -13.08 | 170.77 | 19.23 | 250.19 | 0.3426 | -791.0 | -613.1 | |
| 0.00 | 1.66 | 0.00 | 0.87 | -10.47 | 170.52 | 18.98 | 257.63 | 0.3289 | 706.0 | 641.6 | |
| 1.75 | -11.00 | 0.92 | -11.00 | -11.64 | 170.54 | 19.00 | 254.15 | 0.3329 | 1098.1 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -13.17 | 170.59 | 19.05 | 249.76 | 0.3401 | -767.0 | -604.5 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -16.76 | 170.88 | 19.34 | 240.53 | 0.3659 | -575.0 | -551.8 | |
| 0.00 | 0.87 | 0.00 | 0.46 | -11.20 | 170.31 | 18.77 | 255.32 | 0.3278 | 839.0 | 600.5 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -12.14 | 170.18 | 18.64 | 252.45 | 0.3293 | 957.0 | 824.0 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -15.66 | 170.38 | 18.84 | 242.78 | 0.3512 | 756.0 | 555.4 | |
| 0.00 | 9.35 | 0.00 | 4.90 | -12.27 | 169.94 | 18.39 | 251.87 | 0.3259 | 429.0 | 848.7 | |
| 1.84 | 4.46 | 0.97 | 2.36 | -15.82 | 170.16 | 18.62 | 242.12 | 0.3491 | 1036.9 | 786.2 | |
| 0.00 | 1.66 | 0.00 | 0.87 | -11.64 | 169.73 | 18.19 | 253.60 | 0.3201 | 832.0 | 681.5 | |
| 0.00 | 2.10 | 0.00 | 1.10 | -12.69 | 169.77 | 18.23 | 250.47 | 0.3253 | 920.0 | 658.9 | |
| 0.00 | 2.10 | 0.00 | 1.10 | -11.82 | 169.65 | 18.11 | 252.98 | 0.3195 | 739.0 | 682.0 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -7.77 | 169.11 | 17.57 | 265.76 | 0.3012 | 760.0 | 620.8 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -8.04 | 168.99 | 17.45 | 264.83 | 0.2995 | 625.0 | 472.3 | |
| 0.00 | 2.80 | 0.00 | 1.46 | -12.69 | 169.00 | 17.46 | 249.80 | 0.3133 | 658.0 | 555.7 | |
| 0.35 | 1.49 | 0.18 | 0.78 | -16.00 | 169.23 | 17.69 | 240.52 | 0.3370 | -937.2 | -787.1 | |
| 0.00 | 3.06 | 0.00 | 1.59 | -12.88 | 168.69 | 17.15 | 248.92 | 0.3095 | 693.0 | 737.7 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -13.07 | 168.51 | 16.97 | 248.16 | 0.3077 | 805.0 | 568.3 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -11.97 | 168.15 | 16.61 | 251.30 | 0.2966 | 980.0 | 742.1 | |
| 0.00 | 1.49 | 0.00 | 0.77 | -13.91 | 167.64 | 16.10 | 244.56 | 0.2994 | -661.0 | -587.8 | |
| 0.00 | 3.06 | 0.00 | 1.59 | -14.04 | 167.36 | 15.82 | 243.81 | 0.2961 | -957.0 | -805.5 | |
| 0.00 | 1.57 | 0.00 | 0.81 | -12.90 | 167.09 | 15.55 | 247.12 | 0.2850 | -667.0 | -508.3 | |
| 0.00 | 3.06 | 0.00 | 1.59 | -14.53 | 167.08 | 15.53 | 241.90 | 0.2952 | -829.0 | -728.3 | |
| 0.00 | 2.36 | 0.00 | 1.22 | -12.79 | 166.64 | 15.10 | 246.94 | 0.2774 | -732.0 | -628.4 | |
| 0.00 | 6.56 | 0.00 | 3.38 | -12.52 | 166.56 | 15.02 | 247.76 | 0.2746 | -933.0 | -782.8 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -14.61 | 166.38 | 14.84 | 240.62 | 0.2856 | -742.0 | -499.1 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -11.55 | 166.04 | 14.49 | 250.62 | 0.2611 | 1033.0 | 894.1 | |
| 0.00 | 1.22 | 0.00 | 0.63 | -13.14 | 166.06 | 14.52 | 244.99 | 0.2706 | -803.0 | -614.1 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -11.40 | 165.90 | 14.36 | 251.02 | 0.2583 | 650.0 | 508.7 | |
| 0.00 | 2.10 | 0.00 | 1.08 | -12.88 | 165.82 | 14.28 | 245.58 | 0.2653 | -785.0 | -659.5 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -10.97 | 165.35 | 13.81 | 252.07 | 0.2474 | 761.0 | 614.3 | |
| 0.00 | 3.32 | 0.00 | 1.70 | -14.69 | 164.63 | 13.09 | 237.43 | 0.2611 | 966.0 | 861.1 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -17.87 | 164.81 | 13.27 | 228.29 | 0.2940 | 755.0 | 555.1 | |
| 0.00 | 1.57 | 0.00 | 0.81 | -14.30 | 164.54 | 13.00 | 238.58 | 0.2566 | 797.0 | 597.9 | |
| 0.00 | 7.43 | 0.00 | 3.79 | -12.74 | 164.30 | 12.76 | 243.79 | 0.2412 | -854.0 | -685.7 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -12.29 | 164.19 | 12.65 | 245.34 | 0.2364 | -660.0 | -557.8 | |
| 0.00 | 1.92 | 0.00 | 0.98 | -13.40 | 164.21 | 12.67 | 241.15 | 0.2447 | -307.0 | -393.7 | |
| 0.00 | 1.49 | 0.00 | 0.76 | -11.03 | 163.94 | 12.40 | 250.10 | 0.2252 | 867.0 | 700.2 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -11.36 | 163.96 | 12.42 | 248.73 | 0.2272 | 817.0 | 640.3 | |
| 0.00 | 1.49 | 0.00 | 0.75 | -12.01 | 163.02 | 11.48 | 244.46 | 0.2167 | -955.0 | -799.4 | |
| 0.00 | 1.31 | 0.00 | 0.67 | -13.46 | 162.93 | 11.38 | 238.42 | 0.2264 | -872.0 | -702.2 | |
| 5.94 | 10.84 | 3.01 | 5.49 | -11.60 | 162.66 | 11.12 | 245.60 | 0.2083 | -1049.5 | -863.1 | |
| 0.00 | 2.01 | 0.00 | 1.02 | -13.16 | 162.69 | 11.15 | 239.08 | 0.2205 | -867.0 | -703.0 | |
| 0.44 | 1.75 | 0.22 | 0.88 | -11.10 | 162.14 | 10.60 | 246.96 | 0.1971 | -1017.4 | -861.9 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -12.59 | 161.42 | 9.88 | 238.57 | 0.1971 | -784.0 | -639.4 | |
| 0.00 | 2.19 | 0.00 | 1.11 | -16.14 | 161.55 | 10.00 | 225.52 | 0.2350 | -867.0 | -640.8 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -13.49 | 161.39 | 9.85 | 234.66 | 0.2049 | -705.0 | -572.7 | |
| 0.00 | 1.31 | 0.00 | 0.67 | -15.82 | 161.28 | 9.74 | 225.81 | 0.2279 | -955.0 | -795.3 | |
| 0.00 | 4.02 | 0.00 | 2.03 | -12.98 | 161.12 | 9.58 | 236.08 | 0.1964 | -741.0 | -829.9 | |
| 0.00 | 2.45 | 0.00 | 1.23 | -12.02 | 160.94 | 9.39 | 239.94 | 0.1853 | -920.0 | -759.2 | |
| 0.00 | 1.40 | 0.00 | 0.71 | -13.98 | 160.88 | 9.34 | 231.27 | 0.2028 | -901.0 | -717.3 | |
| 0.00 | 1.57 | 0.00 | 0.79 | -12.66 | 160.65 | 9.11 | 236.20 | 0.1867 | -994.0 | -860.1 | |
| 0.00 | 1.31 | 0.00 | 0.66 | -12.57 | 160.52 | 8.98 | 236.25 | 0.1840 | -1047.0 | -840.8 | |
| 0.00 | 1.31 | 0.00 | 0.66 | -11.82 | 160.43 | 8.89 | 239.61 | 0.1762 | -1038.0 | -802.1 | |
| 0.00 | 2.45 | 0.00 | 1.24 | -14.47 | 160.53 | 8.99 | 228.32 | 0.2034 | -752.0 | -695.5 | |
| 0.00 | 1.40 | 0.00 | 0.71 | -15.47 | 160.44 | 8.90 | 224.48 | 0.2138 | -861.0 | -777.2 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -10.90 | 160.28 | 8.74 | 244.07 | 0.1667 | -824.0 | -689.9 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -13.79 | 159.63 | 8.09 | 228.10 | 0.1845 | -857.0 | -737.2 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -12.60 | 158.48 | 6.94 | 229.21 | 0.1564 | -819.0 | -670.8 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -17.02 | 158.24 | 6.70 | 212.09 | 0.2109 | -960.0 | -824.1 | |
| 0.00 | 1.75 | 0.00 | 0.89 | -17.51 | 157.63 | 6.09 | 208.50 | 0.2129 | -661.0 | -505.8 | |
| 0.00 | 0.61 | 0.00 | 0.31 | -20.11 | 157.08 | 5.54 | 201.46 | 0.2489 | -730.0 | -625.0 | |
| 0.00 | 2.71 | 0.00 | 1.35 | -6.34 | 155.91 | 4.37 | 275.92 | 0.0765 | -821.0 | -668.0 | |
| 0.00 | 1.31 | 0.00 | 0.65 | -10.23 | 155.56 | 4.02 | 228.98 | 0.0918 | 1042.0 | 817.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
