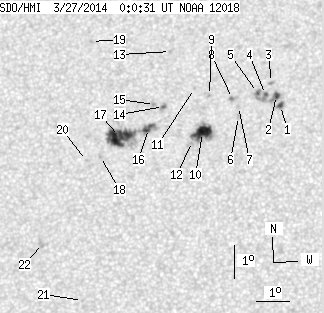

SDO HMI 2014-03-27 00:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.50 | 133.19 | 30.00 | 68.29 | 3.01 | 138.75 | -11.14 | 48.47 | 0.2593 | 109.7 | -61.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-27 00:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.27 | 3.76 | 1.16 | 1.91 | 3.67 | 142.15 | -7.73 | 36.61 | 0.2263 | -1090.3 | -870.6 | |
| 2.71 | 17.67 | 1.38 | 9.00 | 3.97 | 142.03 | -7.86 | 36.25 | 0.2317 | -992.8 | -858.4 | |
| 0.00 | 2.01 | 0.00 | 1.03 | 4.37 | 141.87 | -8.01 | 35.79 | 0.2388 | -894.0 | -735.2 | |
| 1.05 | -2.00 | 0.53 | -2.00 | 4.01 | 141.70 | -8.19 | 37.30 | 0.2356 | -938.4 | 999999 | |
| 1.22 | -2.00 | 0.62 | -2.00 | 4.08 | 141.45 | -8.43 | 37.95 | 0.2390 | -866.1 | 999999 | |
| 0.00 | 1.57 | 0.00 | 0.80 | 3.36 | 140.88 | -9.00 | 41.74 | 0.2357 | -991.0 | -745.6 | |
| 0.00 | 1.84 | 0.00 | 0.94 | 3.66 | 140.88 | -9.01 | 40.91 | 0.2397 | -769.0 | -562.8 | |
| 0.00 | 3.15 | 0.00 | 1.61 | 3.91 | 140.70 | -9.19 | 40.82 | 0.2449 | -1184.0 | -878.8 | |
| 0.00 | 1.31 | 0.00 | 0.67 | 4.02 | 140.00 | -9.89 | 42.64 | 0.2541 | -844.0 | -626.7 | |
| 15.83 | 24.23 | 8.08 | 12.37 | 2.90 | 139.79 | -10.09 | 46.39 | 0.2429 | -1094.3 | -700.1 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 4.24 | 139.54 | -10.35 | 43.36 | 0.2622 | -686.0 | -541.1 | |
| 0.00 | 1.31 | 0.00 | 0.67 | 2.63 | 139.49 | -10.40 | 48.04 | 0.2435 | -449.0 | -462.7 | |
| 0.00 | 1.40 | 0.00 | 0.72 | 5.39 | 138.79 | -11.10 | 42.52 | 0.2849 | -663.0 | -518.7 | |
| 0.61 | 3.67 | 0.31 | 1.89 | 3.71 | 138.60 | -11.29 | 47.29 | 0.2671 | 1002.0 | 847.4 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 3.78 | 138.32 | -11.57 | 47.80 | 0.2713 | 606.0 | 558.2 | |
| 5.42 | 58.34 | 2.79 | 30.02 | 3.06 | 138.14 | -11.74 | 50.27 | 0.2654 | 1084.0 | 607.0 | |
| 29.39 | -16.00 | 15.13 | -16.00 | 2.84 | 137.26 | -12.63 | 52.97 | 0.2748 | 1110.2 | 999999 | |
| 0.00 | 2.01 | 0.00 | 1.04 | 2.25 | 136.68 | -13.21 | 55.94 | 0.2768 | 882.0 | 610.7 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 5.76 | 136.35 | -13.54 | 47.38 | 0.3179 | -792.0 | -636.9 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 2.14 | 136.25 | -13.64 | 57.13 | 0.2818 | 729.0 | 561.3 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -2.07 | 136.12 | -13.76 | 71.58 | 0.2517 | 744.0 | 524.5 | |
| 0.00 | 6.03 | 0.00 | 3.11 | -0.32 | 134.90 | -14.99 | 67.15 | 0.2819 | 625.0 | 542.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
