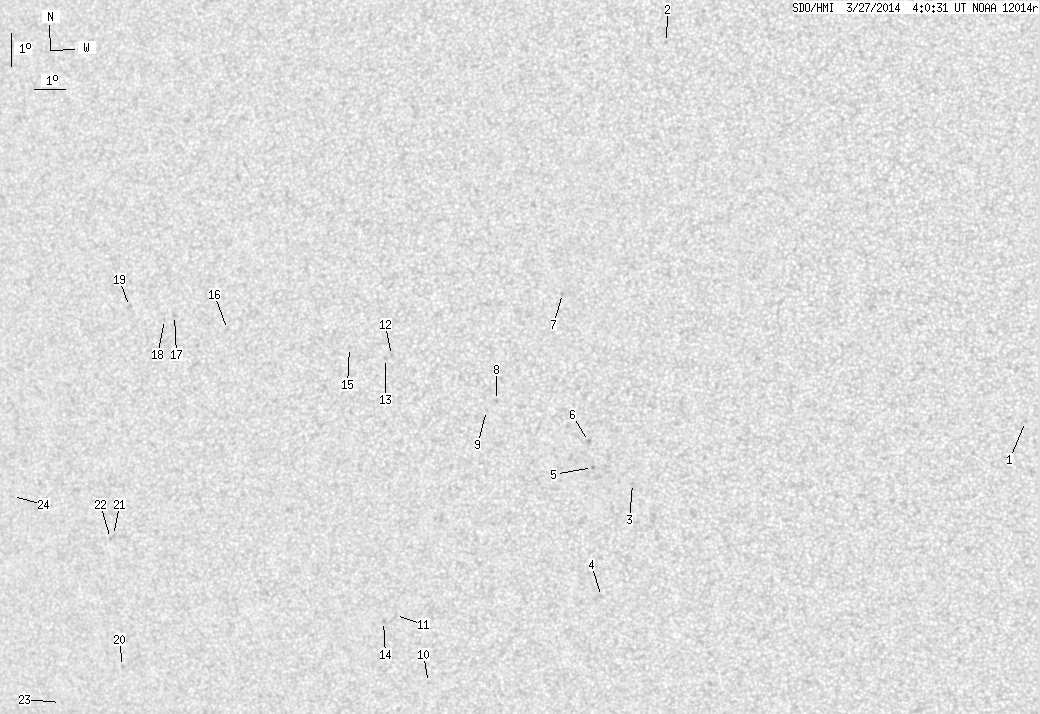

SDO HMI 2014-03-27 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 28.46 | 0.00 | 15.50 | -14.70 | 125.46 | -22.23 | 113.20 | 0.4016 | 471.2 | 423.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-27 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.44 | -14.59 | 146.08 | -1.61 | 168.66 | 0.1389 | 883.0 | 733.7 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -3.06 | 135.30 | -12.39 | 73.75 | 0.2243 | 733.0 | 579.1 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -16.26 | 133.68 | -14.01 | 125.82 | 0.2879 | 993.0 | 762.4 | |
| 0.00 | 1.66 | 0.00 | 0.87 | -19.67 | 132.38 | -15.31 | 132.36 | 0.3380 | 102.0 | 159.2 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -15.73 | 132.43 | -15.25 | 122.18 | 0.3005 | 954.0 | 818.3 | |
| 0.00 | 2.10 | 0.00 | 1.09 | -14.94 | 132.37 | -15.32 | 119.72 | 0.2953 | 1063.0 | 769.0 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -10.47 | 131.83 | -15.86 | 104.30 | 0.2786 | 893.0 | 726.9 | |
| 0.00 | 1.31 | 0.00 | 0.69 | -13.61 | 129.50 | -18.19 | 112.29 | 0.3293 | 908.0 | 733.7 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -13.90 | 129.16 | -18.53 | 112.77 | 0.3361 | 605.0 | 399.8 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -22.10 | 126.22 | -21.47 | 128.69 | 0.4362 | 693.0 | 568.7 | |
| 0.00 | 1.93 | 0.00 | 1.06 | -19.99 | 125.41 | -22.28 | 123.58 | 0.4294 | 709.0 | 600.5 | |
| 0.00 | 1.40 | 0.00 | 0.75 | -12.12 | 126.20 | -21.49 | 105.71 | 0.3737 | 793.0 | 572.0 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -12.20 | 126.00 | -21.69 | 105.81 | 0.3771 | 683.0 | 622.3 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -20.16 | 124.97 | -22.72 | 123.47 | 0.4364 | 830.0 | 680.1 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -11.82 | 124.84 | -22.85 | 104.26 | 0.3938 | 789.0 | 563.0 | |
| 0.00 | 1.66 | 0.00 | 0.92 | -11.07 | 120.80 | -26.89 | 101.10 | 0.4542 | 734.0 | 568.0 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -10.55 | 119.03 | -28.66 | 99.60 | 0.4802 | 830.0 | 675.7 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -10.65 | 118.67 | -29.02 | 99.74 | 0.4857 | 692.0 | 570.6 | |
| 0.00 | 1.84 | 0.00 | 1.05 | -10.19 | 117.49 | -30.20 | 98.62 | 0.5027 | 735.0 | 593.6 | |
| 0.00 | 1.49 | 0.00 | 0.89 | -21.04 | 115.37 | -32.32 | 117.80 | 0.5663 | -748.0 | -606.6 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -17.03 | 115.91 | -31.78 | 111.13 | 0.5420 | -685.0 | -562.2 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -17.11 | 115.78 | -31.91 | 111.23 | 0.5441 | -781.0 | -694.6 | |
| 0.00 | 0.35 | 0.00 | 0.22 | -21.99 | 112.72 | -34.97 | 117.94 | 0.6039 | -505.0 | -580.5 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -15.61 | 112.40 | -35.29 | 107.39 | 0.5853 | -593.0 | -494.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
