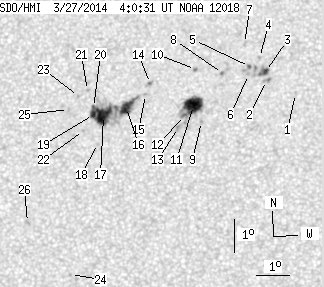

SDO HMI 2014-03-27 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.96 | 145.02 | 30.53 | 73.81 | 3.02 | 138.85 | -8.84 | 41.77 | 0.2315 | 76.6 | 3.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-27 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.57 | 3.34 | 143.06 | -4.63 | 24.65 | 0.1940 | -744.0 | -592.8 | |
| 0.00 | 3.15 | 0.00 | 1.59 | 3.74 | 142.19 | -5.50 | 27.69 | 0.2069 | -1149.0 | -863.9 | |
| 2.54 | 10.94 | 1.29 | 5.54 | 4.02 | 142.15 | -5.53 | 27.22 | 0.2113 | -1074.7 | -815.5 | |
| 0.00 | 1.75 | 0.00 | 0.89 | 4.45 | 141.97 | -5.72 | 27.07 | 0.2193 | -865.0 | -526.6 | |
| 0.61 | 3.41 | 0.31 | 1.73 | 4.17 | 141.67 | -6.02 | 28.87 | 0.2176 | -840.0 | -772.7 | |
| 0.00 | 1.31 | 0.00 | 0.67 | 3.93 | 141.64 | -6.05 | 29.53 | 0.2142 | -860.0 | -715.3 | |
| 0.00 | 1.93 | 0.00 | 0.98 | 4.88 | 141.52 | -6.17 | 27.98 | 0.2294 | -671.0 | -566.4 | |
| 0.00 | 1.66 | 0.00 | 0.84 | 3.97 | 140.86 | -6.83 | 32.53 | 0.2217 | -1101.0 | -926.8 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 2.53 | 140.23 | -7.46 | 38.84 | 0.2077 | -916.0 | -792.7 | |
| 0.00 | 1.66 | 0.00 | 0.85 | 4.11 | 140.04 | -7.65 | 35.21 | 0.2313 | -992.0 | -748.8 | |
| 20.92 | 34.92 | 10.61 | 17.71 | 3.02 | 139.99 | -7.70 | 38.31 | 0.2168 | -1140.2 | -581.2 | |
| 0.79 | -11.00 | 0.40 | -11.00 | 2.72 | 139.72 | -7.97 | 40.16 | 0.2158 | -853.8 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.29 | 2.36 | 139.54 | -8.15 | 41.90 | 0.2131 | -843.0 | -748.7 | |
| 0.00 | 1.49 | 0.00 | 0.76 | 3.71 | 138.68 | -9.01 | 40.82 | 0.2401 | 988.0 | 788.1 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 3.38 | 138.53 | -9.16 | 42.21 | 0.2375 | 534.0 | 505.8 | |
| 10.76 | 68.70 | 5.49 | 35.08 | 2.99 | 137.96 | -9.73 | 45.07 | 0.2395 | 1092.0 | 633.0 | |
| 19.17 | -16.00 | 9.79 | -16.00 | 2.77 | 137.26 | -10.43 | 47.76 | 0.2453 | 1233.2 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 1.92 | 137.08 | -10.61 | 50.88 | 0.2382 | 725.0 | 569.8 | |
| 3.94 | -16.00 | 2.01 | -16.00 | 2.80 | 136.96 | -10.73 | 48.47 | 0.2496 | 957.2 | 999999 | |
| 1.23 | -16.00 | 0.63 | -16.00 | 3.02 | 136.95 | -10.74 | 47.85 | 0.2520 | 793.1 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 3.54 | 136.77 | -10.92 | 46.86 | 0.2604 | 806.0 | 698.2 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 2.33 | 136.65 | -11.04 | 50.73 | 0.2482 | 880.0 | 669.7 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 3.36 | 136.49 | -11.20 | 48.07 | 0.2618 | 852.0 | 665.4 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -2.00 | 136.25 | -11.43 | 67.71 | 0.2151 | 773.0 | 588.7 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 2.98 | 136.19 | -11.50 | 49.95 | 0.2613 | 792.0 | 666.0 | |
| 0.00 | 2.28 | 0.00 | 1.16 | -0.41 | 134.95 | -12.74 | 63.83 | 0.2469 | 950.0 | 685.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
