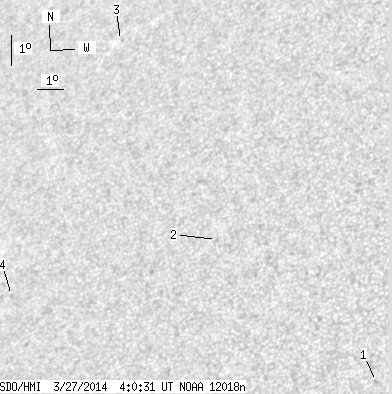

SDO HMI 2014-03-27 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.67 | 0.00 | 2.33 | 14.11 | 115.78 | -31.91 | 56.11 | 0.6138 | -250.0 | -109.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-27 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.66 | 0.00 | 0.96 | 10.98 | 122.90 | -24.79 | 54.40 | 0.5082 | -552.0 | -418.4 | |
| 0.00 | 0.35 | 0.00 | 0.22 | 15.86 | 116.70 | -30.98 | 53.31 | 0.6198 | -553.0 | -580.5 | |
| 0.00 | 0.35 | 0.00 | 0.25 | 22.83 | 111.40 | -36.29 | 49.06 | 0.7245 | -504.0 | -533.0 | |
| 0.00 | 1.31 | 0.00 | 0.90 | 14.60 | 109.18 | -38.51 | 60.57 | 0.6942 | 609.0 | 452.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
