SDO HMI 2014-03-27 05:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.55 | 319.98 | 28.33 | 166.20 | 10.09 | 143.90 | -3.24 | 10.27 | 0.3007 | -331.3 | -180.8 | |
|
previous
or next observation for the same group /

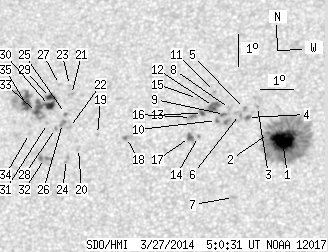

back to the solar disc SDO HMI 2014-03-27 05:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.76 | 183.27 | 15.38 | 94.71 | 9.72 | 146.23 | -0.91 | 3.17 | 0.2859 | -1401.2 | -445.1 | |
| 0.53 | -1.00 | 0.27 | -1.00 | 9.94 | 145.80 | -1.34 | 4.58 | 0.2900 | -697.3 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 10.78 | 145.46 | -1.68 | 5.44 | 0.3047 | -712.0 | -532.0 | |
| 0.53 | 1.75 | 0.27 | 0.91 | 10.44 | 145.16 | -1.98 | 6.55 | 0.2995 | -1117.0 | -843.3 | |
| 0.00 | 1.84 | 0.00 | 0.96 | 10.72 | 145.07 | -2.07 | 6.74 | 0.3043 | -772.0 | -628.0 | |
| 0.00 | 3.41 | 0.00 | 1.77 | 10.54 | 144.92 | -2.22 | 7.30 | 0.3015 | -826.0 | -823.8 | |
| 0.00 | 2.19 | 0.00 | 1.12 | 7.95 | 144.75 | -2.39 | 9.23 | 0.2589 | -1035.0 | -756.5 | |
| 0.00 | 1.84 | 0.00 | 0.96 | 10.73 | 144.61 | -2.53 | 8.20 | 0.3054 | -719.0 | -602.0 | |
| 0.00 | 2.98 | 0.00 | 1.55 | 10.54 | 144.46 | -2.68 | 8.78 | 0.3027 | -1056.0 | -878.2 | |
| 0.35 | 6.65 | 0.18 | 3.45 | 10.35 | 144.22 | -2.92 | 9.66 | 0.3002 | -1023.2 | -878.8 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 11.26 | 144.15 | -2.99 | 9.38 | 0.3154 | -741.0 | -544.2 | |
| 5.08 | 12.25 | 2.64 | 6.37 | 10.79 | 144.12 | -3.02 | 9.72 | 0.3077 | -1026.9 | -865.2 | |
| 1.14 | -12.00 | 0.59 | -12.00 | 10.58 | 143.79 | -3.35 | 10.91 | 0.3052 | -993.1 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 9.86 | 143.67 | -3.47 | 11.76 | 0.2937 | -831.0 | -718.4 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 11.05 | 143.63 | -3.51 | 11.10 | 0.3134 | -684.0 | -513.6 | |
| 0.00 | 4.46 | 0.00 | 2.32 | 10.45 | 143.46 | -3.69 | 12.05 | 0.3043 | -949.0 | -789.1 | |
| 1.93 | 5.43 | 1.00 | 2.81 | 9.83 | 143.40 | -3.74 | 12.68 | 0.2942 | -1051.6 | -740.7 | |
| 0.00 | 3.15 | 0.00 | 1.64 | 9.85 | 141.48 | -5.66 | 18.78 | 0.3032 | 1014.0 | 852.3 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 9.96 | 140.59 | -6.55 | 21.34 | 0.3100 | 735.0 | 521.2 | |
| 0.00 | 2.19 | 0.00 | 1.14 | 9.53 | 140.02 | -7.12 | 23.57 | 0.3070 | 683.0 | 527.0 | |
| 0.00 | 2.01 | 0.00 | 1.06 | 11.22 | 139.77 | -7.37 | 22.21 | 0.3345 | 652.0 | 550.1 | |
| 0.00 | 2.10 | 0.00 | 1.10 | 10.19 | 139.73 | -7.41 | 23.56 | 0.3190 | 774.0 | 599.6 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 11.51 | 139.70 | -7.44 | 22.07 | 0.3393 | 707.0 | 581.5 | |
| 0.00 | 3.06 | 0.00 | 1.59 | 9.19 | 139.66 | -7.48 | 25.10 | 0.3043 | 641.0 | 734.1 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 10.63 | 139.60 | -7.54 | 23.38 | 0.3265 | 894.0 | 793.9 | |
| 0.00 | 3.50 | 0.00 | 1.83 | 10.32 | 139.51 | -7.63 | 24.01 | 0.3224 | 1058.0 | 875.5 | |
| 0.00 | 1.23 | 0.00 | 0.65 | 11.55 | 139.39 | -7.75 | 22.85 | 0.3418 | 637.0 | 440.2 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 10.17 | 139.30 | -7.84 | 24.79 | 0.3215 | 928.0 | 761.1 | |
| 3.68 | 59.78 | 1.93 | 31.45 | 11.14 | 139.13 | -8.02 | 24.04 | 0.3374 | 865.8 | 625.3 | |
| 4.73 | -29.00 | 2.48 | -29.00 | 10.89 | 139.10 | -8.04 | 24.41 | 0.3338 | 1172.9 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 10.33 | 139.05 | -8.09 | 25.27 | 0.3257 | 865.0 | 753.9 | |
| 0.00 | 5.51 | 0.00 | 2.87 | 9.24 | 138.99 | -8.15 | 26.98 | 0.3099 | 792.0 | 821.6 | |
| 1.66 | -29.00 | 0.87 | -29.00 | 10.68 | 138.71 | -8.43 | 25.74 | 0.3334 | 1093.8 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 10.02 | 138.51 | -8.63 | 27.17 | 0.3251 | 793.0 | 590.9 | |
| 5.16 | -29.00 | 2.72 | -29.00 | 10.94 | 138.39 | -8.75 | 26.23 | 0.3394 | 993.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
