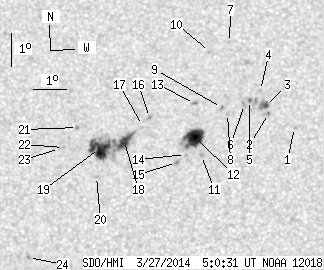

SDO HMI 2014-03-27 05:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.64 | 126.34 | 28.80 | 64.21 | 3.11 | 138.86 | -8.28 | 39.70 | 0.2264 | -14.6 | 23.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-27 05:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.62 | 3.34 | 143.05 | -4.09 | 22.07 | 0.1904 | -764.0 | -597.0 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 3.77 | 142.27 | -4.87 | 24.86 | 0.2026 | -1164.0 | -1003.4 | |
| 1.84 | 6.65 | 0.93 | 3.37 | 4.02 | 142.18 | -4.96 | 24.76 | 0.2070 | -1165.6 | -886.1 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 4.48 | 142.02 | -5.12 | 24.52 | 0.2153 | -843.0 | -579.0 | |
| 0.53 | 4.90 | 0.27 | 2.48 | 4.18 | 141.70 | -5.45 | 26.51 | 0.2130 | -902.2 | -731.2 | |
| 0.00 | 2.01 | 0.00 | 1.02 | 4.06 | 141.55 | -5.60 | 27.40 | 0.2123 | -943.0 | -759.9 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 5.96 | 141.08 | -6.06 | 25.52 | 0.2450 | -772.0 | -609.7 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 3.79 | 141.03 | -6.11 | 30.12 | 0.2125 | -848.0 | -673.9 | |
| 0.00 | 1.58 | 0.00 | 0.80 | 3.98 | 140.85 | -6.29 | 30.42 | 0.2168 | -958.0 | -834.7 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 5.69 | 140.48 | -6.67 | 28.21 | 0.2455 | -748.0 | -641.0 | |
| 0.00 | 1.58 | 0.00 | 0.80 | 2.53 | 140.26 | -6.88 | 36.63 | 0.2016 | -895.0 | -797.8 | |
| 22.06 | 29.85 | 11.18 | 15.12 | 3.08 | 140.04 | -7.10 | 35.90 | 0.2114 | -1103.4 | -575.1 | |
| 0.00 | 2.01 | 0.00 | 1.02 | 4.11 | 140.04 | -7.11 | 33.24 | 0.2261 | -967.0 | -766.9 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 2.56 | 139.77 | -7.37 | 38.40 | 0.2072 | -817.0 | -729.2 | |
| 0.00 | 1.84 | 0.00 | 0.93 | 2.33 | 139.50 | -7.64 | 40.15 | 0.2069 | -881.0 | -749.4 | |
| 0.00 | 1.84 | 0.00 | 0.94 | 3.71 | 138.68 | -8.46 | 39.07 | 0.2341 | 979.0 | 829.3 | |
| 0.00 | 0.35 | 0.00 | 0.18 | 3.47 | 138.47 | -8.67 | 40.42 | 0.2332 | 307.0 | 447.5 | |
| 10.15 | 59.69 | 5.17 | 30.43 | 2.99 | 137.93 | -9.22 | 43.52 | 0.2333 | 1127.6 | 709.1 | |
| 22.06 | -18.00 | 11.25 | -18.00 | 2.80 | 137.17 | -9.97 | 46.39 | 0.2400 | 1177.6 | 999999 | |
| 0.00 | 1.58 | 0.00 | 0.80 | 1.95 | 137.08 | -10.06 | 49.30 | 0.2313 | 736.0 | 552.4 | |
| 0.00 | 1.58 | 0.00 | 0.81 | 3.45 | 136.49 | -10.65 | 46.38 | 0.2560 | 917.0 | 702.7 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 2.85 | 136.07 | -11.07 | 49.24 | 0.2544 | 854.0 | 704.6 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 2.83 | 135.95 | -11.19 | 49.63 | 0.2556 | 577.0 | 487.6 | |
| 0.00 | 1.75 | 0.00 | 0.89 | -0.44 | 135.01 | -12.13 | 62.81 | 0.2373 | 1007.0 | 858.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
