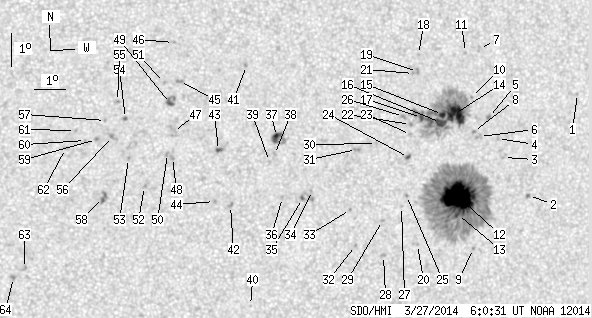

SDO HMI 2014-03-27 06:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.53 | 646.76 | 51.92 | 353.66 | -13.39 | 170.99 | 24.40 | 252.45 | 0.4229 | 597.1 | 338.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-27 06:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.55 | -10.83 | 176.06 | 29.46 | 259.96 | 0.4926 | 549.0 | 398.6 | |
| 0.00 | 1.93 | 0.00 | 1.09 | -13.98 | 174.72 | 28.12 | 253.12 | 0.4800 | 821.0 | 651.7 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -12.88 | 173.71 | 27.12 | 255.02 | 0.4619 | 677.0 | 533.7 | |
| 0.00 | 1.93 | 0.00 | 1.07 | -12.33 | 173.44 | 26.85 | 256.13 | 0.4564 | 701.0 | 571.6 | |
| 0.00 | 2.45 | 0.00 | 1.36 | -11.71 | 173.07 | 26.48 | 257.35 | 0.4493 | 822.0 | 646.1 | |
| 0.00 | 3.41 | 0.00 | 1.89 | -12.30 | 172.82 | 26.23 | 255.97 | 0.4470 | 764.0 | 632.8 | |
| 0.00 | 2.19 | 0.00 | 1.20 | -9.66 | 172.58 | 25.98 | 261.84 | 0.4381 | 543.0 | 513.7 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -12.16 | 172.60 | 26.01 | 256.20 | 0.4433 | 775.0 | 701.9 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -15.67 | 173.03 | 26.44 | 248.78 | 0.4617 | 727.0 | 639.6 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -11.14 | 172.44 | 25.84 | 258.43 | 0.4384 | 577.0 | 470.8 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -9.81 | 172.12 | 25.52 | 261.42 | 0.4312 | 770.0 | 572.8 | |
| 53.31 | 375.50 | 29.45 | 207.52 | -14.14 | 172.28 | 25.68 | 251.67 | 0.4446 | 1445.1 | 443.9 | |
| 1.40 | -12.00 | 0.77 | -12.00 | -14.68 | 172.35 | 25.75 | 250.52 | 0.4477 | 941.1 | 999999 | |
| 22.58 | 144.69 | 12.39 | 79.16 | -11.65 | 171.94 | 25.35 | 257.12 | 0.4319 | 1063.3 | 562.9 | |
| 3.06 | -14.00 | 1.68 | -14.00 | -11.70 | 171.51 | 24.91 | 256.85 | 0.4254 | 1327.9 | 999999 | |
| 6.13 | -14.00 | 3.35 | -14.00 | -11.94 | 171.46 | 24.87 | 256.26 | 0.4254 | 1018.4 | 999999 | |
| 2.01 | -14.00 | 1.10 | -14.00 | -11.82 | 170.81 | 24.22 | 256.29 | 0.4150 | 1052.2 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -9.94 | 170.55 | 23.96 | 260.76 | 0.4070 | 659.0 | 498.1 | |
| 0.00 | 2.45 | 0.00 | 1.33 | -10.45 | 170.56 | 23.97 | 259.52 | 0.4080 | 746.0 | 705.9 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -15.65 | 171.10 | 24.50 | 247.64 | 0.4336 | 854.0 | 725.4 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -10.52 | 170.43 | 23.84 | 259.32 | 0.4061 | 912.0 | 758.8 | |
| 0.00 | 1.49 | 0.00 | 0.81 | -12.05 | 170.47 | 23.87 | 255.60 | 0.4103 | 887.0 | 838.0 | |
| 0.00 | 2.01 | 0.00 | 1.09 | -12.35 | 170.49 | 23.90 | 254.90 | 0.4117 | 855.0 | 583.1 | |
| 0.96 | 2.54 | 0.52 | 1.38 | -13.04 | 170.49 | 23.90 | 253.25 | 0.4140 | -857.4 | -667.3 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -14.19 | 170.55 | 23.95 | 250.59 | 0.4191 | 963.0 | 843.6 | |
| 0.00 | 2.54 | 0.00 | 1.37 | -11.82 | 170.21 | 23.62 | 256.05 | 0.4058 | 905.0 | 753.1 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -14.53 | 170.42 | 23.82 | 249.73 | 0.4186 | 818.0 | 578.6 | |
| 0.00 | 2.01 | 0.00 | 1.10 | -16.03 | 169.99 | 23.39 | 245.99 | 0.4195 | 861.0 | 686.3 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -14.98 | 169.83 | 23.23 | 248.29 | 0.4119 | 923.0 | 756.5 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -12.67 | 169.39 | 22.79 | 253.57 | 0.3958 | 809.0 | 630.1 | |
| 0.00 | 2.45 | 0.00 | 1.32 | -12.88 | 168.74 | 22.15 | 252.68 | 0.3866 | 994.0 | 797.6 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -15.77 | 169.01 | 22.42 | 245.82 | 0.4040 | -814.0 | -686.1 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -14.69 | 168.72 | 22.13 | 248.17 | 0.3942 | 885.0 | 705.0 | |
| 0.00 | 0.44 | 0.00 | 0.23 | -14.17 | 167.41 | 20.81 | 248.46 | 0.3720 | -581.0 | -649.4 | |
| 0.53 | 7.97 | 0.28 | 4.24 | -14.42 | 167.10 | 20.51 | 247.56 | 0.3687 | -940.8 | -632.4 | |
| 0.00 | 1.40 | 0.00 | 0.74 | -14.42 | 166.44 | 19.85 | 247.00 | 0.3588 | -695.0 | -493.6 | |
| 2.28 | 12.78 | 1.20 | 6.74 | -12.59 | 166.09 | 19.50 | 251.70 | 0.3446 | -1035.8 | -611.6 | |
| 0.00 | 1.40 | 0.00 | 0.74 | -13.13 | 166.07 | 19.48 | 250.16 | 0.3467 | -701.0 | -604.7 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -13.35 | 165.93 | 19.33 | 249.44 | 0.3455 | -982.0 | -797.6 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -17.73 | 165.72 | 19.13 | 237.87 | 0.3701 | 641.0 | 524.1 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -10.50 | 164.98 | 18.38 | 257.16 | 0.3195 | 797.0 | 640.5 | |
| 0.00 | 2.54 | 0.00 | 1.33 | -14.72 | 164.77 | 18.17 | 244.52 | 0.3357 | 801.0 | 685.6 | |
| 0.96 | 2.63 | 0.50 | 1.37 | -13.08 | 164.25 | 17.66 | 248.73 | 0.3185 | -978.3 | -834.4 | |
| 0.00 | 1.40 | 0.00 | 0.73 | -14.62 | 164.24 | 17.65 | 244.22 | 0.3272 | 844.0 | 717.9 | |
| 0.00 | 2.80 | 0.00 | 1.45 | -11.05 | 162.87 | 16.28 | 253.98 | 0.2875 | -809.0 | -578.1 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -9.89 | 162.62 | 16.03 | 257.84 | 0.2795 | 751.0 | 625.6 | |
| 0.00 | 6.39 | 0.00 | 3.31 | -12.55 | 162.77 | 16.18 | 248.88 | 0.2928 | -755.0 | -712.7 | |
| 0.00 | 2.28 | 0.00 | 1.18 | -13.34 | 162.79 | 16.20 | 246.39 | 0.2975 | -894.0 | -731.1 | |
| 1.31 | 7.53 | 0.68 | 3.89 | -11.72 | 162.63 | 16.03 | 251.50 | 0.2864 | -1098.7 | -844.2 | |
| 0.00 | 1.93 | 0.00 | 1.00 | -13.22 | 162.62 | 16.03 | 246.56 | 0.2943 | -1032.0 | -761.1 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -11.09 | 162.40 | 15.81 | 253.44 | 0.2801 | -817.0 | -570.9 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -14.24 | 161.96 | 15.36 | 242.48 | 0.2908 | -738.0 | -631.9 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -13.41 | 161.39 | 14.80 | 244.38 | 0.2768 | -803.0 | -667.9 | |
| 0.00 | 1.75 | 0.00 | 0.90 | -12.21 | 161.23 | 14.63 | 248.30 | 0.2669 | -956.0 | -820.5 | |
| 0.00 | 1.58 | 0.00 | 0.81 | -11.71 | 160.95 | 14.35 | 249.79 | 0.2598 | -862.0 | -651.4 | |
| 0.00 | 3.85 | 0.00 | 1.98 | -12.76 | 160.85 | 14.25 | 245.85 | 0.2643 | -1108.0 | -866.2 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -12.29 | 160.60 | 14.00 | 247.22 | 0.2576 | -798.0 | -619.3 | |
| 0.00 | 5.51 | 0.00 | 2.84 | -14.61 | 160.67 | 14.08 | 239.35 | 0.2748 | -931.0 | -836.8 | |
| 0.00 | 1.49 | 0.00 | 0.76 | -12.87 | 160.35 | 13.75 | 244.77 | 0.2573 | -1022.0 | -821.6 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -12.90 | 160.00 | 13.41 | 244.11 | 0.2524 | -840.0 | -669.3 | |
| 0.00 | 1.40 | 0.00 | 0.72 | -12.61 | 159.67 | 13.08 | 244.67 | 0.2454 | -800.0 | -639.6 | |
| 0.00 | 2.19 | 0.00 | 1.12 | -13.16 | 159.38 | 12.79 | 242.15 | 0.2449 | -859.0 | -511.7 | |
| 0.00 | 2.10 | 0.00 | 1.08 | -16.82 | 158.29 | 11.70 | 227.72 | 0.2635 | -787.0 | -714.9 | |
| 0.00 | 2.28 | 0.00 | 1.17 | -17.10 | 157.96 | 11.36 | 226.11 | 0.2625 | -932.0 | -767.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
