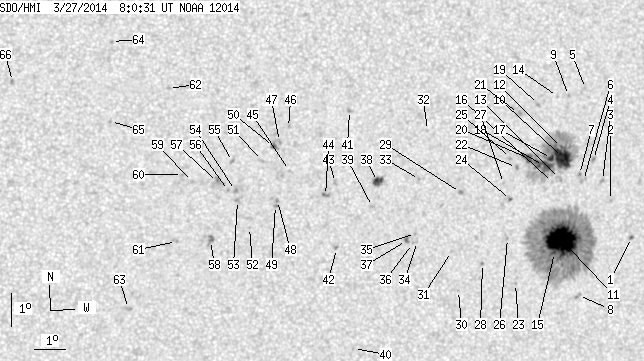

SDO HMI 2014-03-27 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.02 | 632.45 | 57.11 | 349.29 | -13.38 | 171.10 | 25.60 | 253.07 | 0.4407 | 525.8 | 326.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-27 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.61 | 1.66 | 0.35 | 0.95 | -13.94 | 174.74 | 29.24 | 253.62 | 0.4962 | 701.0 | 561.6 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -12.87 | 173.87 | 28.37 | 255.47 | 0.4804 | 586.0 | 473.2 | |
| 0.00 | 1.58 | 0.00 | 0.89 | -12.29 | 173.52 | 28.02 | 256.57 | 0.4738 | 792.0 | 642.1 | |
| 0.00 | 1.93 | 0.00 | 1.08 | -11.68 | 173.14 | 27.64 | 257.76 | 0.4668 | 765.0 | 662.5 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -9.57 | 172.66 | 27.16 | 262.22 | 0.4562 | 606.0 | 402.6 | |
| 0.00 | 3.33 | 0.00 | 1.86 | -12.32 | 172.86 | 27.36 | 256.29 | 0.4641 | 703.0 | 558.9 | |
| 0.00 | 1.66 | 0.00 | 0.93 | -12.15 | 172.71 | 27.21 | 256.61 | 0.4614 | 798.0 | 669.3 | |
| 0.00 | 2.80 | 0.00 | 1.58 | -15.79 | 173.14 | 27.64 | 249.20 | 0.4795 | 822.0 | 630.9 | |
| 0.00 | 1.31 | 0.00 | 0.73 | -9.81 | 172.10 | 26.60 | 261.60 | 0.4479 | 807.0 | 677.3 | |
| 22.67 | 142.59 | 12.57 | 78.81 | -11.67 | 172.07 | 26.57 | 257.45 | 0.4507 | 1064.4 | 498.0 | |
| 52.17 | 379.80 | 29.10 | 211.88 | -14.13 | 172.32 | 26.82 | 252.22 | 0.4614 | 1447.4 | 426.7 | |
| 0.70 | -10.00 | 0.39 | -10.00 | -11.37 | 172.01 | 26.51 | 258.09 | 0.4491 | 860.4 | 999999 | |
| 0.00 | 3.15 | 0.00 | 1.75 | -12.30 | 172.04 | 26.54 | 256.04 | 0.4517 | -141.0 | -144.8 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -9.85 | 171.73 | 26.23 | 261.43 | 0.4423 | 683.0 | 553.4 | |
| 2.71 | -11.00 | 1.51 | -11.00 | -14.54 | 172.13 | 26.63 | 251.27 | 0.4600 | 1158.3 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -12.44 | 171.81 | 26.31 | 255.67 | 0.4486 | 499.0 | 342.5 | |
| 2.80 | -10.00 | 1.55 | -10.00 | -11.72 | 171.70 | 26.20 | 257.22 | 0.4452 | 1337.6 | 999999 | |
| 10.68 | -10.00 | 5.89 | -10.00 | -11.94 | 171.45 | 25.95 | 256.64 | 0.4419 | 1012.8 | 999999 | |
| 0.00 | 1.49 | 0.00 | 0.82 | -10.12 | 171.11 | 25.61 | 260.68 | 0.4331 | 856.0 | 721.9 | |
| 4.29 | -10.00 | 2.36 | -10.00 | -11.76 | 170.93 | 25.42 | 256.87 | 0.4334 | 1103.8 | 999999 | |
| 0.00 | 3.24 | 0.00 | 1.77 | -10.43 | 170.47 | 24.97 | 259.82 | 0.4235 | 872.0 | 773.8 | |
| 0.00 | 1.49 | 0.00 | 0.82 | -12.05 | 170.55 | 25.05 | 256.07 | 0.4284 | 903.0 | 799.7 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -15.54 | 170.91 | 25.41 | 248.45 | 0.4464 | 875.0 | 753.4 | |
| 0.53 | 1.66 | 0.29 | 0.91 | -13.02 | 170.44 | 24.94 | 253.80 | 0.4297 | -714.7 | -644.0 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -11.79 | 170.32 | 24.82 | 256.59 | 0.4242 | 922.0 | 702.5 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -14.19 | 170.47 | 24.97 | 251.14 | 0.4343 | 862.0 | 705.1 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -12.55 | 170.16 | 24.66 | 254.75 | 0.4239 | 753.0 | 589.9 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -14.99 | 169.72 | 24.22 | 248.91 | 0.4265 | 950.0 | 754.5 | |
| 0.00 | 1.93 | 0.00 | 1.04 | -12.88 | 168.75 | 23.25 | 253.26 | 0.4035 | 911.0 | 821.8 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -15.84 | 169.00 | 23.50 | 246.49 | 0.4202 | -732.0 | -575.1 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -14.67 | 168.63 | 23.13 | 248.92 | 0.4090 | 764.0 | 575.4 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -11.07 | 167.50 | 21.99 | 257.23 | 0.3785 | 766.0 | 530.5 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -12.55 | 167.35 | 21.85 | 253.32 | 0.3810 | -708.0 | -558.0 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -14.42 | 167.47 | 21.97 | 248.70 | 0.3905 | -496.0 | -386.1 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -14.18 | 167.38 | 21.87 | 249.22 | 0.3880 | -719.0 | -556.9 | |
| 0.00 | 0.53 | 0.00 | 0.28 | -14.49 | 167.31 | 21.81 | 248.41 | 0.3885 | -519.0 | -436.2 | |
| 0.00 | 2.98 | 0.00 | 1.60 | -14.40 | 167.10 | 21.60 | 248.46 | 0.3850 | -971.0 | -814.3 | |
| 4.81 | 7.35 | 2.55 | 3.90 | -12.67 | 165.98 | 20.48 | 252.15 | 0.3602 | -1009.9 | -709.8 | |
| 0.00 | 1.75 | 0.00 | 0.93 | -13.42 | 165.88 | 20.38 | 250.05 | 0.3620 | -921.0 | -716.2 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -17.74 | 165.69 | 20.19 | 239.06 | 0.3850 | 789.0 | 597.0 | |
| 0.00 | 1.75 | 0.00 | 0.92 | -10.57 | 164.92 | 19.42 | 257.44 | 0.3363 | 822.0 | 723.0 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -14.73 | 164.82 | 19.32 | 245.64 | 0.3528 | 861.0 | 809.3 | |
| 0.00 | 2.71 | 0.00 | 1.43 | -12.75 | 164.62 | 19.12 | 250.94 | 0.3395 | -654.0 | -391.2 | |
| 0.00 | 2.28 | 0.00 | 1.20 | -13.15 | 164.33 | 18.83 | 249.55 | 0.3368 | -1006.0 | -835.6 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -12.44 | 163.11 | 17.61 | 250.59 | 0.3146 | -657.0 | -543.4 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -11.15 | 163.00 | 17.49 | 254.53 | 0.3074 | -695.0 | -585.7 | |
| 0.00 | 1.75 | 0.00 | 0.91 | -11.58 | 162.73 | 17.23 | 252.96 | 0.3049 | -839.0 | -754.5 | |
| 0.00 | 1.66 | 0.00 | 0.87 | -13.36 | 162.79 | 17.29 | 247.50 | 0.3144 | -890.0 | -740.5 | |
| 0.00 | 1.66 | 0.00 | 0.87 | -13.51 | 162.74 | 17.24 | 246.99 | 0.3144 | -768.0 | -661.2 | |
| 1.05 | 3.85 | 0.55 | 2.00 | -11.74 | 162.55 | 17.05 | 252.31 | 0.3027 | -1073.2 | -764.2 | |
| 0.00 | 2.01 | 0.00 | 1.04 | -12.17 | 162.23 | 16.73 | 250.64 | 0.2995 | -775.0 | -698.7 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -14.20 | 161.95 | 16.45 | 244.01 | 0.3068 | -745.0 | -618.8 | |
| 0.00 | 2.28 | 0.00 | 1.18 | -13.40 | 161.51 | 16.01 | 245.95 | 0.2951 | -795.0 | -668.8 | |
| 0.00 | 2.45 | 0.00 | 1.27 | -13.10 | 161.42 | 15.92 | 246.80 | 0.2920 | -929.0 | -739.2 | |
| 0.00 | 2.19 | 0.00 | 1.13 | -12.23 | 161.27 | 15.77 | 249.49 | 0.2849 | -995.0 | -725.8 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -13.10 | 161.20 | 15.70 | 246.52 | 0.2887 | -870.0 | -668.5 | |
| 0.00 | 6.83 | 0.00 | 3.52 | -12.87 | 160.84 | 15.34 | 246.84 | 0.2817 | -927.0 | -743.7 | |
| 0.00 | 4.99 | 0.00 | 2.58 | -14.63 | 160.73 | 15.23 | 241.05 | 0.2917 | -1064.0 | -821.8 | |
| 0.00 | 1.66 | 0.00 | 0.86 | -12.87 | 160.04 | 14.54 | 245.84 | 0.2695 | -853.0 | -701.5 | |
| 0.00 | 1.66 | 0.00 | 0.85 | -12.67 | 159.71 | 14.21 | 246.11 | 0.2632 | -860.0 | -676.2 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -14.69 | 159.65 | 14.14 | 239.17 | 0.2765 | -839.0 | -749.0 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -10.10 | 159.15 | 13.65 | 255.24 | 0.2413 | -708.0 | -560.3 | |
| 0.00 | 3.24 | 0.00 | 1.67 | -16.75 | 158.25 | 12.75 | 230.20 | 0.2762 | -766.0 | -714.8 | |
| 0.00 | 1.40 | 0.00 | 0.71 | -8.73 | 157.33 | 11.83 | 259.75 | 0.2068 | -829.0 | -662.3 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -11.13 | 157.38 | 11.88 | 248.79 | 0.2177 | -893.0 | -673.1 | |
| 0.00 | 1.93 | 0.00 | 0.97 | -9.99 | 154.31 | 8.81 | 249.15 | 0.1622 | -823.0 | -622.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
