SDO HMI 2014-03-27 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 35.04 | 0.00 | 18.84 | -12.73 | 125.37 | -20.14 | 107.95 | 0.3547 | 426.3 | 409.7 | |
|
previous
or next observation for the same group /

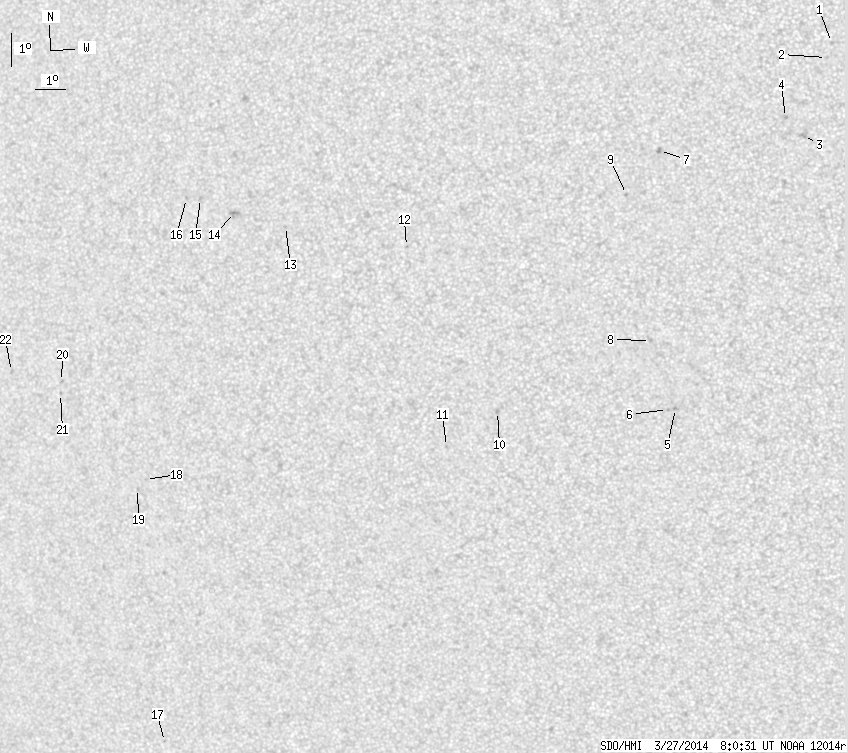

back to the solar disc SDO HMI 2014-03-27 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.58 | 0.00 | 0.79 | -6.17 | 138.36 | -7.14 | 85.51 | 0.1246 | 821.0 | 646.1 | |
| 0.00 | 1.05 | 0.00 | 0.52 | -6.61 | 138.20 | -7.30 | 89.15 | 0.1268 | 907.0 | 662.7 | |
| 0.00 | 3.85 | 0.00 | 1.93 | -8.94 | 137.45 | -8.05 | 105.68 | 0.1443 | 894.0 | 672.1 | |
| 0.00 | 1.49 | 0.00 | 0.75 | -8.39 | 136.92 | -8.59 | 101.27 | 0.1513 | 925.0 | 824.3 | |
| 0.00 | 1.66 | 0.00 | 0.86 | -17.07 | 133.10 | -12.40 | 131.44 | 0.2751 | 929.0 | 732.1 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -17.09 | 132.84 | -12.66 | 130.95 | 0.2786 | 716.0 | 508.6 | |
| 0.00 | 2.54 | 0.00 | 1.29 | -9.29 | 133.01 | -12.49 | 102.31 | 0.2195 | 1021.0 | 786.1 | |
| 0.00 | 1.40 | 0.00 | 0.72 | -14.99 | 132.44 | -13.06 | 123.73 | 0.2637 | 901.0 | 710.8 | |
| 0.00 | 1.40 | 0.00 | 0.71 | -10.58 | 131.92 | -13.58 | 106.77 | 0.2421 | 964.0 | 726.9 | |
| 0.00 | 2.19 | 0.00 | 1.16 | -16.98 | 127.33 | -18.17 | 121.49 | 0.3513 | 860.0 | 616.2 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -17.98 | 125.52 | -19.98 | 121.74 | 0.3837 | 773.0 | 610.8 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -11.89 | 124.81 | -20.69 | 105.60 | 0.3605 | 779.0 | 688.2 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -11.11 | 120.87 | -24.63 | 101.88 | 0.4196 | 819.0 | 613.1 | |
| 0.00 | 3.68 | 0.00 | 2.03 | -10.60 | 119.20 | -26.30 | 100.24 | 0.4445 | 843.0 | 726.1 | |
| 0.00 | 1.93 | 0.00 | 1.07 | -10.12 | 118.08 | -27.42 | 98.95 | 0.4608 | 863.0 | 683.0 | |
| 0.00 | 1.31 | 0.00 | 0.74 | -10.09 | 117.60 | -27.90 | 98.81 | 0.4681 | 697.0 | 544.6 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -26.60 | 113.59 | -31.91 | 126.91 | 0.5934 | -696.0 | -563.3 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -18.46 | 114.94 | -30.56 | 114.33 | 0.5314 | -755.0 | -614.8 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -18.72 | 114.59 | -30.91 | 114.61 | 0.5372 | -598.0 | -457.0 | |
| 0.00 | 1.23 | 0.00 | 0.73 | -15.31 | 112.44 | -33.06 | 107.60 | 0.5541 | -884.0 | -715.6 | |
| 0.00 | 1.49 | 0.00 | 0.89 | -15.67 | 112.34 | -33.16 | 108.20 | 0.5566 | -670.0 | -500.9 | |
| 0.00 | 1.58 | 0.00 | 0.95 | -14.89 | 110.65 | -34.86 | 106.31 | 0.5777 | -730.0 | -555.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
