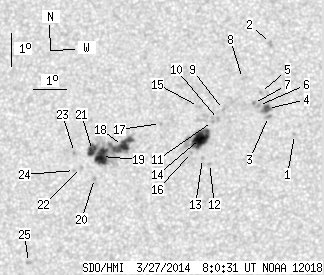

SDO HMI 2014-03-27 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.02 | 130.45 | 28.38 | 66.06 | 3.11 | 138.88 | -6.62 | 33.63 | 0.2097 | -25.9 | 93.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-27 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.62 | 3.28 | 143.06 | -2.44 | 13.69 | 0.1805 | -906.0 | -684.8 | |
| 0.00 | 2.89 | 0.00 | 1.47 | 6.06 | 142.33 | -3.17 | 13.91 | 0.2298 | -831.0 | -698.4 | |
| 0.00 | 2.45 | 0.00 | 1.24 | 3.83 | 142.28 | -3.22 | 16.95 | 0.1932 | -1109.0 | -782.5 | |
| 2.98 | 6.39 | 1.50 | 3.23 | 4.08 | 142.25 | -3.25 | 16.74 | 0.1974 | -1116.8 | -862.0 | |
| 0.00 | 0.70 | 0.00 | 0.35 | 4.57 | 142.04 | -3.46 | 17.04 | 0.2065 | -763.0 | -620.9 | |
| 0.00 | 1.66 | 0.00 | 0.84 | 4.17 | 141.98 | -3.52 | 17.90 | 0.2003 | -1138.0 | -799.3 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 4.23 | 141.83 | -3.67 | 18.52 | 0.2021 | -942.0 | -796.3 | |
| 0.00 | 0.70 | 0.00 | 0.36 | 5.00 | 141.49 | -4.01 | 18.86 | 0.2164 | -871.0 | -647.8 | |
| 0.00 | 0.61 | 0.00 | 0.31 | 4.06 | 140.93 | -4.58 | 22.98 | 0.2048 | -998.0 | -714.1 | |
| 0.00 | 2.01 | 0.00 | 1.02 | 3.76 | 140.78 | -4.72 | 24.25 | 0.2010 | -875.0 | -713.3 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 3.70 | 140.60 | -4.90 | 25.19 | 0.2014 | -875.0 | -752.8 | |
| 0.00 | 1.58 | 0.00 | 0.79 | 2.43 | 140.51 | -4.99 | 28.59 | 0.1824 | -927.0 | -683.4 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 2.58 | 140.30 | -5.20 | 29.19 | 0.1865 | -928.0 | -748.5 | |
| 19.69 | 29.50 | 9.95 | 14.90 | 3.19 | 140.24 | -5.26 | 27.96 | 0.1962 | -1163.1 | -434.6 | |
| 0.00 | 2.28 | 0.00 | 1.15 | 4.16 | 140.17 | -5.33 | 26.08 | 0.2116 | -875.0 | -593.5 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 2.77 | 139.97 | -5.53 | 30.24 | 0.1921 | -919.0 | -726.7 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 3.66 | 139.03 | -6.47 | 31.94 | 0.2135 | 856.0 | 637.0 | |
| 12.69 | 65.39 | 6.44 | 33.18 | 3.01 | 137.89 | -7.61 | 38.07 | 0.2156 | 1085.8 | 707.5 | |
| 14.18 | -18.00 | 7.20 | -18.00 | 2.69 | 137.25 | -8.25 | 41.28 | 0.2182 | 1290.8 | 999999 | |
| 0.00 | 1.58 | 0.00 | 0.80 | 2.02 | 137.05 | -8.46 | 44.09 | 0.2122 | 934.0 | 710.2 | |
| 6.48 | -18.00 | 3.29 | -18.00 | 2.87 | 136.98 | -8.52 | 41.66 | 0.2236 | 957.7 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.67 | 2.36 | 136.65 | -8.85 | 44.31 | 0.2211 | 892.0 | 619.8 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 2.82 | 136.43 | -9.07 | 43.59 | 0.2293 | 1001.0 | 849.4 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 2.28 | 136.44 | -9.06 | 45.27 | 0.2225 | 884.0 | 659.8 | |
| 0.00 | 2.10 | 0.00 | 1.06 | -0.47 | 135.05 | -10.45 | 59.26 | 0.2121 | 949.0 | 751.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
