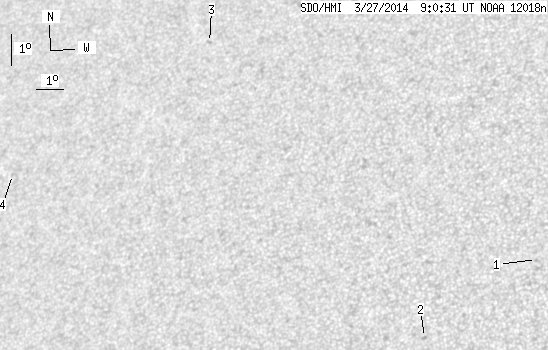

SDO HMI 2014-03-27 09:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.73 | 0.00 | 2.99 | 13.41 | 113.13 | -31.83 | 57.14 | 0.6064 | 352.8 | 482.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-27 09:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.44 | 0.00 | 0.25 | 10.79 | 123.23 | -21.72 | 51.08 | 0.4692 | -674.0 | -581.6 | |
| 0.00 | 1.84 | 0.00 | 1.05 | 8.54 | 119.69 | -25.27 | 59.07 | 0.4941 | 825.0 | 639.2 | |
| 0.00 | 1.40 | 0.00 | 0.94 | 18.49 | 110.65 | -34.31 | 52.69 | 0.6744 | 731.0 | 629.1 | |
| 0.00 | 1.05 | 0.00 | 0.75 | 14.75 | 103.70 | -41.26 | 62.03 | 0.7243 | 529.0 | 430.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
