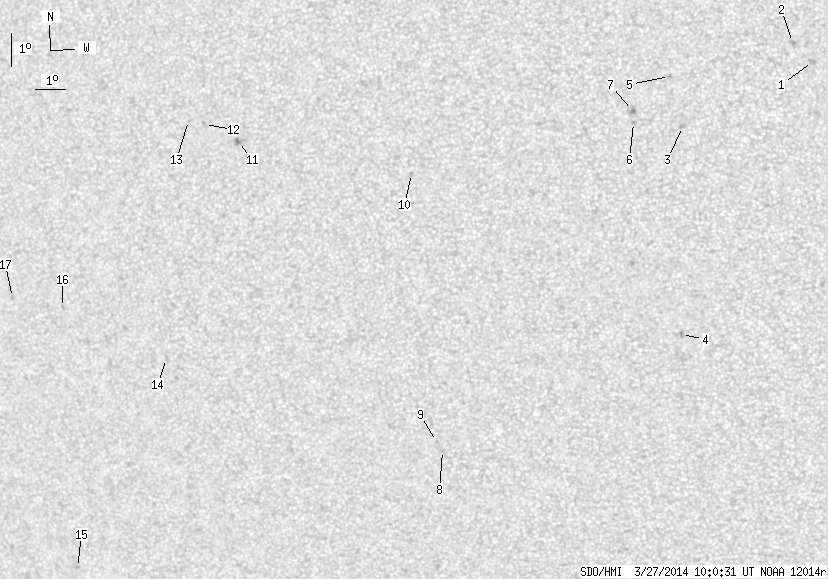

SDO HMI 2014-03-27 10:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 35.82 | 0.00 | 19.12 | -12.64 | 125.19 | -19.21 | 109.10 | 0.3390 | 487.8 | 438.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-27 10:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.68 | 0.00 | 1.84 | -8.92 | 137.52 | -6.88 | 107.94 | 0.1250 | 846.0 | 714.9 | |
| 0.00 | 2.63 | 0.00 | 1.31 | -8.34 | 136.92 | -7.48 | 102.43 | 0.1325 | 1017.0 | 803.6 | |
| 0.00 | 3.24 | 0.00 | 1.64 | -10.79 | 133.47 | -10.93 | 111.18 | 0.2007 | 1038.0 | 761.8 | |
| 0.00 | 2.01 | 0.00 | 1.03 | -17.06 | 133.13 | -11.28 | 134.03 | 0.2612 | 892.0 | 738.0 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -9.28 | 133.13 | -11.28 | 103.42 | 0.1994 | 902.0 | 755.2 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -10.63 | 131.96 | -12.45 | 108.30 | 0.2242 | 855.0 | 734.8 | |
| 0.00 | 3.76 | 0.00 | 1.91 | -10.27 | 131.94 | -12.47 | 106.72 | 0.2228 | 1003.0 | 808.5 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -20.36 | 124.98 | -19.43 | 127.72 | 0.3960 | 842.0 | 652.2 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -20.07 | 124.81 | -19.60 | 126.90 | 0.3956 | 757.0 | 593.8 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -11.93 | 124.83 | -19.58 | 106.41 | 0.3433 | 777.0 | 590.8 | |
| 0.00 | 5.08 | 0.00 | 2.78 | -10.71 | 119.22 | -25.19 | 100.80 | 0.4276 | 929.0 | 739.7 | |
| 0.00 | 2.45 | 0.00 | 1.35 | -10.14 | 118.12 | -26.29 | 99.23 | 0.4436 | 694.0 | 623.1 | |
| 0.00 | 0.44 | 0.00 | 0.24 | -9.99 | 117.59 | -26.82 | 98.80 | 0.4515 | 655.0 | 567.4 | |
| 0.00 | 2.45 | 0.00 | 1.40 | -17.10 | 115.91 | -28.50 | 112.94 | 0.4972 | -800.0 | -545.4 | |
| 0.00 | 1.49 | 0.00 | 0.91 | -23.30 | 111.22 | -33.19 | 121.01 | 0.5889 | -729.0 | -518.1 | |
| 0.00 | 1.58 | 0.00 | 0.92 | -15.35 | 112.45 | -31.95 | 108.05 | 0.5389 | -761.0 | -695.6 | |
| 0.00 | 1.75 | 0.00 | 1.05 | -14.93 | 110.68 | -33.73 | 106.72 | 0.5624 | -625.0 | -508.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
