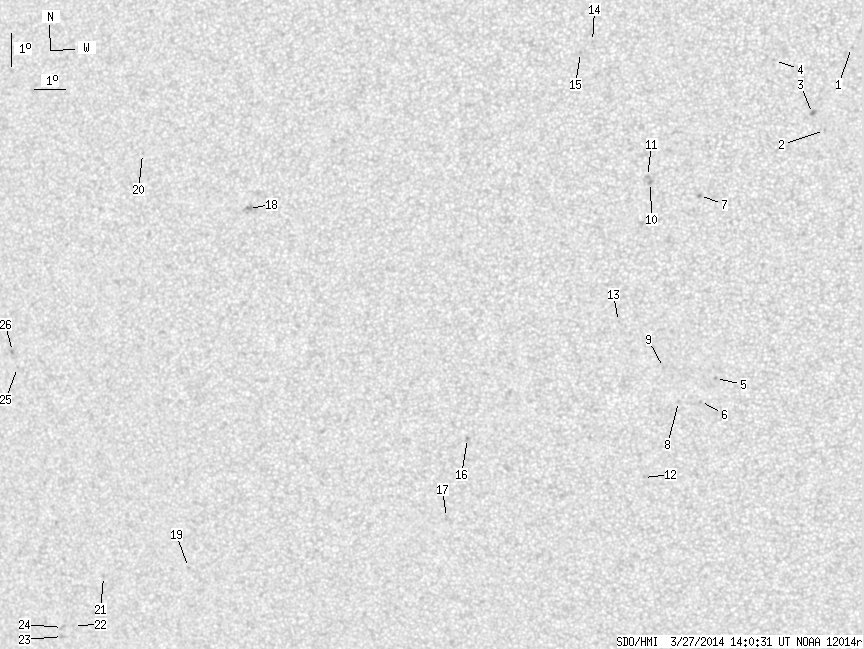

SDO HMI 2014-03-27 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 36.71 | 0.00 | 19.72 | -15.03 | 123.70 | -18.51 | 115.38 | 0.3428 | 439.5 | 304.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-27 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.39 | -6.43 | 138.22 | -4.00 | 85.51 | 0.0698 | 735.0 | 461.4 | |
| 0.00 | 1.22 | 0.00 | 0.61 | -8.91 | 137.37 | -4.84 | 114.41 | 0.0920 | 857.0 | 640.0 | |
| 0.00 | 2.10 | 0.00 | 1.04 | -8.39 | 137.01 | -5.20 | 107.91 | 0.0947 | 1053.0 | 883.0 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -6.79 | 135.89 | -6.33 | 90.68 | 0.1100 | 805.0 | 642.2 | |
| 0.00 | 1.22 | 0.00 | 0.62 | -16.32 | 133.80 | -8.42 | 139.97 | 0.2194 | 900.0 | 688.3 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -17.01 | 133.29 | -8.92 | 140.39 | 0.2337 | 923.0 | 760.5 | |
| 0.00 | 1.49 | 0.00 | 0.75 | -10.80 | 133.51 | -8.71 | 115.74 | 0.1658 | 1100.0 | 912.5 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -16.99 | 132.60 | -9.62 | 138.28 | 0.2412 | 857.0 | 623.5 | |
| 0.00 | 0.87 | 0.00 | 0.45 | -15.95 | 132.18 | -10.04 | 133.93 | 0.2338 | 662.0 | 480.9 | |
| 0.00 | 2.19 | 0.00 | 1.10 | -10.38 | 132.01 | -10.20 | 110.42 | 0.1868 | 1055.0 | 801.4 | |
| 0.00 | 1.57 | 0.00 | 0.79 | -10.19 | 131.92 | -10.29 | 109.35 | 0.1872 | 872.0 | 760.4 | |
| 0.00 | 0.52 | 0.00 | 0.27 | -19.29 | 131.34 | -10.88 | 140.86 | 0.2834 | 720.0 | 571.5 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -14.53 | 130.83 | -11.38 | 125.73 | 0.2364 | 843.0 | 782.2 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -6.12 | 130.35 | -11.86 | 87.55 | 0.2055 | 731.0 | 603.4 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -6.44 | 129.97 | -12.24 | 89.18 | 0.2117 | 849.0 | 618.4 | |
| 0.00 | 2.01 | 0.00 | 1.06 | -17.94 | 125.73 | -16.48 | 126.31 | 0.3365 | 870.0 | 673.1 | |
| 0.00 | 2.01 | 0.00 | 1.07 | -20.33 | 124.78 | -17.44 | 130.46 | 0.3709 | 711.0 | 585.7 | |
| 0.00 | 3.94 | 0.00 | 2.12 | -10.72 | 119.20 | -23.02 | 101.51 | 0.3937 | 976.0 | 795.6 | |
| 0.00 | 1.31 | 0.00 | 0.75 | -21.48 | 115.67 | -26.54 | 122.57 | 0.4954 | -725.0 | -581.9 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -8.90 | 115.80 | -26.41 | 96.42 | 0.4441 | 628.0 | 477.7 | |
| 0.00 | 1.22 | 0.00 | 0.72 | -21.59 | 112.55 | -29.67 | 120.43 | 0.5359 | -619.0 | -549.3 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -23.04 | 111.07 | -31.15 | 121.87 | 0.5626 | -603.0 | -546.8 | |
| 0.00 | 2.54 | 0.00 | 1.53 | -23.35 | 110.56 | -31.65 | 122.05 | 0.5706 | -656.0 | -463.8 | |
| 0.00 | 2.36 | 0.00 | 1.42 | -23.08 | 110.64 | -31.58 | 121.65 | 0.5681 | -628.0 | -605.3 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -15.06 | 110.68 | -31.53 | 107.69 | 0.5322 | -753.0 | -606.8 | |
| 0.00 | 1.57 | 0.00 | 0.92 | -14.57 | 110.58 | -31.63 | 106.75 | 0.5322 | -735.0 | -626.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
