SDO HMI 2014-03-27 19:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.61 | 0.00 | 5.63 | 12.42 | 115.08 | -24.37 | 50.46 | 0.5121 | -60.6 | -33.0 | |
|
previous
or next observation for the same group /

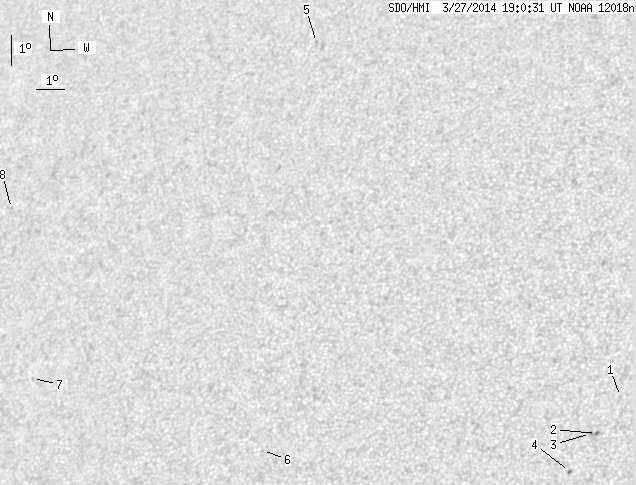

back to the solar disc SDO HMI 2014-03-27 19:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.38 | 10.85 | 123.19 | -16.26 | 42.70 | 0.4073 | -787.0 | -499.1 | |
| 0.00 | 1.57 | 0.00 | 0.85 | 9.72 | 122.49 | -16.96 | 45.90 | 0.4022 | -939.0 | -835.1 | |
| 0.00 | 1.40 | 0.00 | 0.76 | 9.73 | 122.30 | -17.15 | 46.21 | 0.4045 | -779.0 | -668.8 | |
| 0.00 | 2.10 | 0.00 | 1.13 | 8.57 | 121.69 | -17.76 | 49.37 | 0.3993 | 922.0 | 638.3 | |
| 0.00 | 0.96 | 0.00 | 0.63 | 22.98 | 111.35 | -28.11 | 41.91 | 0.6518 | -524.0 | -417.7 | |
| 0.00 | 0.87 | 0.00 | 0.51 | 9.72 | 111.50 | -27.96 | 59.69 | 0.5374 | 580.0 | 331.1 | |
| 0.00 | 1.05 | 0.00 | 0.69 | 12.55 | 102.83 | -36.63 | 62.12 | 0.6611 | 539.0 | 460.5 | |
| 0.00 | 0.96 | 0.00 | 0.68 | 18.16 | 100.81 | -38.64 | 56.22 | 0.7162 | 503.0 | 398.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
