SDO HMI 2014-03-27 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.99 | 130.83 | 22.13 | 65.89 | 3.31 | 138.98 | 0.07 | 0.17 | 0.1789 | 132.9 | -78.3 | |
|
previous
or next observation for the same group /

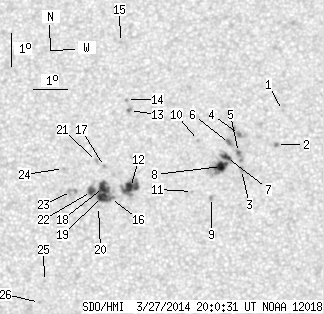

back to the solar disc SDO HMI 2014-03-27 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.49 | 5.21 | 142.62 | 3.72 | 342.69 | 0.2181 | -820.0 | -636.0 | |
| 0.00 | 2.19 | 0.00 | 1.11 | 4.17 | 142.44 | 3.53 | 342.03 | 0.2001 | -1109.0 | -930.8 | |
| 0.00 | 2.80 | 0.00 | 1.41 | 3.40 | 141.38 | 2.48 | 346.25 | 0.1825 | -990.0 | -901.2 | |
| 0.61 | 8.40 | 0.31 | 4.25 | 4.47 | 141.33 | 2.42 | 347.79 | 0.2002 | -1072.9 | -775.3 | |
| 0.79 | 4.81 | 0.40 | 2.43 | 3.92 | 141.30 | 2.39 | 347.34 | 0.1908 | -1025.2 | -905.3 | |
| 0.00 | 4.11 | 0.00 | 2.08 | 4.19 | 141.03 | 2.12 | 349.00 | 0.1945 | -1033.0 | -790.1 | |
| 3.76 | 30.00 | 1.90 | 15.11 | 3.77 | 140.94 | 2.03 | 349.05 | 0.1870 | -1115.0 | -644.5 | |
| 8.05 | -7.00 | 4.05 | -7.00 | 3.49 | 140.78 | 1.88 | 349.58 | 0.1819 | -1277.1 | 999999 | |
| 0.00 | 1.75 | 0.00 | 0.88 | 2.55 | 140.48 | 1.58 | 350.36 | 0.1650 | -981.0 | -828.3 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 4.28 | 140.10 | 1.19 | 353.82 | 0.1937 | -801.0 | -623.2 | |
| 0.00 | 0.61 | 0.00 | 0.31 | 2.73 | 139.91 | 1.01 | 353.91 | 0.1667 | 536.0 | 401.4 | |
| 10.06 | 23.35 | 5.05 | 11.73 | 2.86 | 138.06 | -0.85 | 5.04 | 0.1686 | 1107.3 | 730.6 | |
| 0.00 | 2.45 | 0.00 | 1.24 | 5.20 | 138.03 | -0.88 | 4.20 | 0.2089 | -998.0 | -701.7 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 5.54 | 137.94 | -0.97 | 4.50 | 0.2147 | -799.0 | -687.4 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 7.29 | 137.76 | -1.15 | 4.68 | 0.2448 | -720.0 | -517.7 | |
| 1.40 | 33.67 | 0.70 | 16.92 | 2.52 | 137.46 | -1.45 | 8.87 | 0.1641 | 1039.9 | 751.2 | |
| 0.00 | 1.31 | 0.00 | 0.66 | 3.50 | 137.28 | -1.63 | 9.03 | 0.1812 | 866.0 | 693.8 | |
| 7.43 | -16.00 | 3.74 | -16.00 | 2.86 | 137.25 | -1.65 | 9.79 | 0.1704 | 1101.4 | 999999 | |
| 8.22 | -16.00 | 4.13 | -16.00 | 2.59 | 137.22 | -1.68 | 10.25 | 0.1659 | 1280.7 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 2.28 | 137.10 | -1.80 | 11.31 | 0.1611 | 763.0 | 572.6 | |
| 0.00 | 2.10 | 0.00 | 1.06 | 3.65 | 137.04 | -1.87 | 10.19 | 0.1845 | 835.0 | 679.3 | |
| 3.67 | -16.00 | 1.85 | -16.00 | 2.74 | 136.89 | -2.01 | 12.00 | 0.1696 | 1051.0 | 999999 | |
| 0.00 | 4.90 | 0.00 | 2.46 | 2.74 | 136.29 | -2.61 | 15.42 | 0.1721 | 741.0 | 811.4 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 3.44 | 136.05 | -2.85 | 15.68 | 0.1848 | 726.0 | 580.2 | |
| 0.00 | 0.70 | 0.00 | 0.35 | 0.03 | 135.48 | -3.42 | 26.80 | 0.1330 | 768.0 | 592.0 | |
| 0.00 | 0.96 | 0.00 | 0.48 | -0.60 | 135.33 | -3.57 | 30.16 | 0.1246 | 939.0 | 760.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
