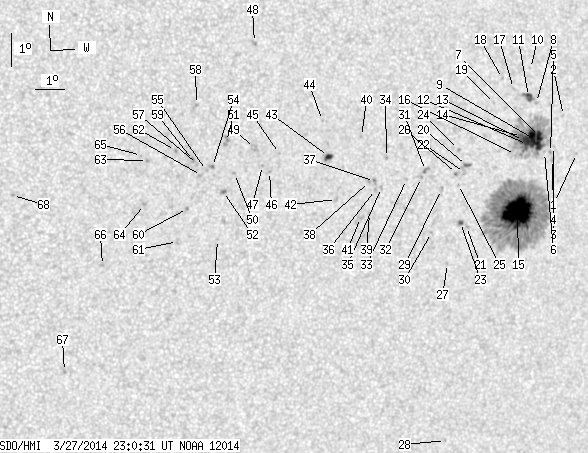

SDO HMI 2014-03-27 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.21 | 555.01 | 58.97 | 334.15 | -13.45 | 171.65 | 34.40 | 255.95 | 0.5681 | 386.6 | 283.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-27 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.49 | -12.16 | 174.59 | 37.34 | 258.78 | 0.6067 | 472.0 | 405.1 | |
| 0.00 | 1.14 | 0.00 | 0.70 | -11.06 | 173.92 | 36.67 | 260.53 | 0.5964 | 473.0 | 397.5 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -12.01 | 173.68 | 36.43 | 258.90 | 0.5942 | 373.0 | 324.2 | |
| 0.00 | 1.75 | 0.00 | 1.08 | -12.40 | 173.70 | 36.46 | 258.25 | 0.5950 | 574.0 | 485.9 | |
| 0.00 | 1.14 | 0.00 | 0.70 | -12.20 | 173.60 | 36.35 | 258.58 | 0.5932 | 612.0 | 557.4 | |
| 0.00 | 0.44 | 0.00 | 0.27 | -12.21 | 173.37 | 36.12 | 258.52 | 0.5901 | 567.0 | 516.8 | |
| 5.77 | 109.28 | 3.52 | 66.44 | -11.75 | 173.11 | 35.86 | 259.27 | 0.5860 | 794.5 | 423.5 | |
| 0.00 | 1.31 | 0.00 | 0.80 | -10.74 | 172.85 | 35.60 | 260.97 | 0.5814 | 600.0 | 506.4 | |
| 16.19 | -7.00 | 9.85 | -7.00 | -11.85 | 172.94 | 35.69 | 259.07 | 0.5837 | 908.2 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.37 | -9.74 | 172.50 | 35.25 | 262.67 | 0.5757 | 611.0 | 520.0 | |
| 3.41 | 7.35 | 2.07 | 4.45 | -10.58 | 172.53 | 35.28 | 261.21 | 0.5767 | 804.7 | 601.0 | |
| 4.64 | -7.00 | 2.82 | -7.00 | -12.02 | 172.70 | 35.45 | 258.75 | 0.5806 | 891.4 | 999999 | |
| 3.94 | -7.00 | 2.39 | -7.00 | -11.91 | 172.53 | 35.28 | 258.91 | 0.5781 | 1019.8 | 999999 | |
| 2.80 | -7.00 | 1.69 | -7.00 | -11.79 | 172.44 | 35.19 | 259.10 | 0.5767 | 1086.9 | 999999 | |
| 54.95 | 343.52 | 33.45 | 209.14 | -14.05 | 172.65 | 35.40 | 255.26 | 0.5833 | 1094.2 | 380.5 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -12.35 | 172.30 | 35.05 | 258.11 | 0.5755 | 262.0 | 328.8 | |
| 0.00 | 1.22 | 0.00 | 0.74 | -10.38 | 171.95 | 34.70 | 261.51 | 0.5683 | 540.0 | 381.1 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -10.11 | 171.51 | 34.26 | 261.95 | 0.5619 | -224.0 | -270.5 | |
| 0.00 | 1.14 | 0.00 | 0.68 | -10.87 | 171.31 | 34.06 | 260.56 | 0.5597 | 728.0 | 531.2 | |
| 1.14 | 2.89 | 0.67 | 1.71 | -12.79 | 170.54 | 33.30 | 256.98 | 0.5516 | 767.2 | 581.8 | |
| 0.00 | 1.75 | 0.00 | 1.04 | -14.62 | 170.84 | 33.59 | 253.79 | 0.5596 | 637.0 | 511.5 | |
| 0.00 | 1.84 | 0.00 | 1.09 | -13.00 | 170.50 | 33.25 | 256.59 | 0.5514 | 93.0 | 25.8 | |
| 1.22 | 2.45 | 0.73 | 1.46 | -14.51 | 170.60 | 33.35 | 253.91 | 0.5560 | 826.8 | 728.7 | |
| 0.00 | 1.22 | 0.00 | 0.72 | -12.33 | 170.18 | 32.94 | 257.74 | 0.5457 | 721.0 | 675.7 | |
| 0.00 | 0.87 | 0.00 | 0.52 | -13.38 | 170.34 | 33.09 | 255.87 | 0.5499 | 632.0 | 607.1 | |
| 0.00 | 1.40 | 0.00 | 0.83 | -13.05 | 170.22 | 32.97 | 256.43 | 0.5475 | -703.0 | -509.9 | |
| 0.00 | 1.31 | 0.00 | 0.78 | -15.77 | 170.34 | 33.09 | 251.58 | 0.5559 | 750.0 | 520.0 | |
| 0.00 | 0.70 | 0.00 | 0.43 | -21.15 | 171.45 | 34.20 | 242.98 | 0.5907 | -637.0 | -545.2 | |
| 0.00 | 2.10 | 0.00 | 1.24 | -13.56 | 169.74 | 32.50 | 255.37 | 0.5419 | -512.0 | -483.5 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -14.88 | 169.59 | 32.34 | 252.93 | 0.5429 | -585.0 | -420.9 | |
| 0.00 | 3.15 | 0.00 | 1.84 | -13.03 | 169.08 | 31.83 | 256.19 | 0.5313 | 860.0 | 666.1 | |
| 0.00 | 1.22 | 0.00 | 0.71 | -13.25 | 168.97 | 31.72 | 255.75 | 0.5301 | 638.0 | 560.8 | |
| 0.00 | 1.05 | 0.00 | 0.61 | -13.34 | 168.44 | 31.19 | 255.43 | 0.5228 | -472.0 | -354.3 | |
| 0.00 | 1.40 | 0.00 | 0.81 | -12.72 | 167.64 | 30.39 | 256.39 | 0.5098 | 766.0 | 665.1 | |
| 0.00 | 1.57 | 0.00 | 0.91 | -13.63 | 167.59 | 30.34 | 254.60 | 0.5112 | -491.0 | -381.3 | |
| 0.00 | 1.22 | 0.00 | 0.70 | -13.70 | 167.38 | 30.13 | 254.39 | 0.5084 | -643.0 | -565.7 | |
| 0.00 | 2.54 | 0.00 | 1.46 | -13.47 | 167.31 | 30.07 | 254.84 | 0.5068 | -676.0 | -580.4 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -13.48 | 167.14 | 29.89 | 254.76 | 0.5043 | -719.0 | -630.6 | |
| 0.00 | 1.31 | 0.00 | 0.75 | -14.44 | 167.27 | 30.03 | 252.93 | 0.5089 | -601.0 | -520.5 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -12.14 | 166.68 | 29.43 | 257.27 | 0.4946 | 672.0 | 551.3 | |
| 0.00 | 2.80 | 0.00 | 1.60 | -14.57 | 166.97 | 29.72 | 252.55 | 0.5051 | -549.0 | -420.4 | |
| 0.00 | 2.01 | 0.00 | 1.14 | -14.08 | 166.05 | 28.80 | 253.16 | 0.4903 | -639.0 | -538.5 | |
| 3.15 | 4.72 | 1.78 | 2.67 | -12.80 | 165.61 | 28.36 | 255.60 | 0.4802 | -592.9 | -419.0 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -11.74 | 165.28 | 28.03 | 257.72 | 0.4728 | 529.0 | 410.4 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -12.80 | 163.91 | 26.66 | 254.99 | 0.4549 | -576.0 | -505.3 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -13.36 | 163.63 | 26.38 | 253.66 | 0.4524 | -551.0 | -516.7 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -13.19 | 163.37 | 26.12 | 253.92 | 0.4480 | -648.0 | -564.0 | |
| 0.00 | 2.19 | 0.00 | 1.20 | -9.52 | 162.75 | 25.50 | 262.04 | 0.4305 | 743.0 | 714.1 | |
| 0.00 | 5.25 | 0.00 | 2.90 | -12.70 | 163.04 | 25.79 | 254.88 | 0.4416 | -594.0 | -643.9 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -13.48 | 162.45 | 25.20 | 252.85 | 0.4351 | -758.0 | -592.0 | |
| 0.00 | 4.46 | 0.00 | 2.44 | -12.53 | 162.08 | 24.83 | 254.84 | 0.4265 | -766.0 | -757.2 | |
| 0.00 | 2.45 | 0.00 | 1.34 | -14.04 | 162.14 | 24.89 | 251.43 | 0.4325 | -833.0 | -702.2 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -15.49 | 162.11 | 24.86 | 248.18 | 0.4382 | -588.0 | -459.5 | |
| 0.00 | 1.75 | 0.00 | 0.96 | -13.30 | 161.68 | 24.43 | 252.87 | 0.4230 | -831.0 | -730.9 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -13.43 | 161.49 | 24.25 | 252.47 | 0.4206 | -686.0 | -613.4 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -13.59 | 161.34 | 24.09 | 252.02 | 0.4189 | -604.0 | -524.4 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -13.27 | 161.17 | 23.92 | 252.69 | 0.4152 | -815.0 | -695.3 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -11.47 | 160.97 | 23.72 | 256.90 | 0.4065 | -722.0 | -610.5 | |
| 0.00 | 2.27 | 0.00 | 1.24 | -13.15 | 161.03 | 23.78 | 252.88 | 0.4126 | -929.0 | -791.7 | |
| 0.00 | 1.22 | 0.00 | 0.67 | -14.60 | 160.98 | 23.73 | 249.45 | 0.4177 | -719.0 | -576.6 | |
| 0.00 | 2.01 | 0.00 | 1.10 | -15.61 | 160.76 | 23.51 | 246.98 | 0.4192 | -801.0 | -598.1 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -12.88 | 160.40 | 23.15 | 253.20 | 0.4020 | -801.0 | -715.9 | |
| 0.00 | 1.40 | 0.00 | 0.75 | -13.22 | 159.50 | 22.25 | 251.84 | 0.3896 | -860.0 | -699.1 | |
| 0.00 | 1.31 | 0.00 | 0.71 | -14.55 | 159.53 | 22.28 | 248.59 | 0.3959 | -917.0 | -758.3 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -13.08 | 159.29 | 22.04 | 252.06 | 0.3858 | -698.0 | -575.1 | |
| 0.00 | 1.92 | 0.00 | 1.03 | -16.45 | 158.33 | 21.08 | 243.01 | 0.3889 | -846.0 | -662.5 | |
| 0.00 | 1.40 | 0.00 | 0.76 | -19.72 | 157.46 | 20.21 | 234.61 | 0.4006 | -807.0 | -691.9 | |
| 0.00 | 1.22 | 0.00 | 0.64 | -14.44 | 155.17 | 17.93 | 244.99 | 0.3304 | -688.0 | -563.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
