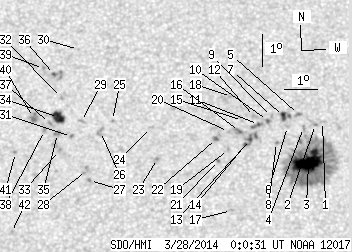

SDO HMI 2014-03-28 00:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.06 | 292.39 | 26.22 | 153.16 | 10.00 | 145.01 | 8.31 | 333.96 | 0.3255 | -289.2 | -253.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-28 00:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.93 | 0.00 | 1.02 | 10.91 | 147.14 | 10.44 | 329.45 | 0.3518 | -436.0 | -378.3 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 10.81 | 146.92 | 10.22 | 329.84 | 0.3486 | -681.0 | -439.2 | |
| 35.27 | 183.34 | 18.49 | 96.17 | 9.61 | 146.67 | 9.97 | 328.66 | 0.3296 | -1192.9 | -439.9 | |
| 0.00 | 2.01 | 0.00 | 1.06 | 10.70 | 146.55 | 9.85 | 330.62 | 0.3441 | -680.0 | -549.3 | |
| 0.00 | 2.89 | 0.00 | 1.53 | 11.11 | 146.41 | 9.71 | 331.54 | 0.3488 | 751.0 | 555.2 | |
| 0.00 | 1.93 | 0.00 | 1.01 | 10.73 | 146.05 | 9.36 | 331.89 | 0.3405 | -10.0 | 63.3 | |
| 2.80 | 6.39 | 1.48 | 3.37 | 11.04 | 145.94 | 9.24 | 332.61 | 0.3442 | 849.4 | 583.0 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 10.22 | 145.70 | 9.00 | 332.09 | 0.3304 | -817.0 | -682.6 | |
| 0.00 | 1.49 | 0.00 | 0.78 | 11.03 | 145.57 | 8.87 | 333.55 | 0.3413 | -597.0 | -502.5 | |
| 0.35 | 1.66 | 0.18 | 0.87 | 10.90 | 145.44 | 8.74 | 333.71 | 0.3385 | -840.5 | -702.9 | |
| 0.44 | 5.25 | 0.23 | 2.76 | 10.77 | 145.16 | 8.46 | 334.28 | 0.3346 | -846.8 | -781.4 | |
| 0.00 | 2.71 | 0.00 | 1.43 | 11.02 | 145.05 | 8.35 | 334.91 | 0.3375 | -636.0 | -474.7 | |
| 1.05 | 9.45 | 0.55 | 4.95 | 10.30 | 144.90 | 8.20 | 334.34 | 0.3257 | -1106.9 | -846.1 | |
| 0.61 | -13.00 | 0.32 | -13.00 | 10.14 | 144.74 | 8.05 | 334.56 | 0.3222 | -954.4 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 10.89 | 144.67 | 7.97 | 335.73 | 0.3330 | -706.0 | -484.6 | |
| 0.35 | 5.16 | 0.18 | 2.71 | 10.54 | 144.57 | 7.87 | 335.57 | 0.3270 | -957.2 | -732.9 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 8.08 | 144.27 | 7.57 | 332.93 | 0.2879 | -811.0 | -691.6 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 11.64 | 144.36 | 7.66 | 337.48 | 0.3422 | -625.0 | -518.8 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 9.98 | 144.22 | 7.52 | 335.82 | 0.3161 | -801.0 | -658.8 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 10.54 | 144.23 | 7.53 | 336.50 | 0.3247 | -832.0 | -623.3 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 9.63 | 143.90 | 7.21 | 336.27 | 0.3087 | -862.0 | -715.5 | |
| 0.00 | 3.24 | 0.00 | 1.69 | 10.31 | 143.86 | 7.16 | 337.27 | 0.3189 | -1068.0 | -868.3 | |
| 0.00 | 1.23 | 0.00 | 0.64 | 9.67 | 142.04 | 5.34 | 341.99 | 0.2983 | 849.0 | 766.9 | |
| 0.00 | 1.93 | 0.00 | 1.00 | 10.64 | 141.88 | 5.18 | 343.45 | 0.3129 | -621.0 | -533.7 | |
| 0.00 | 1.23 | 0.00 | 0.64 | 10.84 | 140.69 | 3.99 | 347.26 | 0.3113 | -644.0 | -482.1 | |
| 0.00 | 5.08 | 0.00 | 2.64 | 10.50 | 140.32 | 3.62 | 348.17 | 0.3043 | 689.0 | 508.7 | |
| 0.00 | 1.58 | 0.00 | 0.81 | 8.97 | 139.97 | 3.27 | 348.26 | 0.2780 | 902.0 | 774.4 | |
| 0.00 | 3.76 | 0.00 | 1.94 | 9.28 | 139.88 | 3.18 | 348.79 | 0.2828 | 617.0 | 724.0 | |
| 0.00 | 2.36 | 0.00 | 1.23 | 10.81 | 139.74 | 3.05 | 350.19 | 0.3076 | 658.0 | 496.0 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 13.08 | 139.68 | 2.98 | 351.51 | 0.3446 | 659.0 | 532.8 | |
| 0.00 | 1.66 | 0.00 | 0.86 | 10.34 | 139.43 | 2.74 | 350.92 | 0.2990 | 937.0 | 727.1 | |
| 0.00 | 1.23 | 0.00 | 0.64 | 11.56 | 139.14 | 2.44 | 352.43 | 0.3185 | 722.0 | 549.4 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 9.90 | 139.06 | 2.37 | 351.92 | 0.2908 | 1020.0 | 862.0 | |
| 8.66 | 10.94 | 4.51 | 5.69 | 10.93 | 139.04 | 2.35 | 352.47 | 0.3079 | 967.0 | 667.5 | |
| 0.00 | 3.06 | 0.00 | 1.59 | 10.43 | 139.01 | 2.31 | 352.36 | 0.2995 | 1110.0 | 938.9 | |
| 0.53 | 5.86 | 0.28 | 3.08 | 12.29 | 138.93 | 2.24 | 353.34 | 0.3300 | 962.7 | 735.2 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 10.74 | 138.77 | 2.07 | 353.27 | 0.3042 | 868.0 | 724.4 | |
| 0.00 | 2.10 | 0.00 | 1.09 | 10.52 | 138.61 | 1.92 | 353.69 | 0.3002 | 909.0 | 741.0 | |
| 0.00 | 1.75 | 0.00 | 0.92 | 12.47 | 138.60 | 1.90 | 354.39 | 0.3325 | 803.0 | 638.4 | |
| 0.00 | 5.95 | 0.00 | 3.10 | 10.93 | 138.28 | 1.58 | 354.90 | 0.3065 | 905.0 | 804.3 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 9.83 | 137.73 | 1.03 | 356.45 | 0.2875 | 863.0 | 705.3 | |
| 0.00 | 1.31 | 0.00 | 0.67 | 7.35 | 137.60 | 0.90 | 356.35 | 0.2455 | -771.0 | -661.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
