SDO HMI 2014-03-28 01:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.78 | 309.01 | 27.72 | 162.22 | 10.10 | 145.11 | 8.96 | 332.34 | 0.3316 | -284.0 | -238.4 | |
|
previous
or next observation for the same group /

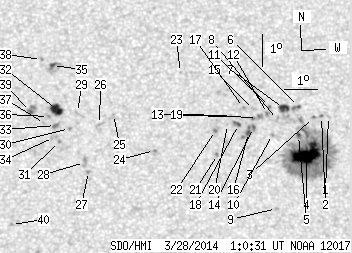

back to the solar disc SDO HMI 2014-03-28 01:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.56 | 10.83 | 147.40 | 11.25 | 327.44 | 0.3576 | -608.0 | -449.7 | |
| 0.00 | 1.49 | 0.00 | 0.79 | 10.83 | 147.18 | 11.03 | 327.94 | 0.3556 | -572.0 | -444.5 | |
| 0.00 | 1.40 | 0.00 | 0.74 | 10.79 | 146.93 | 10.78 | 328.48 | 0.3530 | -468.0 | -443.8 | |
| 33.87 | 210.15 | 17.80 | 110.50 | 9.63 | 146.67 | 10.52 | 327.28 | 0.3346 | -1202.0 | -391.2 | |
| 0.96 | -4.00 | 0.51 | -4.00 | 10.22 | 146.44 | 10.30 | 328.78 | 0.3408 | -828.6 | 999999 | |
| 0.53 | 4.55 | 0.28 | 2.41 | 11.13 | 146.48 | 10.33 | 330.05 | 0.3539 | 705.2 | 484.7 | |
| 4.81 | -4.00 | 2.54 | -4.00 | 11.05 | 146.01 | 9.86 | 331.08 | 0.3492 | 882.2 | 999999 | |
| 0.00 | 1.93 | 0.00 | 1.01 | 10.70 | 145.81 | 9.66 | 331.08 | 0.3426 | 604.0 | 460.3 | |
| 0.00 | 1.58 | 0.00 | 0.82 | 7.93 | 145.70 | 9.55 | 326.89 | 0.3023 | -802.0 | -602.7 | |
| 0.00 | 1.58 | 0.00 | 0.83 | 10.23 | 145.64 | 9.49 | 330.82 | 0.3344 | -808.0 | -592.7 | |
| 0.00 | 1.23 | 0.00 | 0.65 | 11.11 | 145.58 | 9.43 | 332.23 | 0.3466 | -611.0 | -542.2 | |
| 0.00 | 2.10 | 0.00 | 1.11 | 10.89 | 145.51 | 9.36 | 332.10 | 0.3429 | -832.0 | -715.1 | |
| 0.00 | 5.25 | 0.00 | 2.76 | 10.76 | 145.20 | 9.05 | 332.72 | 0.3386 | -918.0 | -806.2 | |
| 0.53 | 9.02 | 0.28 | 4.73 | 10.44 | 145.06 | 8.92 | 332.63 | 0.3330 | -930.0 | -842.2 | |
| 0.00 | 1.84 | 0.00 | 0.97 | 11.01 | 145.08 | 8.93 | 333.35 | 0.3414 | -485.0 | -466.9 | |
| 1.14 | -14.00 | 0.60 | -14.00 | 10.28 | 144.90 | 8.76 | 332.82 | 0.3294 | -1096.8 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 11.06 | 144.77 | 8.63 | 334.22 | 0.3400 | -754.0 | -650.6 | |
| 0.61 | 3.68 | 0.32 | 1.93 | 10.53 | 144.60 | 8.46 | 333.96 | 0.3308 | -948.7 | -752.4 | |
| 0.00 | 1.23 | 0.00 | 0.64 | 10.81 | 144.40 | 8.25 | 334.88 | 0.3335 | -727.0 | -524.2 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 10.52 | 144.27 | 8.12 | 334.87 | 0.3284 | -847.0 | -651.2 | |
| 0.00 | 1.66 | 0.00 | 0.87 | 9.58 | 143.93 | 7.79 | 334.52 | 0.3119 | -789.0 | -665.4 | |
| 0.00 | 2.54 | 0.00 | 1.33 | 10.33 | 143.89 | 7.74 | 335.64 | 0.3229 | -1090.0 | -890.9 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 12.14 | 142.86 | 6.72 | 340.51 | 0.3443 | -585.0 | -461.9 | |
| 0.00 | 1.23 | 0.00 | 0.64 | 9.68 | 142.01 | 5.86 | 340.37 | 0.3012 | 797.0 | 701.7 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 10.79 | 140.78 | 4.63 | 345.25 | 0.3129 | -685.0 | -510.4 | |
| 0.00 | 2.19 | 0.00 | 1.14 | 10.47 | 140.35 | 4.20 | 346.33 | 0.3060 | 743.0 | 477.5 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 9.00 | 139.99 | 3.85 | 346.29 | 0.2807 | 897.0 | 735.2 | |
| 0.00 | 4.46 | 0.00 | 2.31 | 9.28 | 139.88 | 3.73 | 346.92 | 0.2848 | 675.0 | 701.5 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 10.85 | 139.68 | 3.53 | 348.68 | 0.3097 | 653.0 | 462.1 | |
| 0.00 | 1.23 | 0.00 | 0.64 | 10.34 | 139.43 | 3.28 | 349.15 | 0.3006 | 898.0 | 765.7 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 9.93 | 139.12 | 2.98 | 349.91 | 0.2930 | 974.0 | 803.8 | |
| 8.58 | 11.12 | 4.47 | 5.79 | 10.94 | 139.04 | 2.89 | 350.73 | 0.3093 | 948.9 | 636.1 | |
| 0.00 | 3.24 | 0.00 | 1.68 | 10.43 | 139.01 | 2.86 | 350.58 | 0.3009 | 1159.0 | 931.8 | |
| 0.00 | 3.06 | 0.00 | 1.59 | 10.06 | 138.94 | 2.79 | 350.58 | 0.2945 | 637.0 | 675.0 | |
| 1.14 | 10.77 | 0.60 | 5.65 | 12.32 | 138.94 | 2.79 | 351.73 | 0.3318 | 849.2 | 658.2 | |
| 0.00 | 1.84 | 0.00 | 0.96 | 10.72 | 138.80 | 2.65 | 351.40 | 0.3050 | 912.0 | 732.4 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 10.50 | 138.67 | 2.52 | 351.69 | 0.3011 | 910.0 | 714.3 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 12.51 | 138.60 | 2.45 | 352.78 | 0.3341 | 801.0 | 689.8 | |
| 0.61 | 6.56 | 0.32 | 3.42 | 10.87 | 138.25 | 2.10 | 353.22 | 0.3064 | 936.6 | 785.4 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 7.35 | 137.65 | 1.50 | 353.91 | 0.2464 | -818.0 | -691.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
