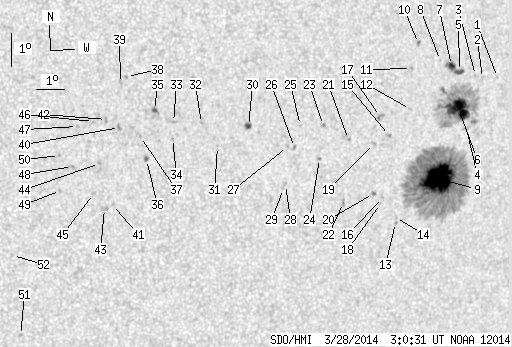

SDO HMI 2014-03-28 03:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.74 | 566.22 | 56.04 | 351.40 | -13.35 | 172.03 | 36.98 | 256.65 | 0.6032 | 435.8 | 318.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-28 03:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.73 | -10.82 | 174.52 | 39.48 | 261.15 | 0.6343 | 479.0 | 370.1 | |
| 0.00 | 2.10 | 0.00 | 1.33 | -10.90 | 173.94 | 38.90 | 260.99 | 0.6266 | 479.0 | 387.0 | |
| 0.00 | 1.05 | 0.00 | 0.66 | -10.83 | 173.66 | 38.61 | 261.08 | 0.6227 | 647.0 | 473.9 | |
| 0.00 | 2.71 | 0.00 | 1.71 | -12.43 | 173.57 | 38.52 | 258.48 | 0.6229 | 468.0 | 424.3 | |
| 2.80 | 12.08 | 1.75 | 7.55 | -10.75 | 173.03 | 37.98 | 261.15 | 0.6141 | 724.5 | 694.6 | |
| 28.37 | 129.49 | 17.82 | 81.25 | -11.86 | 173.16 | 38.11 | 259.36 | 0.6168 | 900.5 | 406.6 | |
| 3.15 | -5.00 | 1.97 | -5.00 | -10.59 | 172.69 | 37.64 | 261.38 | 0.6095 | 853.2 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.49 | -10.47 | 172.25 | 37.20 | 261.55 | 0.6034 | 432.0 | 349.9 | |
| 51.39 | 349.51 | 32.20 | 218.93 | -14.00 | 172.76 | 37.71 | 255.82 | 0.6144 | 1095.7 | 387.6 | |
| 0.00 | 2.01 | 0.00 | 1.23 | -10.02 | 171.36 | 36.31 | 262.24 | 0.5907 | -535.0 | -429.8 | |
| 0.00 | 1.23 | 0.00 | 0.75 | -10.79 | 171.19 | 36.14 | 260.93 | 0.5890 | 687.0 | 618.1 | |
| 0.00 | 1.23 | 0.00 | 0.75 | -12.01 | 171.34 | 36.29 | 258.87 | 0.5922 | 790.0 | 655.7 | |
| 0.00 | 1.05 | 0.00 | 0.65 | -15.44 | 171.37 | 36.32 | 253.15 | 0.5988 | 441.0 | 519.6 | |
| 0.00 | 1.40 | 0.00 | 0.86 | -15.29 | 171.34 | 36.29 | 253.39 | 0.5981 | 599.0 | 536.7 | |
| 0.00 | 1.84 | 0.00 | 1.12 | -12.84 | 170.67 | 35.62 | 257.35 | 0.5842 | 762.0 | 710.3 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -14.72 | 170.73 | 35.68 | 254.18 | 0.5886 | 631.0 | 445.8 | |
| 0.00 | 3.06 | 0.00 | 1.86 | -12.30 | 170.25 | 35.20 | 258.21 | 0.5775 | 850.0 | 750.7 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -14.90 | 170.69 | 35.64 | 253.85 | 0.5885 | 667.0 | 553.5 | |
| 0.00 | 2.19 | 0.00 | 1.33 | -13.12 | 170.15 | 35.10 | 256.77 | 0.5775 | -651.0 | -426.5 | |
| 0.35 | 1.58 | 0.21 | 0.96 | -14.62 | 170.37 | 35.32 | 254.25 | 0.5835 | 752.2 | 647.5 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -13.06 | 169.17 | 34.12 | 256.66 | 0.5637 | 695.0 | 643.6 | |
| 0.00 | 2.01 | 0.00 | 1.21 | -14.96 | 169.30 | 34.25 | 253.36 | 0.5697 | -624.0 | -473.1 | |
| 0.00 | 1.49 | 0.00 | 0.88 | -12.70 | 168.19 | 33.14 | 257.09 | 0.5493 | 652.0 | 501.3 | |
| 0.00 | 1.49 | 0.00 | 0.88 | -13.70 | 168.19 | 33.15 | 255.29 | 0.5514 | -641.0 | -536.9 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -12.75 | 167.36 | 32.31 | 256.81 | 0.5375 | 794.0 | 621.9 | |
| 0.00 | 1.93 | 0.00 | 1.13 | -13.42 | 167.24 | 32.19 | 255.53 | 0.5372 | -570.0 | -497.4 | |
| 0.00 | 1.05 | 0.00 | 0.61 | -13.41 | 166.98 | 31.93 | 255.49 | 0.5335 | -621.0 | -542.8 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -14.55 | 167.08 | 32.03 | 253.41 | 0.5378 | -514.0 | -497.5 | |
| 0.00 | 0.35 | 0.00 | 0.21 | -14.68 | 167.03 | 31.98 | 253.16 | 0.5374 | -485.0 | -380.5 | |
| 1.93 | 3.33 | 1.11 | 1.91 | -12.89 | 165.50 | 30.45 | 256.06 | 0.5111 | -746.8 | -561.7 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -13.55 | 164.49 | 29.44 | 254.44 | 0.4981 | -516.0 | -458.6 | |
| 0.00 | 1.23 | 0.00 | 0.69 | -12.89 | 163.84 | 28.79 | 255.54 | 0.4868 | -581.0 | -558.9 | |
| 0.00 | 1.75 | 0.00 | 0.98 | -12.91 | 162.87 | 27.82 | 255.16 | 0.4725 | -733.0 | -590.7 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -13.40 | 162.89 | 27.84 | 254.16 | 0.4742 | -612.0 | -509.9 | |
| 1.05 | 2.98 | 0.59 | 1.66 | -12.59 | 162.17 | 27.12 | 255.60 | 0.4613 | -920.5 | -736.1 | |
| 0.70 | 2.19 | 0.39 | 1.22 | -14.07 | 162.07 | 27.02 | 252.40 | 0.4643 | -779.0 | -674.7 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -13.39 | 161.78 | 26.73 | 253.72 | 0.4578 | -770.0 | -674.9 | |
| 0.00 | 1.40 | 0.00 | 0.77 | -11.62 | 161.11 | 26.06 | 257.37 | 0.4428 | -669.0 | -511.6 | |
| 0.00 | 2.98 | 0.00 | 1.64 | -11.84 | 160.93 | 25.88 | 256.81 | 0.4406 | -712.0 | -549.6 | |
| 0.00 | 2.19 | 0.00 | 1.21 | -13.16 | 161.03 | 25.98 | 253.91 | 0.4459 | -857.0 | -728.2 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -15.49 | 161.08 | 26.03 | 248.89 | 0.4553 | -536.0 | -505.3 | |
| 0.00 | 2.36 | 0.00 | 1.30 | -12.94 | 160.57 | 25.52 | 254.19 | 0.4382 | -781.0 | -692.3 | |
| 0.00 | 3.41 | 0.00 | 1.89 | -15.62 | 160.82 | 25.77 | 248.45 | 0.4521 | -694.0 | -593.5 | |
| 0.00 | 1.49 | 0.00 | 0.82 | -14.27 | 160.48 | 25.43 | 251.17 | 0.4415 | -841.0 | -725.6 | |
| 0.00 | 1.49 | 0.00 | 0.82 | -15.19 | 160.39 | 25.34 | 249.12 | 0.4439 | -71.0 | -122.6 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -13.02 | 160.13 | 25.08 | 253.81 | 0.4319 | -721.0 | -643.0 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -13.20 | 159.61 | 24.56 | 253.15 | 0.4246 | -841.0 | -726.8 | |
| 0.00 | 1.75 | 0.00 | 0.96 | -14.41 | 159.57 | 24.53 | 250.37 | 0.4287 | -896.0 | -684.2 | |
| 0.00 | 1.58 | 0.00 | 0.86 | -15.15 | 159.25 | 24.21 | 248.49 | 0.4272 | -675.0 | -517.4 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -14.10 | 159.10 | 24.05 | 250.80 | 0.4203 | -711.0 | -532.9 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -19.61 | 158.49 | 23.45 | 238.28 | 0.4425 | -699.0 | -546.5 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -17.19 | 157.88 | 22.83 | 242.88 | 0.4182 | -784.0 | -640.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
