SDO HMI 2014-03-28 05:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.13 | 556.94 | 58.54 | 350.77 | -13.36 | 172.06 | 38.10 | 256.84 | 0.6183 | 538.7 | 326.0 | |
|
previous
or next observation for the same group /

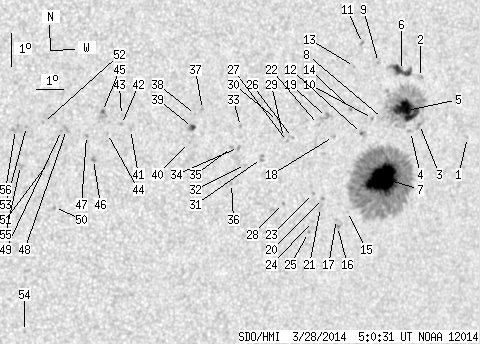

back to the solar disc SDO HMI 2014-03-28 05:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.70 | -12.50 | 175.95 | 42.00 | 258.77 | 0.6684 | 562.0 | 397.4 | |
| 0.00 | 2.71 | 0.00 | 1.74 | -10.85 | 173.75 | 39.80 | 261.11 | 0.6386 | 269.0 | 336.8 | |
| 0.00 | 3.59 | 0.00 | 2.32 | -12.26 | 173.95 | 40.00 | 258.93 | 0.6423 | 620.0 | 470.4 | |
| 0.00 | 2.45 | 0.00 | 1.57 | -12.49 | 173.64 | 39.68 | 258.53 | 0.6384 | 683.0 | 501.9 | |
| 29.60 | 107.80 | 18.92 | 68.82 | -11.88 | 173.37 | 39.41 | 259.46 | 0.6343 | 898.4 | 402.1 | |
| 8.93 | 14.80 | 5.67 | 9.40 | -10.70 | 172.98 | 39.03 | 261.30 | 0.6282 | 821.6 | 647.3 | |
| 50.97 | 342.68 | 32.41 | 217.91 | -13.98 | 172.80 | 38.85 | 256.06 | 0.6295 | 1227.5 | 405.9 | |
| 0.00 | 1.23 | 0.00 | 0.77 | -12.18 | 172.47 | 38.52 | 258.87 | 0.6227 | 504.0 | 592.4 | |
| 0.00 | 1.31 | 0.00 | 0.82 | -10.52 | 172.05 | 38.10 | 261.52 | 0.6156 | 674.0 | 507.3 | |
| 0.00 | 1.14 | 0.00 | 0.72 | -12.21 | 172.09 | 38.13 | 258.78 | 0.6175 | 767.0 | 661.1 | |
| 0.00 | 1.84 | 0.00 | 1.14 | -10.00 | 171.36 | 37.41 | 262.34 | 0.6060 | -540.0 | -442.5 | |
| 0.44 | 3.07 | 0.27 | 1.92 | -12.69 | 171.74 | 37.79 | 257.96 | 0.6135 | -381.6 | -54.5 | |
| 0.00 | 0.70 | 0.00 | 0.43 | -10.70 | 171.16 | 37.20 | 261.15 | 0.6035 | 697.0 | 552.1 | |
| 0.00 | 1.14 | 0.00 | 0.71 | -12.00 | 171.24 | 37.28 | 259.02 | 0.6058 | 764.0 | 600.5 | |
| 0.00 | 1.05 | 0.00 | 0.66 | -15.06 | 171.64 | 37.69 | 254.09 | 0.6162 | 329.0 | 302.5 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -15.54 | 171.35 | 37.40 | 253.25 | 0.6133 | 736.0 | 663.8 | |
| 0.00 | 1.05 | 0.00 | 0.66 | -15.33 | 171.27 | 37.31 | 253.56 | 0.6118 | 707.0 | 616.1 | |
| 0.00 | 1.23 | 0.00 | 0.76 | -12.85 | 170.68 | 36.73 | 257.52 | 0.5994 | 774.0 | 717.1 | |
| 0.00 | 6.83 | 0.00 | 4.20 | -12.30 | 170.33 | 36.37 | 258.38 | 0.5938 | 916.0 | 716.2 | |
| 0.00 | 1.31 | 0.00 | 0.81 | -14.73 | 170.64 | 36.69 | 254.39 | 0.6022 | 703.0 | 564.0 | |
| 0.00 | 2.89 | 0.00 | 1.79 | -15.01 | 170.58 | 36.63 | 253.91 | 0.6020 | 600.0 | 467.0 | |
| 0.00 | 1.31 | 0.00 | 0.80 | -12.53 | 170.06 | 36.11 | 257.95 | 0.5904 | 340.0 | 370.2 | |
| 0.00 | 1.05 | 0.00 | 0.65 | -14.61 | 170.23 | 36.28 | 254.49 | 0.5964 | 714.0 | 560.1 | |
| 0.00 | 1.05 | 0.00 | 0.65 | -15.45 | 170.36 | 36.41 | 253.13 | 0.6000 | 248.0 | 188.6 | |
| 0.00 | 1.05 | 0.00 | 0.65 | -15.80 | 170.27 | 36.32 | 252.54 | 0.5997 | -446.0 | -343.2 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -12.98 | 169.15 | 35.19 | 257.01 | 0.5786 | 807.0 | 695.8 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -13.12 | 168.98 | 35.03 | 256.75 | 0.5765 | 561.0 | 454.6 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -14.99 | 169.16 | 35.20 | 253.59 | 0.5828 | -612.0 | -503.6 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -13.01 | 168.81 | 34.86 | 256.90 | 0.5740 | 779.0 | 568.1 | |
| 0.00 | 0.61 | 0.00 | 0.37 | -12.51 | 168.51 | 34.56 | 257.71 | 0.5690 | 704.0 | 585.3 | |
| 0.00 | 2.98 | 0.00 | 1.79 | -13.69 | 168.10 | 34.15 | 255.55 | 0.5654 | -712.0 | -501.5 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -13.90 | 167.54 | 33.59 | 255.03 | 0.5580 | -568.0 | -456.2 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -12.78 | 167.18 | 33.23 | 256.96 | 0.5507 | 720.0 | 586.1 | |
| 0.00 | 1.84 | 0.00 | 1.09 | -13.41 | 167.20 | 33.25 | 255.82 | 0.5523 | -519.0 | -490.5 | |
| 0.00 | 1.40 | 0.00 | 0.83 | -13.43 | 166.95 | 33.00 | 255.73 | 0.5487 | -689.0 | -587.3 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -14.51 | 167.12 | 33.17 | 253.83 | 0.5536 | -641.0 | -551.2 | |
| 0.00 | 1.31 | 0.00 | 0.77 | -12.35 | 165.74 | 31.78 | 257.42 | 0.5293 | 829.0 | 596.1 | |
| 0.00 | 0.53 | 0.00 | 0.31 | -12.52 | 165.51 | 31.55 | 257.05 | 0.5263 | 761.0 | 631.8 | |
| 1.66 | 3.68 | 0.97 | 2.14 | -12.91 | 165.45 | 31.50 | 256.29 | 0.5263 | -773.2 | -576.5 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -13.37 | 165.41 | 31.46 | 255.42 | 0.5267 | -517.0 | -428.3 | |
| 0.00 | 1.40 | 0.00 | 0.80 | -13.10 | 163.27 | 29.31 | 255.28 | 0.4950 | -806.0 | -574.7 | |
| 0.00 | 1.31 | 0.00 | 0.75 | -12.96 | 162.93 | 28.98 | 255.44 | 0.4898 | -751.0 | -601.5 | |
| 0.00 | 0.44 | 0.00 | 0.25 | -12.69 | 162.90 | 28.95 | 255.98 | 0.4886 | -440.0 | -327.8 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -13.26 | 162.48 | 28.53 | 254.68 | 0.4839 | -639.0 | -548.0 | |
| 0.53 | 4.99 | 0.30 | 2.81 | -12.61 | 162.22 | 28.27 | 255.93 | 0.4785 | -857.5 | -744.0 | |
| 0.00 | 2.19 | 0.00 | 1.24 | -14.07 | 162.09 | 28.14 | 252.88 | 0.4807 | -741.0 | -646.9 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -13.36 | 161.76 | 27.80 | 254.21 | 0.4736 | -799.0 | -695.8 | |
| 0.00 | 2.80 | 0.00 | 1.56 | -13.21 | 161.05 | 27.09 | 254.23 | 0.4626 | -759.0 | -629.2 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -13.25 | 160.88 | 26.93 | 254.08 | 0.4603 | -810.0 | -697.7 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -15.58 | 160.94 | 26.98 | 249.21 | 0.4694 | -770.0 | -671.1 | |
| 0.00 | 2.89 | 0.00 | 1.61 | -14.27 | 160.52 | 26.57 | 251.75 | 0.4583 | -705.0 | -658.0 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -13.04 | 160.23 | 26.28 | 254.27 | 0.4500 | -750.0 | -566.0 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -13.19 | 159.67 | 25.72 | 253.69 | 0.4420 | -858.0 | -709.9 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -19.40 | 160.48 | 26.53 | 241.30 | 0.4823 | -553.0 | -443.0 | |
| 0.00 | 3.59 | 0.00 | 1.98 | -14.38 | 159.60 | 25.65 | 251.05 | 0.4452 | -993.0 | -694.0 | |
| 0.00 | 4.90 | 0.00 | 2.70 | -13.30 | 159.31 | 25.35 | 253.28 | 0.4369 | -692.0 | -722.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
