SDO HMI 2014-03-28 06:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.05 | 93.01 | 15.20 | 47.11 | 3.47 | 139.31 | 5.90 | 330.78 | 0.2067 | 143.9 | -57.6 | |
|
previous
or next observation for the same group /

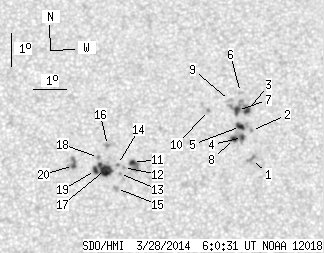

back to the solar disc SDO HMI 2014-03-28 06:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.50 | 0.00 | 1.78 | 3.04 | 141.63 | 8.22 | 319.74 | 0.2220 | -1010.0 | -819.4 | |
| 0.00 | 1.58 | 0.00 | 0.80 | 3.92 | 141.64 | 8.23 | 322.14 | 0.2339 | -887.0 | -668.3 | |
| 2.63 | 17.95 | 1.34 | 9.16 | 4.53 | 141.52 | 8.12 | 324.07 | 0.2410 | -1138.1 | -808.0 | |
| 1.58 | 11.91 | 0.80 | 6.06 | 3.70 | 141.36 | 7.96 | 322.52 | 0.2281 | -1164.8 | -863.4 | |
| 3.42 | 6.22 | 1.74 | 3.17 | 4.04 | 141.31 | 7.90 | 323.59 | 0.2321 | -1149.9 | -812.2 | |
| 0.00 | 1.66 | 0.00 | 0.85 | 5.08 | 141.32 | 7.91 | 326.04 | 0.2467 | -725.0 | -558.1 | |
| 2.72 | -3.00 | 1.38 | -3.00 | 4.52 | 141.22 | 7.82 | 325.09 | 0.2380 | -1156.1 | 999999 | |
| 2.45 | -4.00 | 1.25 | -4.00 | 3.67 | 141.12 | 7.72 | 323.28 | 0.2251 | -1271.4 | 999999 | |
| 0.00 | 2.72 | 0.00 | 1.38 | 4.83 | 140.98 | 7.58 | 326.63 | 0.2400 | -508.0 | -509.3 | |
| 0.00 | 1.31 | 0.00 | 0.67 | 4.51 | 140.34 | 6.94 | 328.21 | 0.2296 | -1059.0 | -891.0 | |
| 2.45 | 9.37 | 1.24 | 4.72 | 2.90 | 138.04 | 4.63 | 334.23 | 0.1865 | 955.7 | 797.8 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 2.75 | 137.77 | 4.36 | 335.21 | 0.1821 | 956.0 | 822.0 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 2.57 | 137.65 | 4.24 | 335.40 | 0.1784 | 829.0 | 717.3 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 2.84 | 137.59 | 4.18 | 336.32 | 0.1823 | 976.0 | 826.8 | |
| 0.00 | 2.63 | 0.00 | 1.32 | 2.11 | 137.56 | 4.15 | 334.79 | 0.1706 | 934.0 | 836.0 | |
| 0.00 | 2.01 | 0.00 | 1.02 | 3.42 | 137.29 | 3.89 | 338.98 | 0.1895 | 1030.0 | 763.1 | |
| 10.86 | 19.27 | 5.47 | 9.70 | 2.69 | 137.23 | 3.82 | 337.84 | 0.1774 | 1209.9 | 827.4 | |
| 0.00 | 1.58 | 0.00 | 0.79 | 3.05 | 137.02 | 3.61 | 339.66 | 0.1819 | 819.0 | 582.6 | |
| 2.54 | -17.00 | 1.28 | -17.00 | 2.65 | 136.93 | 3.52 | 339.37 | 0.1750 | 1113.8 | 999999 | |
| 1.40 | 7.53 | 0.70 | 3.79 | 2.80 | 136.27 | 2.86 | 343.24 | 0.1738 | 1183.2 | 871.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
