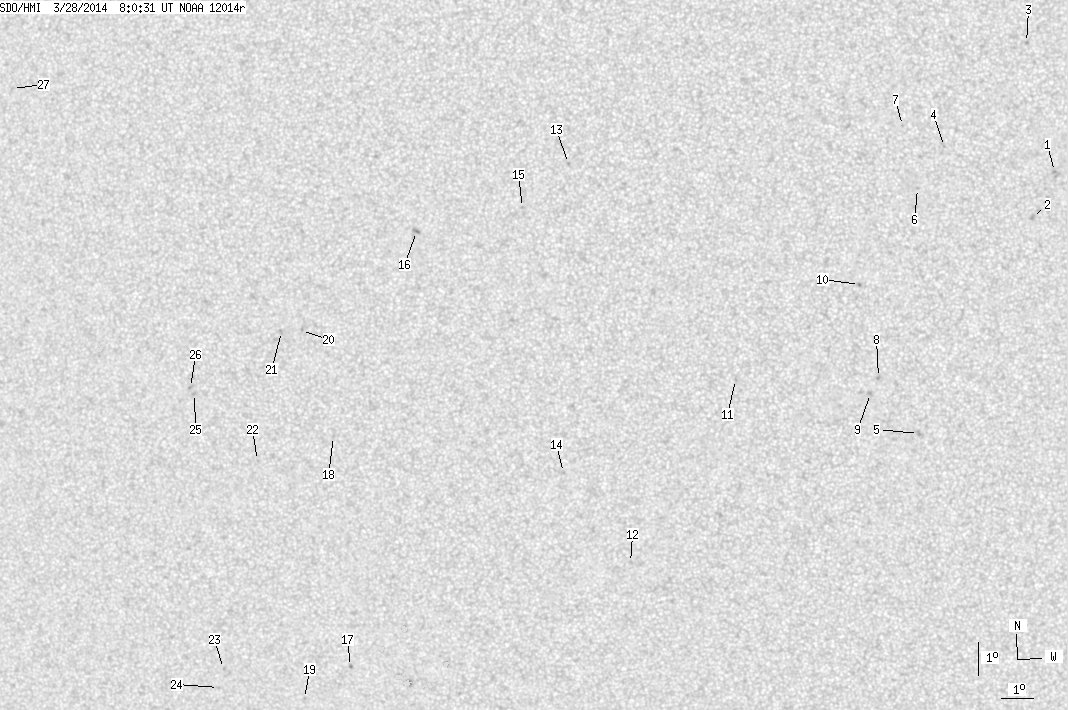

SDO HMI 2014-03-28 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 39.07 | 0.00 | 20.13 | -13.72 | 123.17 | -9.14 | 158.01 | 0.2423 | 217.9 | 218.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-28 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 0.70 | -8.46 | 137.95 | 5.63 | 252.45 | 0.1023 | 1194.0 | 892.9 | |
| 0.00 | 2.98 | 0.00 | 1.48 | -9.84 | 137.30 | 4.98 | 237.41 | 0.1021 | 981.0 | 673.9 | |
| 0.00 | 1.49 | 0.00 | 0.74 | -4.61 | 137.06 | 4.75 | 293.94 | 0.0908 | 867.0 | 742.8 | |
| 0.00 | 0.79 | 0.00 | 0.39 | -7.73 | 134.61 | 2.30 | 246.10 | 0.0436 | 900.0 | 722.6 | |
| 0.00 | 2.36 | 0.00 | 1.19 | -16.37 | 133.86 | 1.55 | 188.80 | 0.1702 | 970.0 | 839.8 | |
| 0.00 | 1.14 | 0.00 | 0.56 | -8.99 | 133.79 | 1.48 | 212.91 | 0.0473 | 846.0 | 651.8 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -7.11 | 133.34 | 1.03 | 249.63 | 0.0190 | 858.0 | 651.8 | |
| 0.00 | 1.40 | 0.00 | 0.70 | -14.67 | 132.61 | 0.30 | 182.11 | 0.1389 | 915.0 | 793.0 | |
| 0.00 | 2.19 | 0.00 | 1.10 | -15.16 | 132.36 | 0.05 | 180.35 | 0.1472 | 986.0 | 818.4 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -11.87 | 132.03 | -0.28 | 176.95 | 0.0901 | 1017.0 | 832.1 | |
| 0.00 | 1.40 | 0.00 | 0.70 | -14.71 | 128.19 | -4.13 | 153.43 | 0.1563 | 903.0 | 695.6 | |
| 0.00 | 1.40 | 0.00 | 0.72 | -20.24 | 124.68 | -7.63 | 152.04 | 0.2668 | 746.0 | 585.0 | |
| 0.00 | 1.40 | 0.00 | 0.70 | -8.15 | 123.21 | -9.10 | 99.50 | 0.1596 | 807.0 | 599.3 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -17.45 | 122.69 | -9.62 | 139.63 | 0.2473 | 732.0 | 541.3 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -9.44 | 121.76 | -10.55 | 105.22 | 0.1881 | 781.0 | 573.8 | |
| 0.00 | 2.98 | 0.00 | 1.52 | -10.07 | 118.44 | -13.87 | 104.63 | 0.2451 | 1080.0 | 902.0 | |
| 0.00 | 1.49 | 0.00 | 0.80 | -23.23 | 115.17 | -17.14 | 136.84 | 0.3977 | -943.0 | -799.0 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -16.16 | 115.39 | -16.92 | 121.10 | 0.3279 | -870.0 | -649.0 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -24.17 | 113.45 | -18.86 | 136.01 | 0.4265 | -632.0 | -401.6 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -12.92 | 114.62 | -17.69 | 110.93 | 0.3185 | -715.0 | -602.5 | |
| 0.00 | 1.66 | 0.00 | 0.87 | -12.93 | 113.97 | -18.34 | 110.36 | 0.3285 | -858.0 | -643.3 | |
| 0.00 | 0.70 | 0.00 | 0.37 | -16.79 | 112.83 | -19.48 | 119.57 | 0.3687 | -743.0 | -585.9 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -23.13 | 110.80 | -21.51 | 130.67 | 0.4465 | -758.0 | -591.4 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -23.71 | 110.52 | -21.79 | 131.41 | 0.4551 | -676.0 | -527.9 | |
| 0.00 | 1.75 | 0.00 | 0.94 | -14.68 | 110.96 | -21.35 | 112.53 | 0.3829 | -895.0 | -664.4 | |
| 0.00 | 1.84 | 0.00 | 0.99 | -14.50 | 110.85 | -21.46 | 111.98 | 0.3837 | -896.0 | -623.4 | |
| 0.00 | 1.40 | 0.00 | 0.78 | -5.26 | 105.63 | -26.68 | 88.30 | 0.4492 | -713.0 | -601.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
