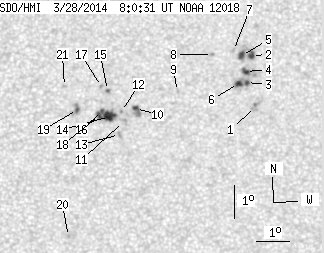

SDO HMI 2014-03-28 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.03 | 89.49 | 14.21 | 45.39 | 3.36 | 139.17 | 6.86 | 326.47 | 0.2134 | 126.4 | 9.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-28 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.64 | 0.00 | 2.36 | 3.01 | 141.65 | 9.34 | 315.96 | 0.2343 | -913.0 | -843.2 | |
| 3.15 | 14.71 | 1.61 | 7.53 | 4.56 | 141.55 | 9.24 | 320.52 | 0.2528 | -1108.2 | -794.2 | |
| 1.49 | 18.66 | 0.76 | 9.52 | 3.73 | 141.39 | 9.08 | 318.85 | 0.2403 | -1152.9 | -841.7 | |
| 2.89 | -3.00 | 1.48 | -3.00 | 4.07 | 141.36 | 9.05 | 319.84 | 0.2444 | -1213.0 | 999999 | |
| 3.15 | -2.00 | 1.61 | -2.00 | 4.55 | 141.25 | 8.94 | 321.45 | 0.2496 | -1109.5 | 999999 | |
| 3.07 | -3.00 | 1.56 | -3.00 | 3.70 | 141.15 | 8.83 | 319.54 | 0.2372 | -1248.2 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.21 | 4.70 | 141.01 | 8.69 | 322.58 | 0.2490 | -855.0 | -560.1 | |
| 0.00 | 1.66 | 0.00 | 0.85 | 4.57 | 140.37 | 8.06 | 324.36 | 0.2408 | -1141.0 | -895.4 | |
| 0.00 | 1.75 | 0.00 | 0.89 | 3.43 | 139.30 | 6.98 | 325.33 | 0.2144 | -870.0 | -612.2 | |
| 1.75 | 7.36 | 0.88 | 3.71 | 2.90 | 138.03 | 5.71 | 329.18 | 0.1950 | 968.2 | 862.2 | |
| 0.00 | 3.85 | 0.00 | 1.94 | 2.50 | 137.66 | 5.35 | 329.77 | 0.1859 | 619.0 | 548.6 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 2.80 | 137.60 | 5.29 | 330.84 | 0.1899 | 976.0 | 802.4 | |
| 0.00 | 2.45 | 0.00 | 1.23 | 2.10 | 137.54 | 5.23 | 329.25 | 0.1789 | 976.0 | 755.2 | |
| 7.97 | 18.22 | 4.02 | 9.18 | 2.65 | 137.24 | 4.93 | 332.15 | 0.1846 | 1224.4 | 893.1 | |
| 0.44 | 1.66 | 0.22 | 0.84 | 3.43 | 137.19 | 4.88 | 334.27 | 0.1963 | 979.6 | 824.7 | |
| 0.88 | -14.00 | 0.44 | -14.00 | 2.83 | 137.03 | 4.72 | 333.60 | 0.1858 | 961.9 | 999999 | |
| 0.00 | 1.49 | 0.00 | 0.75 | 3.55 | 137.01 | 4.70 | 335.36 | 0.1969 | 825.0 | 693.1 | |
| 2.19 | -14.00 | 1.10 | -14.00 | 2.67 | 136.94 | 4.63 | 333.68 | 0.1827 | 1173.7 | 999999 | |
| 1.05 | 6.04 | 0.53 | 3.04 | 2.85 | 136.28 | 3.97 | 337.40 | 0.1808 | 1155.3 | 895.8 | |
| 0.00 | 1.40 | 0.00 | 0.70 | -0.99 | 136.00 | 3.69 | 327.19 | 0.1194 | 830.0 | 596.2 | |
| 0.00 | 1.84 | 0.00 | 0.93 | 3.55 | 135.90 | 3.58 | 340.70 | 0.1897 | 798.0 | 595.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
