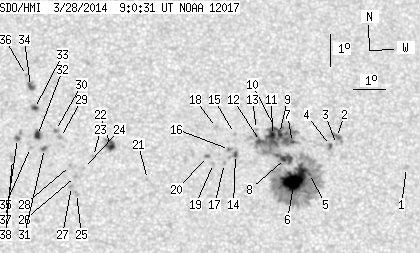

SDO HMI 2014-03-28 09:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.45 | 354.76 | 37.08 | 189.61 | 10.18 | 145.75 | 13.98 | 320.73 | 0.3765 | -299.1 | -219.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-28 09:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.36 | 0.00 | 1.29 | 10.14 | 150.45 | 18.69 | 312.00 | 0.4262 | -690.0 | -582.4 | |
| 0.00 | 7.88 | 0.00 | 4.28 | 11.00 | 148.27 | 16.50 | 317.07 | 0.4111 | -906.0 | -597.5 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 10.78 | 148.25 | 16.49 | 316.72 | 0.4084 | -498.0 | -474.9 | |
| 0.96 | 2.45 | 0.52 | 1.33 | 10.74 | 148.06 | 16.30 | 316.99 | 0.4059 | -912.7 | -785.9 | |
| 0.70 | 277.36 | 0.38 | 148.62 | 9.84 | 147.35 | 15.58 | 316.70 | 0.3876 | -750.4 | -284.1 | |
| 34.42 | -5.00 | 18.42 | -5.00 | 9.64 | 146.87 | 15.10 | 317.24 | 0.3800 | -1301.9 | 999999 | |
| 1.05 | -5.00 | 0.57 | -5.00 | 10.80 | 146.86 | 15.10 | 319.27 | 0.3938 | -1040.9 | 999999 | |
| 7.53 | -5.00 | 4.04 | -5.00 | 10.29 | 146.61 | 14.85 | 318.87 | 0.3850 | -951.3 | 999999 | |
| 2.98 | -5.00 | 1.60 | -5.00 | 11.07 | 146.47 | 14.70 | 320.47 | 0.3930 | 784.9 | 999999 | |
| 0.61 | -5.00 | 0.33 | -5.00 | 11.22 | 146.35 | 14.58 | 320.95 | 0.3937 | 878.4 | 999999 | |
| 3.77 | -5.00 | 2.02 | -5.00 | 11.00 | 146.24 | 14.48 | 320.79 | 0.3899 | 1156.6 | 999999 | |
| 2.89 | -5.00 | 1.55 | -5.00 | 10.80 | 145.85 | 14.09 | 321.22 | 0.3834 | 872.2 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 11.17 | 145.75 | 13.98 | 322.05 | 0.3871 | -578.0 | -431.8 | |
| 1.23 | 4.29 | 0.65 | 2.29 | 10.37 | 145.05 | 13.28 | 322.15 | 0.3700 | -936.6 | -799.7 | |
| 0.00 | 1.23 | 0.00 | 0.66 | 11.03 | 145.05 | 13.28 | 323.23 | 0.3784 | -760.0 | -584.6 | |
| 0.00 | 2.45 | 0.00 | 1.31 | 10.52 | 144.87 | 13.10 | 322.78 | 0.3701 | -1045.0 | -832.4 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 10.08 | 144.69 | 12.93 | 322.41 | 0.3627 | -966.0 | -846.7 | |
| 0.00 | 1.66 | 0.00 | 0.89 | 11.20 | 144.49 | 12.73 | 324.68 | 0.3754 | -754.0 | -562.2 | |
| 0.00 | 1.58 | 0.00 | 0.84 | 10.07 | 144.35 | 12.59 | 323.14 | 0.3592 | -849.0 | -625.8 | |
| 0.44 | 2.10 | 0.23 | 1.12 | 10.28 | 144.17 | 12.41 | 323.89 | 0.3603 | -1052.6 | -831.1 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 9.52 | 142.28 | 10.52 | 327.06 | 0.3326 | 812.0 | 657.9 | |
| 4.47 | 9.28 | 2.35 | 4.88 | 10.56 | 141.18 | 9.41 | 331.46 | 0.3380 | -1020.0 | -684.4 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 10.21 | 140.64 | 8.88 | 332.35 | 0.3287 | 813.0 | 570.1 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 9.83 | 140.32 | 8.56 | 332.66 | 0.3207 | 736.0 | 619.2 | |
| 0.00 | 2.10 | 0.00 | 1.09 | 9.04 | 140.09 | 8.32 | 332.15 | 0.3074 | 773.0 | 681.2 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 9.57 | 140.07 | 8.31 | 332.99 | 0.3151 | 772.0 | 678.8 | |
| 0.00 | 1.58 | 0.00 | 0.82 | 9.26 | 139.94 | 8.18 | 332.90 | 0.3094 | 909.0 | 772.4 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 9.91 | 139.93 | 8.16 | 333.88 | 0.3191 | 759.0 | 679.1 | |
| 0.00 | 2.63 | 0.00 | 1.38 | 10.79 | 139.64 | 7.88 | 335.82 | 0.3301 | 758.0 | 589.0 | |
| 0.00 | 1.93 | 0.00 | 1.01 | 11.00 | 139.50 | 7.73 | 336.49 | 0.3324 | 802.0 | 647.0 | |
| 0.79 | 2.54 | 0.41 | 1.33 | 10.43 | 139.14 | 7.38 | 336.76 | 0.3215 | 1011.6 | 848.8 | |
| 3.24 | 4.99 | 1.70 | 2.61 | 10.84 | 138.94 | 7.17 | 337.83 | 0.3264 | 1052.5 | 800.6 | |
| 1.66 | 3.15 | 0.88 | 1.66 | 11.69 | 138.87 | 7.10 | 338.97 | 0.3390 | 1030.3 | 809.6 | |
| 2.01 | 5.25 | 1.06 | 2.78 | 12.38 | 138.76 | 7.00 | 339.97 | 0.3490 | 1007.0 | 739.1 | |
| 0.00 | 1.23 | 0.00 | 0.64 | 10.46 | 138.71 | 6.95 | 338.01 | 0.3192 | 897.0 | 733.1 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 12.73 | 138.65 | 6.89 | 340.61 | 0.3538 | 835.0 | 699.7 | |
| 0.70 | 4.99 | 0.37 | 2.61 | 10.74 | 138.32 | 6.56 | 339.46 | 0.3211 | 1101.8 | 826.5 | |
| 0.00 | 2.36 | 0.00 | 1.23 | 10.08 | 138.15 | 6.39 | 339.20 | 0.3099 | 730.0 | 570.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
