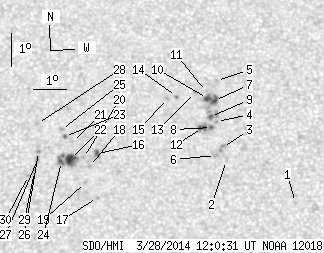

SDO HMI 2014-03-28 12:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.88 | 89.78 | 10.13 | 45.84 | 3.51 | 139.50 | 9.38 | 317.94 | 0.2417 | 50.4 | -96.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-28 12:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.59 | 1.55 | 144.07 | 13.95 | 300.21 | 0.2801 | -840.0 | -579.5 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 2.77 | 141.96 | 11.84 | 308.37 | 0.2626 | -696.0 | -547.1 | |
| 0.00 | 4.12 | 0.00 | 2.11 | 3.16 | 141.84 | 11.72 | 309.81 | 0.2653 | -863.0 | -766.6 | |
| 0.00 | 1.58 | 0.00 | 0.81 | 3.95 | 141.67 | 11.55 | 312.44 | 0.2719 | -869.0 | -736.2 | |
| 0.00 | 1.66 | 0.00 | 0.86 | 5.20 | 141.69 | 11.57 | 315.61 | 0.2869 | -623.0 | -544.9 | |
| 0.00 | 1.84 | 0.00 | 0.94 | 2.91 | 141.63 | 11.51 | 309.62 | 0.2598 | -978.0 | -773.9 | |
| 2.98 | 22.85 | 1.53 | 11.77 | 4.58 | 141.62 | 11.50 | 314.26 | 0.2787 | -1097.0 | -845.0 | |
| 0.79 | 8.06 | 0.40 | 4.14 | 3.76 | 141.52 | 11.39 | 312.32 | 0.2678 | -1076.7 | -913.6 | |
| 1.05 | -7.00 | 0.54 | -7.00 | 4.09 | 141.49 | 11.37 | 313.30 | 0.2714 | -1295.8 | 999999 | |
| 2.45 | -7.00 | 1.26 | -7.00 | 4.64 | 141.41 | 11.29 | 314.94 | 0.2768 | -1117.3 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 4.85 | 141.38 | 11.26 | 315.55 | 0.2791 | -627.0 | -523.9 | |
| 2.28 | -8.00 | 1.17 | -8.00 | 3.75 | 141.24 | 11.12 | 313.01 | 0.2644 | -1196.1 | 999999 | |
| 0.00 | 1.58 | 0.00 | 0.81 | 4.82 | 141.04 | 10.92 | 316.34 | 0.2747 | -732.0 | -580.4 | |
| 0.00 | 1.40 | 0.00 | 0.72 | 4.68 | 140.46 | 10.34 | 317.58 | 0.2664 | -1061.0 | -839.4 | |
| 0.00 | 1.84 | 0.00 | 0.94 | 4.61 | 140.19 | 10.06 | 318.18 | 0.2624 | -892.0 | -674.3 | |
| 1.40 | 3.68 | 0.71 | 1.87 | 2.90 | 138.04 | 7.92 | 320.35 | 0.2166 | 931.4 | 779.2 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 1.57 | 138.03 | 7.91 | 316.12 | 0.1994 | 794.0 | 634.4 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 2.51 | 137.80 | 7.67 | 320.04 | 0.2087 | 871.0 | 686.8 | |
| 0.00 | 1.49 | 0.00 | 0.75 | 2.02 | 137.67 | 7.55 | 318.97 | 0.2009 | 823.0 | 607.5 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 2.78 | 137.62 | 7.49 | 321.53 | 0.2103 | 901.0 | 712.5 | |
| 0.00 | 0.70 | 0.00 | 0.36 | 3.26 | 137.29 | 7.17 | 324.14 | 0.2136 | 757.0 | 599.9 | |
| 7.00 | 19.70 | 3.54 | 9.97 | 2.71 | 137.22 | 7.10 | 322.84 | 0.2053 | 1163.4 | 844.7 | |
| 0.53 | 1.58 | 0.27 | 0.80 | 3.41 | 137.05 | 6.93 | 325.47 | 0.2133 | 903.8 | 753.3 | |
| 1.40 | -22.00 | 0.71 | -22.00 | 2.65 | 136.95 | 6.83 | 323.73 | 0.2017 | 1225.6 | 999999 | |
| 0.00 | 2.19 | 0.00 | 1.11 | 3.62 | 136.96 | 6.84 | 326.36 | 0.2155 | 899.0 | 675.1 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 2.94 | 136.26 | 6.14 | 327.42 | 0.1992 | 1038.0 | 810.2 | |
| 0.00 | 2.71 | 0.00 | 1.37 | 2.70 | 136.23 | 6.11 | 326.89 | 0.1954 | 1062.0 | 883.6 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 3.79 | 136.24 | 6.11 | 329.68 | 0.2115 | 787.0 | 704.6 | |
| 0.00 | 1.93 | 0.00 | 0.97 | 2.33 | 136.14 | 6.01 | 326.25 | 0.1893 | 804.0 | 652.2 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 2.21 | 135.95 | 5.83 | 326.70 | 0.1858 | 1010.0 | 941.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
