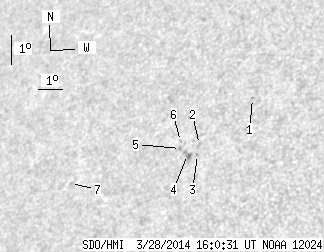

SDO HMI 2014-03-28 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.55 | 0.00 | 8.09 | 18.15 | 89.93 | -37.99 | 55.80 | 0.7093 | -266.3 | -374.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-28 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.66 | 19.63 | 92.26 | -35.67 | 52.39 | 0.6956 | 385.0 | 398.9 | |
| 0.00 | 2.54 | 0.00 | 1.76 | 18.24 | 90.52 | -37.41 | 55.32 | 0.7039 | -506.0 | -494.7 | |
| 0.00 | 1.14 | 0.00 | 0.79 | 17.92 | 90.52 | -37.40 | 55.73 | 0.7018 | -594.0 | -578.9 | |
| 0.00 | 3.85 | 0.00 | 2.69 | 17.95 | 90.11 | -37.81 | 55.96 | 0.7061 | -734.0 | -630.6 | |
| 0.00 | 1.40 | 0.00 | 0.98 | 18.17 | 89.78 | -38.15 | 55.92 | 0.7109 | -473.0 | -425.4 | |
| 0.00 | 0.70 | 0.00 | 0.49 | 18.40 | 89.71 | -38.21 | 55.67 | 0.7130 | -467.0 | -389.2 | |
| 0.00 | 0.96 | 0.00 | 0.72 | 17.38 | 85.44 | -42.48 | 59.55 | 0.7500 | 525.0 | 467.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
