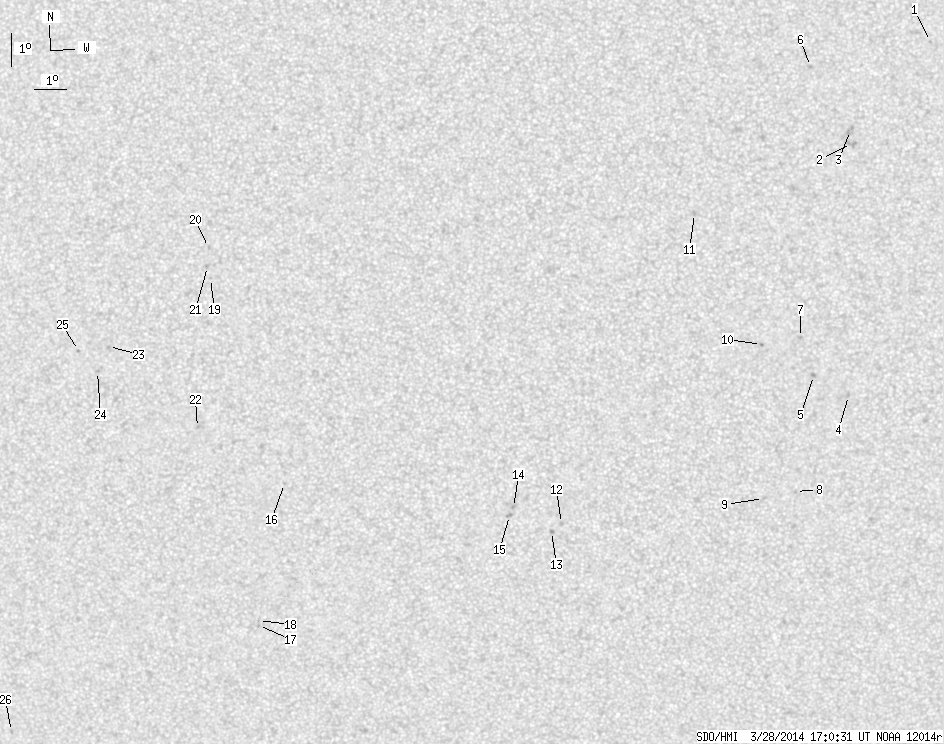

SDO HMI 2014-03-28 17:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 46.68 | 0.00 | 23.77 | -14.95 | 125.18 | -2.19 | 188.87 | 0.2163 | 192.1 | 303.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-28 17:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.53 | -5.95 | 136.43 | 9.06 | 274.37 | 0.1578 | 827.0 | 670.2 | |
| 0.00 | 5.43 | 0.00 | 2.71 | -9.03 | 134.08 | 6.71 | 250.34 | 0.1230 | 780.0 | 756.1 | |
| 0.00 | 5.25 | 0.00 | 2.62 | -8.64 | 134.04 | 6.67 | 253.32 | 0.1204 | 613.0 | 714.9 | |
| 0.00 | 1.66 | 0.00 | 0.84 | -16.62 | 134.18 | 6.81 | 213.34 | 0.2077 | 979.0 | 749.3 | |
| 0.00 | 1.84 | 0.00 | 0.93 | -16.02 | 133.07 | 5.69 | 210.44 | 0.1891 | 996.0 | 821.1 | |
| 0.00 | 1.93 | 0.00 | 0.96 | -6.74 | 132.80 | 5.43 | 269.40 | 0.0944 | 898.0 | 703.8 | |
| 0.00 | 1.49 | 0.00 | 0.75 | -14.88 | 132.63 | 5.26 | 211.88 | 0.1685 | 973.0 | 706.1 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -19.56 | 132.60 | 5.23 | 201.08 | 0.2399 | 719.0 | 646.1 | |
| 0.00 | 1.49 | 0.00 | 0.76 | -19.79 | 131.59 | 4.22 | 196.99 | 0.2379 | 748.0 | 503.4 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -15.10 | 131.43 | 4.05 | 205.04 | 0.1620 | 1111.0 | 911.7 | |
| 0.00 | 2.01 | 0.00 | 1.00 | -11.17 | 129.32 | 1.95 | 203.25 | 0.0849 | 914.0 | 665.0 | |
| 0.00 | 1.75 | 0.00 | 0.89 | -20.56 | 125.15 | -2.22 | 171.39 | 0.2432 | 954.0 | 749.8 | |
| 0.00 | 2.10 | 0.00 | 1.07 | -20.81 | 124.83 | -2.54 | 170.33 | 0.2482 | 845.0 | 655.7 | |
| 0.00 | 1.58 | 0.00 | 0.80 | -20.06 | 123.63 | -3.74 | 165.14 | 0.2401 | 1012.0 | 830.3 | |
| 0.00 | 2.36 | 0.00 | 1.21 | -20.30 | 123.50 | -3.88 | 164.91 | 0.2447 | 970.0 | 753.8 | |
| 0.00 | 0.70 | 0.00 | 0.36 | -19.21 | 116.33 | -11.04 | 140.37 | 0.2848 | -848.0 | -588.0 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -23.58 | 115.12 | -12.25 | 146.37 | 0.3528 | -887.0 | -641.6 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -23.42 | 115.13 | -12.24 | 146.14 | 0.3506 | -803.0 | -675.6 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -12.94 | 114.37 | -13.00 | 116.90 | 0.2470 | -800.0 | -615.8 | |
| 0.00 | 1.58 | 0.00 | 0.80 | -12.00 | 114.35 | -13.02 | 113.34 | 0.2411 | -711.0 | -519.9 | |
| 0.00 | 2.10 | 0.00 | 1.07 | -12.57 | 114.29 | -13.08 | 115.42 | 0.2457 | -763.0 | -682.8 | |
| 0.00 | 1.31 | 0.00 | 0.68 | -17.43 | 113.66 | -13.72 | 129.88 | 0.2961 | -764.0 | -638.7 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -14.89 | 110.99 | -16.39 | 118.28 | 0.3110 | -617.0 | -607.0 | |
| 0.00 | 1.66 | 0.00 | 0.87 | -15.63 | 110.57 | -16.80 | 119.85 | 0.3224 | -746.0 | -620.9 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -14.98 | 110.01 | -17.36 | 117.30 | 0.3259 | -689.0 | -552.2 | |
| 0.00 | 1.40 | 0.00 | 0.79 | -26.63 | 106.15 | -21.22 | 137.06 | 0.4770 | -717.0 | -539.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
