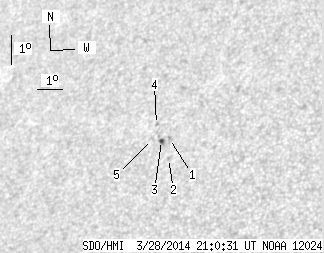

SDO HMI 2014-03-28 21:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.23 | 8.75 | 0.82 | 5.87 | 17.88 | 90.13 | -35.03 | 54.05 | 0.6772 | -603.1 | -542.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-28 21:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.66 | 0.00 | 1.11 | 17.91 | 90.41 | -34.75 | 53.80 | 0.6745 | -788.0 | -712.5 | |
| 0.00 | 1.23 | 0.00 | 0.81 | 17.25 | 90.52 | -34.65 | 54.55 | 0.6688 | -534.0 | -435.7 | |
| 1.23 | 3.41 | 0.82 | 2.29 | 17.87 | 90.11 | -35.05 | 54.08 | 0.6773 | -880.4 | -677.6 | |
| 0.00 | 1.31 | 0.00 | 0.89 | 18.42 | 89.79 | -35.37 | 53.64 | 0.6843 | -457.0 | -356.7 | |
| 0.00 | 1.14 | 0.00 | 0.77 | 17.93 | 89.75 | -35.41 | 54.28 | 0.6814 | -406.0 | -363.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
