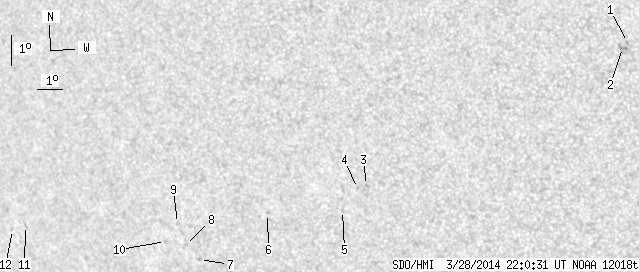

SDO HMI 2014-03-28 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.21 | 0.00 | 10.70 | -26.49 | 87.18 | -37.43 | 124.44 | 0.6488 | 57.7 | 60.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-28 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.63 | -22.84 | 101.75 | -22.86 | 128.63 | 0.4603 | 707.0 | 502.5 | |
| 0.00 | 2.98 | 0.00 | 1.66 | -22.99 | 101.54 | -23.07 | 128.68 | 0.4639 | 757.0 | 732.2 | |
| 0.00 | 1.23 | 0.00 | 0.77 | -26.80 | 90.95 | -33.66 | 126.10 | 0.6146 | 638.0 | 520.4 | |
| 0.00 | 1.23 | 0.00 | 0.77 | -26.87 | 90.57 | -34.05 | 125.96 | 0.6193 | 748.0 | 615.9 | |
| 0.00 | 1.14 | 0.00 | 0.73 | -27.53 | 89.72 | -34.89 | 126.39 | 0.6325 | 609.0 | 441.7 | |
| 0.00 | 1.31 | 0.00 | 0.87 | -27.42 | 86.61 | -38.00 | 124.49 | 0.6654 | 644.0 | 559.1 | |
| 0.00 | 1.14 | 0.00 | 0.80 | -28.66 | 83.04 | -41.57 | 124.46 | 0.7085 | -648.0 | -561.5 | |
| 0.00 | 1.23 | 0.00 | 0.86 | -28.14 | 82.65 | -41.96 | 123.60 | 0.7101 | -687.0 | -549.0 | |
| 0.00 | 1.05 | 0.00 | 0.73 | -27.45 | 82.62 | -41.99 | 122.67 | 0.7076 | -550.0 | -446.3 | |
| 0.00 | 1.05 | 0.00 | 0.75 | -27.98 | 81.81 | -42.80 | 123.03 | 0.7180 | -599.0 | -451.9 | |
| 0.00 | 1.75 | 0.00 | 1.37 | -26.95 | 75.55 | -49.06 | 119.55 | 0.7764 | -687.0 | -557.8 | |
| 0.00 | 0.96 | 0.00 | 0.76 | -27.02 | 74.83 | -49.78 | 119.44 | 0.7833 | -240.0 | -285.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
