SDO HMI 2014-03-28 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.78 | 0.00 | 3.03 | -23.49 | 115.50 | -9.11 | 153.46 | 0.3255 | -663.8 | -508.2 | |
|
previous
or next observation for the same group /

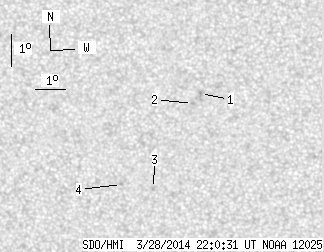

back to the solar disc SDO HMI 2014-03-28 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.93 | 0.00 | 1.00 | -22.17 | 116.46 | -8.16 | 153.85 | 0.2994 | -985.0 | -805.7 | |
| 0.00 | 1.40 | 0.00 | 0.73 | -22.48 | 116.18 | -8.44 | 153.57 | 0.3059 | -873.0 | -637.8 | |
| 0.00 | 1.75 | 0.00 | 0.93 | -25.11 | 114.69 | -9.92 | 153.81 | 0.3549 | -70.0 | -128.0 | |
| 0.00 | 0.70 | 0.00 | 0.37 | -24.97 | 113.63 | -10.98 | 151.27 | 0.3608 | -727.0 | -402.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
