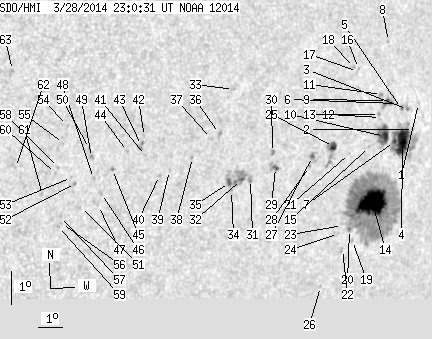

SDO HMI 2014-03-28 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90.80 | 472.37 | 68.22 | 349.87 | -13.26 | 172.30 | 48.24 | 258.13 | 0.7433 | 350.0 | 246.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-28 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.68 | -10.74 | 174.75 | 50.69 | 261.61 | 0.7707 | 194.0 | 151.2 | |
| 0.00 | 0.61 | 0.00 | 0.47 | -11.53 | 174.69 | 50.63 | 260.58 | 0.7702 | -146.0 | -136.3 | |
| 0.44 | 4.82 | 0.34 | 3.68 | -10.96 | 174.27 | 50.21 | 261.31 | 0.7654 | 612.8 | 573.7 | |
| 22.24 | 62.51 | 17.05 | 47.98 | -11.93 | 174.26 | 50.20 | 260.04 | 0.7655 | 657.8 | 219.8 | |
| 0.53 | -3.00 | 0.40 | -3.00 | -10.95 | 173.98 | 49.92 | 261.32 | 0.7622 | 624.5 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.93 | -10.83 | 173.72 | 49.66 | 261.48 | 0.7593 | 558.0 | 515.8 | |
| 1.84 | -4.00 | 1.40 | -4.00 | -11.96 | 173.89 | 49.83 | 259.99 | 0.7614 | 793.8 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.78 | -9.02 | 172.98 | 48.92 | 263.89 | 0.7510 | 396.0 | 334.8 | |
| 1.05 | 8.14 | 0.79 | 6.12 | -10.77 | 173.28 | 49.22 | 261.55 | 0.7544 | 659.2 | 636.0 | |
| 6.22 | 21.45 | 4.68 | 16.13 | -11.85 | 173.39 | 49.33 | 260.11 | 0.7558 | 822.9 | 678.4 | |
| 0.00 | 1.84 | 0.00 | 1.37 | -10.62 | 172.97 | 48.91 | 261.75 | 0.7508 | 707.0 | 534.1 | |
| 0.00 | 0.35 | 0.00 | 0.26 | -11.31 | 173.07 | 49.01 | 260.84 | 0.7521 | 538.0 | 575.5 | |
| 0.00 | 1.31 | 0.00 | 0.98 | -11.22 | 173.01 | 48.95 | 260.95 | 0.7513 | 640.0 | 527.2 | |
| 47.54 | 271.84 | 35.85 | 205.28 | -13.86 | 173.35 | 49.29 | 257.45 | 0.7563 | 874.6 | 324.0 | |
| 0.00 | 0.96 | 0.00 | 0.72 | -12.21 | 172.77 | 48.71 | 259.62 | 0.7490 | 569.0 | 445.1 | |
| 0.00 | 0.88 | 0.00 | 0.64 | -9.94 | 171.77 | 47.71 | 262.67 | 0.7370 | -291.0 | -287.7 | |
| 0.00 | 1.05 | 0.00 | 0.77 | -10.03 | 171.74 | 47.68 | 262.54 | 0.7367 | -445.0 | -268.0 | |
| 0.00 | 0.70 | 0.00 | 0.51 | -9.92 | 171.59 | 47.53 | 262.69 | 0.7349 | -545.0 | -466.5 | |
| 0.00 | 1.23 | 0.00 | 0.92 | -15.07 | 172.77 | 48.71 | 255.79 | 0.7507 | 424.0 | 343.7 | |
| 0.61 | -14.00 | 0.46 | -14.00 | -14.76 | 172.53 | 48.47 | 256.19 | 0.7478 | 682.3 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.64 | -12.50 | 171.92 | 47.86 | 259.19 | 0.7393 | 450.0 | 366.5 | |
| 0.00 | 1.40 | 0.00 | 1.04 | -15.38 | 172.39 | 48.33 | 255.34 | 0.7468 | 545.0 | 499.8 | |
| 0.00 | 0.26 | 0.00 | 0.19 | -14.67 | 172.18 | 48.12 | 256.28 | 0.7437 | 619.0 | 659.3 | |
| 0.00 | 0.53 | 0.00 | 0.39 | -14.92 | 172.06 | 48.00 | 255.93 | 0.7427 | 587.0 | 517.2 | |
| 4.29 | 14.18 | 3.10 | 10.24 | -12.35 | 171.15 | 47.09 | 259.35 | 0.7304 | 723.8 | 223.1 | |
| 0.00 | 1.05 | 0.00 | 0.77 | -16.57 | 171.74 | 47.68 | 253.66 | 0.7408 | -496.0 | -419.0 | |
| 0.96 | 5.25 | 0.69 | 3.74 | -12.72 | 170.30 | 46.24 | 258.78 | 0.7206 | 719.8 | 405.4 | |
| 0.00 | 1.14 | 0.00 | 0.81 | -13.03 | 170.24 | 46.18 | 258.35 | 0.7201 | -89.0 | -86.2 | |
| 1.66 | 5.95 | 1.15 | 4.13 | -13.18 | 168.78 | 44.72 | 258.01 | 0.7027 | -537.7 | -382.4 | |
| 0.00 | 2.01 | 0.00 | 1.39 | -12.74 | 168.55 | 44.49 | 258.62 | 0.6996 | 680.0 | 640.9 | |
| 0.00 | 3.33 | 0.00 | 2.27 | -13.62 | 167.80 | 43.74 | 257.28 | 0.6912 | -135.0 | -50.4 | |
| 1.58 | 19.70 | 1.07 | 13.33 | -13.65 | 167.43 | 43.37 | 257.19 | 0.6866 | -270.9 | -229.7 | |
| 0.00 | 1.66 | 0.00 | 1.11 | -10.99 | 166.55 | 42.49 | 261.03 | 0.6736 | 614.0 | 509.3 | |
| 0.00 | 1.05 | 0.00 | 0.71 | -14.01 | 167.09 | 43.03 | 256.62 | 0.6828 | -581.0 | -503.7 | |
| 1.84 | -32.00 | 1.24 | -32.00 | -13.78 | 166.95 | 42.89 | 256.95 | 0.6809 | -785.5 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.57 | -12.35 | 166.23 | 42.17 | 258.99 | 0.6704 | 601.0 | 518.6 | |
| 0.00 | 1.93 | 0.00 | 1.28 | -12.52 | 165.93 | 41.87 | 258.70 | 0.6668 | 582.0 | 521.9 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -13.15 | 165.27 | 41.21 | 257.68 | 0.6591 | -370.0 | -274.3 | |
| 0.00 | 1.23 | 0.00 | 0.80 | -13.60 | 164.43 | 40.37 | 256.86 | 0.6488 | -332.0 | -376.8 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -13.78 | 164.06 | 40.00 | 256.53 | 0.6443 | -529.0 | -482.5 | |
| 0.00 | 0.79 | 0.00 | 0.50 | -13.22 | 163.39 | 39.33 | 257.30 | 0.6348 | -435.0 | -383.3 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -12.66 | 163.25 | 39.19 | 258.17 | 0.6321 | -580.0 | -477.6 | |
| 0.00 | 3.41 | 0.00 | 2.18 | -12.94 | 163.18 | 39.12 | 257.72 | 0.6316 | -602.0 | -590.0 | |
| 0.00 | 1.05 | 0.00 | 0.67 | -13.15 | 162.66 | 38.60 | 257.30 | 0.6251 | -509.0 | -432.8 | |
| 0.00 | 1.14 | 0.00 | 0.72 | -13.73 | 162.18 | 38.12 | 256.29 | 0.6196 | -661.0 | -566.1 | |
| 0.00 | 1.49 | 0.00 | 0.93 | -14.48 | 161.90 | 37.84 | 255.02 | 0.6171 | -479.0 | -429.4 | |
| 0.00 | 0.44 | 0.00 | 0.28 | -14.85 | 161.85 | 37.79 | 254.42 | 0.6172 | -393.0 | -323.2 | |
| 0.00 | 1.58 | 0.00 | 0.98 | -14.05 | 161.50 | 37.44 | 255.64 | 0.6110 | -706.0 | -578.8 | |
| 0.00 | 1.93 | 0.00 | 1.20 | -13.43 | 161.31 | 37.25 | 256.62 | 0.6074 | -722.0 | -577.8 | |
| 0.00 | 1.31 | 0.00 | 0.82 | -13.17 | 161.18 | 37.12 | 257.03 | 0.6053 | -540.0 | -496.8 | |
| 0.00 | 0.61 | 0.00 | 0.38 | -14.96 | 161.17 | 37.11 | 254.09 | 0.6084 | -495.0 | -414.1 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -14.25 | 160.84 | 36.78 | 255.17 | 0.6026 | -824.0 | -715.2 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -14.08 | 160.65 | 36.59 | 255.41 | 0.5997 | -704.0 | -546.3 | |
| 0.00 | 1.14 | 0.00 | 0.70 | -12.53 | 160.23 | 36.17 | 257.92 | 0.5914 | -577.0 | -466.9 | |
| 0.00 | 0.53 | 0.00 | 0.32 | -13.08 | 160.17 | 36.11 | 256.98 | 0.5914 | -711.0 | -634.2 | |
| 0.00 | 0.53 | 0.00 | 0.33 | -15.49 | 160.54 | 36.48 | 253.06 | 0.6012 | -662.0 | -536.0 | |
| 0.00 | 1.31 | 0.00 | 0.81 | -15.28 | 160.46 | 36.40 | 253.38 | 0.5997 | -626.0 | -547.3 | |
| 0.00 | 1.14 | 0.00 | 0.70 | -13.81 | 160.11 | 36.05 | 255.74 | 0.5918 | -637.0 | -509.9 | |
| 0.00 | 1.14 | 0.00 | 0.70 | -15.59 | 160.45 | 36.39 | 252.87 | 0.6002 | -611.0 | -442.1 | |
| 0.00 | 0.53 | 0.00 | 0.32 | -14.00 | 160.03 | 35.97 | 255.40 | 0.5911 | -526.0 | -452.2 | |
| 0.00 | 1.14 | 0.00 | 0.70 | -14.66 | 159.65 | 35.59 | 254.20 | 0.5874 | -607.0 | -525.9 | |
| 0.00 | 0.70 | 0.00 | 0.42 | -13.92 | 158.50 | 34.44 | 255.18 | 0.5700 | -601.0 | -489.5 | |
| 0.00 | 1.14 | 0.00 | 0.68 | -11.02 | 157.96 | 33.90 | 260.20 | 0.5577 | -714.0 | -618.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
