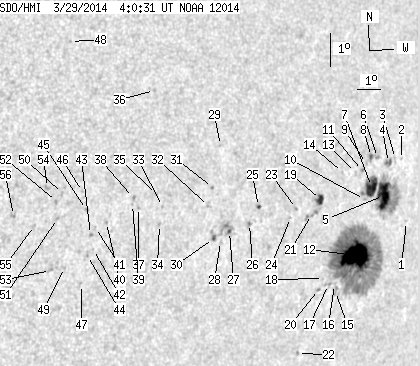

SDO HMI 2014-03-29 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.44 | 441.16 | 69.99 | 347.14 | -13.27 | 172.54 | 51.23 | 258.28 | 0.7762 | 434.5 | 221.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-29 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.22 | -12.60 | 175.76 | 54.45 | 259.28 | 0.8104 | 345.0 | 288.0 | |
| 0.00 | 0.53 | 0.00 | 0.43 | -10.79 | 174.98 | 53.67 | 261.52 | 0.8024 | 294.0 | 230.3 | |
| 0.00 | 1.23 | 0.00 | 1.01 | -10.79 | 174.67 | 53.36 | 261.53 | 0.7992 | 388.0 | 360.7 | |
| 0.00 | 4.56 | 0.00 | 3.71 | -10.94 | 174.35 | 53.04 | 261.34 | 0.7959 | 685.0 | 583.5 | |
| 24.44 | 88.67 | 19.92 | 72.16 | -11.94 | 174.37 | 53.06 | 260.08 | 0.7961 | 668.3 | 151.5 | |
| 0.00 | 1.75 | 0.00 | 1.41 | -10.84 | 173.77 | 52.46 | 261.47 | 0.7898 | 720.0 | 622.9 | |
| 14.81 | -5.00 | 11.88 | -5.00 | -11.72 | 173.70 | 52.39 | 260.34 | 0.7890 | 808.0 | 999999 | |
| 0.88 | 2.80 | 0.70 | 2.24 | -10.83 | 173.47 | 52.16 | 261.47 | 0.7866 | 678.4 | 607.9 | |
| 0.00 | 1.14 | 0.00 | 0.91 | -11.06 | 173.28 | 51.97 | 261.18 | 0.7845 | 697.0 | 643.8 | |
| 0.00 | 0.96 | 0.00 | 0.77 | -12.14 | 173.46 | 52.15 | 259.80 | 0.7866 | 618.0 | 557.8 | |
| 0.00 | 1.05 | 0.00 | 0.83 | -11.29 | 173.13 | 51.82 | 260.89 | 0.7830 | 806.0 | 737.4 | |
| 40.30 | 259.43 | 32.26 | 208.15 | -13.84 | 173.51 | 52.20 | 257.64 | 0.7877 | 910.9 | 316.0 | |
| 0.00 | 0.88 | 0.00 | 0.69 | -11.38 | 172.81 | 51.50 | 260.77 | 0.7796 | 555.0 | 483.5 | |
| 0.00 | 0.96 | 0.00 | 0.75 | -11.43 | 172.19 | 50.88 | 260.69 | 0.7728 | 500.0 | 390.5 | |
| 0.00 | 2.10 | 0.00 | 1.66 | -15.00 | 172.88 | 51.57 | 256.12 | 0.7817 | 543.0 | 478.8 | |
| 0.00 | 1.58 | 0.00 | 1.24 | -14.79 | 172.76 | 51.45 | 256.38 | 0.7803 | 654.0 | 600.0 | |
| 0.00 | 2.37 | 0.00 | 1.85 | -14.82 | 172.47 | 51.16 | 256.32 | 0.7773 | 670.0 | 626.0 | |
| 0.00 | 0.35 | 0.00 | 0.27 | -14.66 | 172.18 | 50.86 | 256.50 | 0.7740 | 767.0 | 711.8 | |
| 4.38 | 6.57 | 3.35 | 5.02 | -12.33 | 171.35 | 50.04 | 259.50 | 0.7639 | 757.6 | 578.2 | |
| 0.00 | 1.14 | 0.00 | 0.89 | -15.01 | 172.04 | 50.73 | 256.04 | 0.7728 | 519.0 | 531.3 | |
| 0.00 | 4.73 | 0.00 | 3.60 | -12.81 | 171.05 | 49.74 | 258.85 | 0.7607 | -110.0 | -60.1 | |
| 0.00 | 1.14 | 0.00 | 0.88 | -17.01 | 171.70 | 50.39 | 253.42 | 0.7710 | -544.0 | -463.7 | |
| 0.00 | 0.79 | 0.00 | 0.59 | -12.69 | 170.31 | 49.00 | 258.97 | 0.7524 | 728.0 | 682.4 | |
| 0.00 | 0.53 | 0.00 | 0.39 | -12.98 | 170.10 | 48.79 | 258.57 | 0.7502 | -497.0 | -419.2 | |
| 0.96 | 1.84 | 0.70 | 1.33 | -12.78 | 168.57 | 47.26 | 258.76 | 0.7326 | 574.1 | 484.1 | |
| 0.00 | 1.31 | 0.00 | 0.95 | -13.32 | 168.30 | 46.99 | 258.00 | 0.7298 | -545.0 | -437.7 | |
| 0.79 | 17.26 | 0.56 | 12.22 | -13.63 | 167.48 | 46.17 | 257.50 | 0.7204 | -376.6 | -207.4 | |
| 0.00 | 0.88 | 0.00 | 0.62 | -13.96 | 167.16 | 45.85 | 257.01 | 0.7170 | -345.0 | -359.7 | |
| 0.00 | 1.05 | 0.00 | 0.73 | -11.10 | 166.52 | 45.20 | 260.99 | 0.7074 | 603.0 | 446.7 | |
| 0.88 | -27.00 | 0.62 | -27.00 | -13.89 | 166.83 | 45.52 | 257.07 | 0.7130 | -778.5 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.80 | -12.38 | 166.43 | 45.12 | 259.17 | 0.7070 | 631.0 | 594.2 | |
| 0.00 | 1.05 | 0.00 | 0.73 | -12.96 | 166.39 | 45.08 | 258.35 | 0.7069 | 740.0 | 630.8 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -13.11 | 164.45 | 43.14 | 257.94 | 0.6833 | -438.0 | -393.4 | |
| 0.00 | 1.40 | 0.00 | 0.95 | -13.66 | 164.44 | 43.13 | 257.14 | 0.6838 | -574.0 | -481.8 | |
| 0.00 | 0.79 | 0.00 | 0.53 | -12.77 | 164.12 | 42.81 | 258.40 | 0.6789 | -505.0 | -481.9 | |
| 0.00 | 1.49 | 0.00 | 0.99 | -9.68 | 163.48 | 42.17 | 262.97 | 0.6691 | 351.0 | 296.5 | |
| 0.00 | 1.05 | 0.00 | 0.70 | -13.22 | 163.46 | 42.15 | 257.67 | 0.6711 | -485.0 | -375.6 | |
| 0.00 | 1.93 | 0.00 | 1.28 | -12.93 | 163.20 | 41.89 | 258.06 | 0.6674 | -528.0 | -498.1 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -13.14 | 163.20 | 41.89 | 257.75 | 0.6677 | -557.0 | -459.3 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -13.76 | 162.26 | 40.95 | 256.69 | 0.6564 | -650.0 | -530.3 | |
| 0.00 | 0.79 | 0.00 | 0.51 | -13.94 | 161.85 | 40.54 | 256.35 | 0.6514 | -515.0 | -392.6 | |
| 0.00 | 0.79 | 0.00 | 0.51 | -14.61 | 161.91 | 40.60 | 255.34 | 0.6532 | -439.0 | -386.9 | |
| 0.00 | 1.40 | 0.00 | 0.91 | -14.17 | 161.69 | 40.38 | 255.98 | 0.6498 | -632.0 | -560.7 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -14.81 | 161.71 | 40.40 | 255.00 | 0.6510 | -494.0 | -449.2 | |
| 0.00 | 1.49 | 0.00 | 0.96 | -13.43 | 161.38 | 40.07 | 257.07 | 0.6447 | -730.0 | -591.8 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -12.90 | 161.11 | 39.80 | 257.85 | 0.6406 | -593.0 | -466.8 | |
| 0.00 | 0.61 | 0.00 | 0.40 | -15.69 | 161.67 | 40.36 | 253.64 | 0.6520 | -367.0 | -411.1 | |
| 0.00 | 0.88 | 0.00 | 0.55 | -8.46 | 159.96 | 38.65 | 264.83 | 0.6226 | -576.0 | -479.3 | |
| 0.00 | 0.70 | 0.00 | 0.45 | -15.23 | 160.87 | 39.56 | 254.18 | 0.6410 | -642.0 | -581.4 | |
| 0.00 | 1.75 | 0.00 | 1.12 | -13.02 | 160.34 | 39.03 | 257.55 | 0.6306 | -642.0 | -501.7 | |
| 0.00 | 1.58 | 0.00 | 1.00 | -13.78 | 160.29 | 38.98 | 256.34 | 0.6309 | -640.0 | -504.9 | |
| 0.00 | 1.75 | 0.00 | 1.11 | -13.28 | 160.15 | 38.84 | 257.12 | 0.6284 | -710.0 | -557.0 | |
| 0.00 | 1.75 | 0.00 | 1.12 | -15.36 | 160.34 | 39.03 | 253.87 | 0.6344 | -675.0 | -564.2 | |
| 0.00 | 2.19 | 0.00 | 1.38 | -12.88 | 159.72 | 38.41 | 257.68 | 0.6222 | -734.0 | -635.1 | |
| 0.00 | 1.49 | 0.00 | 0.94 | -14.06 | 159.43 | 38.12 | 255.75 | 0.6201 | -702.0 | -595.9 | |
| 0.00 | 2.80 | 0.00 | 1.75 | -13.81 | 158.56 | 37.25 | 255.97 | 0.6082 | -697.0 | -661.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
