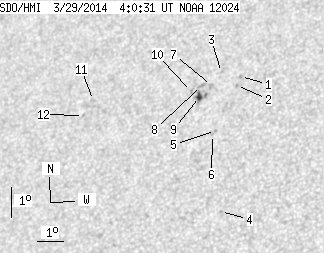

SDO HMI 2014-03-29 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.98 | 22.36 | 1.91 | 14.34 | 17.67 | 89.86 | -31.45 | 51.41 | 0.6381 | -460.3 | -396.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-29 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.72 | 18.33 | 91.53 | -29.79 | 49.10 | 0.6262 | -731.0 | -647.3 | |
| 0.00 | 0.88 | 0.00 | 0.55 | 18.04 | 91.43 | -29.88 | 49.55 | 0.6247 | -802.0 | -722.8 | |
| 0.00 | 0.88 | 0.00 | 0.56 | 18.51 | 90.80 | -30.52 | 49.54 | 0.6351 | -449.0 | -400.1 | |
| 0.00 | 1.05 | 0.00 | 0.64 | 13.96 | 91.53 | -29.78 | 54.97 | 0.5909 | -658.0 | -447.2 | |
| 0.00 | 0.88 | 0.00 | 0.55 | 16.60 | 90.93 | -30.38 | 51.88 | 0.6183 | -821.0 | -660.4 | |
| 0.00 | 0.61 | 0.00 | 0.39 | 16.48 | 90.84 | -30.47 | 52.12 | 0.6183 | -568.0 | -489.4 | |
| 0.00 | 2.37 | 0.00 | 1.51 | 18.10 | 90.51 | -30.80 | 50.32 | 0.6348 | -697.0 | -585.2 | |
| 0.00 | 2.10 | 0.00 | 1.35 | 18.12 | 90.14 | -31.18 | 50.62 | 0.6388 | -597.0 | -497.2 | |
| 2.98 | 7.62 | 1.91 | 4.88 | 17.76 | 90.13 | -31.18 | 51.08 | 0.6360 | -821.4 | -618.3 | |
| 0.00 | 2.02 | 0.00 | 1.30 | 17.95 | 89.80 | -31.51 | 51.13 | 0.6409 | -404.0 | -394.0 | |
| 0.00 | 1.93 | 0.00 | 1.30 | 17.91 | 86.11 | -35.20 | 54.16 | 0.6790 | 708.0 | 431.8 | |
| 0.00 | 0.88 | 0.00 | 0.59 | 17.44 | 85.83 | -35.48 | 54.96 | 0.6787 | 646.0 | 584.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
