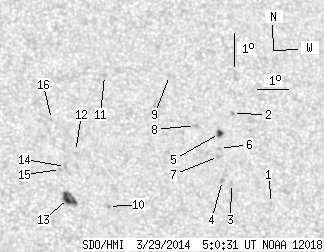

SDO HMI 2014-03-29 05:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.04 | 36.01 | 5.82 | 19.17 | 3.71 | 139.30 | 18.54 | 298.99 | 0.3639 | 6.7 | -121.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-29 05:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.49 | 0.00 | 0.81 | 2.71 | 143.55 | 22.78 | 291.76 | 0.4182 | -693.0 | -485.1 | |
| 0.00 | 1.49 | 0.00 | 0.81 | 5.40 | 142.36 | 21.60 | 298.80 | 0.4200 | -665.0 | -540.8 | |
| 0.00 | 1.66 | 0.00 | 0.90 | 3.26 | 142.26 | 21.50 | 294.25 | 0.4030 | -713.0 | -552.8 | |
| 0.00 | 1.75 | 0.00 | 0.95 | 3.34 | 141.98 | 21.21 | 294.74 | 0.3994 | -933.0 | -800.4 | |
| 2.45 | 3.59 | 1.33 | 1.95 | 4.77 | 141.92 | 21.16 | 297.97 | 0.4090 | -958.6 | -768.6 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 4.31 | 141.91 | 21.14 | 296.99 | 0.4053 | -930.0 | -723.3 | |
| 0.00 | 1.58 | 0.00 | 0.85 | 4.07 | 141.87 | 21.10 | 296.49 | 0.4030 | -912.0 | -737.9 | |
| 0.00 | 1.93 | 0.00 | 1.04 | 4.98 | 141.16 | 20.39 | 299.35 | 0.3999 | -843.0 | -708.5 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 6.48 | 140.38 | 19.62 | 303.56 | 0.4020 | -722.0 | -511.5 | |
| 0.00 | 1.23 | 0.00 | 0.65 | 2.41 | 138.33 | 17.57 | 296.89 | 0.3396 | 863.0 | 700.4 | |
| 0.00 | 1.75 | 0.00 | 0.94 | 6.41 | 138.31 | 17.55 | 306.46 | 0.3741 | -862.0 | -697.3 | |
| 0.00 | 0.44 | 0.00 | 0.23 | 4.05 | 137.33 | 16.56 | 302.57 | 0.3389 | 605.0 | 645.8 | |
| 8.59 | 12.71 | 4.49 | 6.65 | 2.61 | 137.08 | 16.32 | 299.24 | 0.3231 | 1030.6 | 717.7 | |
| 0.00 | 2.37 | 0.00 | 1.24 | 3.58 | 137.01 | 16.24 | 301.91 | 0.3303 | 949.0 | 677.1 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 3.49 | 136.85 | 16.08 | 301.92 | 0.3272 | 884.0 | 652.4 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 5.00 | 136.60 | 15.84 | 306.12 | 0.3380 | 753.0 | 529.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
