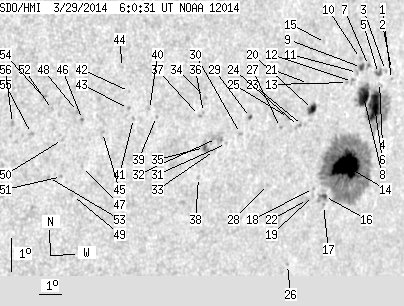

SDO HMI 2014-03-29 06:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.70 | 441.18 | 72.87 | 357.11 | -13.28 | 172.81 | 52.60 | 258.33 | 0.7909 | 484.0 | 228.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-29 06:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.60 | -11.09 | 175.13 | 54.91 | 261.13 | 0.8149 | 340.0 | 330.4 | |
| 0.00 | 0.88 | 0.00 | 0.74 | -10.79 | 175.05 | 54.83 | 261.50 | 0.8141 | 322.0 | 264.9 | |
| 0.00 | 1.23 | 0.00 | 1.03 | -10.85 | 174.75 | 54.53 | 261.43 | 0.8111 | 322.0 | 369.1 | |
| 0.00 | 0.35 | 0.00 | 0.29 | -11.24 | 174.53 | 54.32 | 260.96 | 0.8090 | 388.0 | 306.5 | |
| 1.58 | 4.38 | 1.32 | 3.66 | -10.97 | 174.41 | 54.19 | 261.28 | 0.8077 | 685.5 | 517.0 | |
| 21.56 | 90.17 | 18.05 | 75.47 | -11.94 | 174.47 | 54.25 | 260.08 | 0.8083 | 708.3 | 141.7 | |
| 0.44 | 2.37 | 0.36 | 1.95 | -10.78 | 173.84 | 53.62 | 261.52 | 0.8019 | 674.4 | 591.9 | |
| 14.46 | -6.00 | 11.93 | -6.00 | -11.73 | 173.83 | 53.62 | 260.34 | 0.8019 | 882.9 | 999999 | |
| 1.93 | 3.24 | 1.58 | 2.66 | -10.88 | 173.50 | 53.29 | 261.41 | 0.7984 | 687.9 | 598.5 | |
| 0.00 | 1.40 | 0.00 | 1.15 | -10.61 | 173.39 | 53.17 | 261.74 | 0.7972 | 266.0 | 237.6 | |
| 0.00 | 1.84 | 0.00 | 1.50 | -11.04 | 173.34 | 53.12 | 261.20 | 0.7967 | 725.0 | 624.8 | |
| 0.00 | 2.72 | 0.00 | 2.21 | -11.33 | 173.16 | 52.95 | 260.83 | 0.7949 | 715.0 | 626.5 | |
| 0.00 | 1.31 | 0.00 | 1.06 | -11.38 | 172.92 | 52.70 | 260.77 | 0.7924 | 656.0 | 587.1 | |
| 40.05 | 254.48 | 32.89 | 209.33 | -13.88 | 173.61 | 53.40 | 257.64 | 0.8001 | 1007.1 | 319.2 | |
| 0.00 | 0.79 | 0.00 | 0.62 | -10.29 | 171.56 | 51.34 | 262.16 | 0.7779 | -262.0 | -214.0 | |
| 2.02 | 7.89 | 1.63 | 6.36 | -14.87 | 172.81 | 52.60 | 256.35 | 0.7923 | 730.0 | 561.9 | |
| 0.00 | 1.23 | 0.00 | 0.99 | -15.14 | 172.86 | 52.64 | 256.01 | 0.7929 | 550.0 | 463.8 | |
| 0.00 | 0.96 | 0.00 | 0.77 | -14.68 | 172.19 | 51.97 | 256.55 | 0.7857 | 671.0 | 646.1 | |
| 0.00 | 0.88 | 0.00 | 0.70 | -14.89 | 172.26 | 52.04 | 256.29 | 0.7866 | 688.0 | 605.5 | |
| 4.91 | 7.36 | 3.84 | 5.76 | -12.34 | 171.43 | 51.21 | 259.52 | 0.7767 | 774.1 | 528.1 | |
| 0.00 | 0.96 | 0.00 | 0.75 | -11.58 | 171.04 | 50.82 | 260.49 | 0.7723 | 555.0 | 393.8 | |
| 0.00 | 2.02 | 0.00 | 1.60 | -15.03 | 172.00 | 51.79 | 256.09 | 0.7840 | 502.0 | 398.5 | |
| 0.00 | 0.96 | 0.00 | 0.75 | -12.86 | 171.08 | 50.86 | 258.84 | 0.7731 | -67.0 | -34.3 | |
| 0.00 | 2.98 | 0.00 | 2.31 | -12.90 | 170.90 | 50.68 | 258.77 | 0.7711 | -480.0 | -339.1 | |
| 0.00 | 1.31 | 0.00 | 1.01 | -12.68 | 170.35 | 50.14 | 259.04 | 0.7651 | 692.0 | 636.5 | |
| 0.00 | 0.79 | 0.00 | 0.62 | -17.06 | 171.73 | 51.51 | 253.48 | 0.7828 | -589.0 | -485.1 | |
| 0.00 | 0.88 | 0.00 | 0.67 | -13.01 | 170.06 | 49.84 | 258.59 | 0.7620 | -316.0 | -274.3 | |
| 0.00 | 1.14 | 0.00 | 0.87 | -14.75 | 169.94 | 49.73 | 256.28 | 0.7618 | 201.0 | 126.1 | |
| 0.70 | 1.84 | 0.52 | 1.36 | -12.83 | 168.60 | 48.38 | 258.75 | 0.7455 | 667.9 | 577.4 | |
| 0.00 | 1.58 | 0.00 | 1.16 | -13.34 | 168.27 | 48.05 | 258.03 | 0.7421 | -638.0 | -485.8 | |
| 0.00 | 1.23 | 0.00 | 0.89 | -13.69 | 167.71 | 47.50 | 257.52 | 0.7360 | -425.0 | -325.4 | |
| 0.00 | 9.03 | 0.00 | 6.52 | -13.58 | 167.23 | 47.01 | 257.63 | 0.7303 | -65.0 | -93.5 | |
| 0.00 | 0.88 | 0.00 | 0.63 | -13.95 | 167.23 | 47.02 | 257.13 | 0.7306 | -581.0 | -490.5 | |
| 0.00 | 0.96 | 0.00 | 0.69 | -12.40 | 166.45 | 46.23 | 259.20 | 0.7203 | 725.0 | 613.9 | |
| 1.05 | 5.35 | 0.75 | 3.83 | -13.89 | 166.77 | 46.55 | 257.16 | 0.7252 | -801.7 | -608.5 | |
| 0.00 | 0.79 | 0.00 | 0.56 | -12.85 | 166.46 | 46.25 | 258.57 | 0.7208 | 609.0 | 529.1 | |
| 0.00 | 1.05 | 0.00 | 0.75 | -12.96 | 166.31 | 46.09 | 258.42 | 0.7191 | 686.0 | 658.9 | |
| 0.00 | 0.70 | 0.00 | 0.50 | -14.81 | 166.74 | 46.53 | 255.89 | 0.7258 | -430.0 | -351.6 | |
| 0.00 | 1.14 | 0.00 | 0.78 | -13.13 | 164.47 | 44.25 | 258.01 | 0.6971 | -384.0 | -383.6 | |
| 0.00 | 0.88 | 0.00 | 0.60 | -12.95 | 164.13 | 43.91 | 258.24 | 0.6927 | -560.0 | -464.1 | |
| 0.00 | 1.23 | 0.00 | 0.83 | -13.27 | 163.52 | 43.30 | 257.71 | 0.6855 | -583.0 | -505.7 | |
| 0.00 | 0.70 | 0.00 | 0.47 | -12.48 | 163.18 | 42.96 | 258.84 | 0.6806 | -725.0 | -555.2 | |
| 0.00 | 1.14 | 0.00 | 0.77 | -12.99 | 163.24 | 43.03 | 258.10 | 0.6818 | -705.0 | -603.0 | |
| 0.00 | 0.70 | 0.00 | 0.47 | -11.78 | 162.75 | 42.53 | 259.83 | 0.6747 | -400.0 | -303.5 | |
| 0.00 | 1.23 | 0.00 | 0.82 | -13.79 | 162.33 | 42.11 | 256.80 | 0.6712 | -605.0 | -477.3 | |
| 0.00 | 1.14 | 0.00 | 0.75 | -13.46 | 161.43 | 41.21 | 257.17 | 0.6595 | -705.0 | -579.7 | |
| 0.00 | 1.14 | 0.00 | 0.75 | -14.87 | 161.74 | 41.53 | 255.10 | 0.6654 | -498.0 | -390.7 | |
| 0.00 | 1.14 | 0.00 | 0.75 | -13.23 | 161.18 | 40.96 | 257.48 | 0.6560 | -604.0 | -554.2 | |
| 0.00 | 1.23 | 0.00 | 0.81 | -15.77 | 161.54 | 41.33 | 253.72 | 0.6644 | -529.0 | -459.3 | |
| 0.00 | 1.14 | 0.00 | 0.74 | -14.12 | 160.75 | 40.54 | 256.07 | 0.6517 | -532.0 | -469.8 | |
| 0.00 | 1.14 | 0.00 | 0.75 | -15.23 | 160.96 | 40.74 | 254.41 | 0.6561 | -685.0 | -604.7 | |
| 0.00 | 1.23 | 0.00 | 0.79 | -13.25 | 160.17 | 39.95 | 257.32 | 0.6430 | -699.0 | -638.2 | |
| 0.00 | 0.53 | 0.00 | 0.34 | -15.30 | 160.44 | 40.23 | 254.21 | 0.6497 | -605.0 | -552.5 | |
| 0.00 | 3.33 | 0.00 | 2.14 | -12.91 | 159.78 | 39.57 | 257.79 | 0.6375 | -711.0 | -518.4 | |
| 0.00 | 1.58 | 0.00 | 1.01 | -14.03 | 159.48 | 39.27 | 256.00 | 0.6351 | -718.0 | -633.1 | |
| 0.00 | 1.93 | 0.00 | 1.22 | -13.78 | 158.68 | 38.46 | 256.24 | 0.6242 | -750.0 | -600.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
