SDO HMI 2014-03-29 06:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.79 | 38.81 | 0.41 | 19.89 | -13.69 | 127.79 | 7.58 | 214.96 | 0.2433 | 577.4 | 521.4 | |
|
previous
or next observation for the same group /

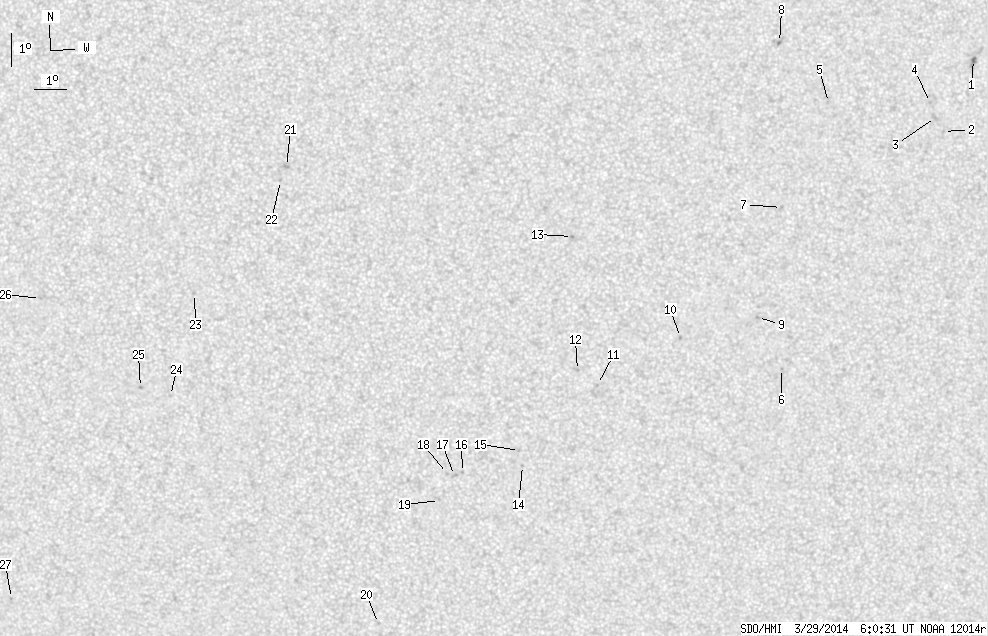

back to the solar disc SDO HMI 2014-03-29 06:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.79 | 4.73 | 0.41 | 2.48 | -7.18 | 139.17 | 18.95 | 267.38 | 0.3240 | 1047.8 | 817.0 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -9.37 | 138.31 | 18.10 | 260.31 | 0.3123 | 796.0 | 518.3 | |
| 0.00 | 3.77 | 0.00 | 1.96 | -8.96 | 138.04 | 17.82 | 261.53 | 0.3070 | 913.0 | 633.0 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -8.51 | 137.86 | 17.64 | 262.93 | 0.3034 | 843.0 | 698.5 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -8.61 | 134.65 | 14.43 | 261.43 | 0.2503 | 918.0 | 737.1 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -16.66 | 133.60 | 13.38 | 231.55 | 0.2844 | 790.0 | 708.2 | |
| 0.00 | 1.58 | 0.00 | 0.80 | -11.80 | 133.31 | 13.10 | 247.49 | 0.2412 | 660.0 | 585.3 | |
| 0.00 | 1.84 | 0.00 | 0.93 | -6.86 | 133.07 | 12.85 | 268.51 | 0.2220 | 1028.0 | 789.8 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -15.13 | 132.73 | 12.52 | 234.47 | 0.2582 | 892.0 | 761.7 | |
| 0.00 | 1.31 | 0.00 | 0.67 | -15.79 | 130.33 | 10.11 | 226.60 | 0.2336 | 989.0 | 759.0 | |
| 0.00 | 0.70 | 0.00 | 0.36 | -17.26 | 127.77 | 7.56 | 214.28 | 0.2240 | 870.0 | 697.8 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -16.84 | 127.13 | 6.91 | 213.06 | 0.2121 | 932.0 | 779.0 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -12.79 | 126.85 | 6.63 | 226.48 | 0.1560 | 997.0 | 874.9 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -19.76 | 125.48 | 5.27 | 200.87 | 0.2435 | 883.0 | 704.6 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -19.30 | 125.37 | 5.16 | 201.20 | 0.2356 | 940.0 | 733.5 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -19.99 | 123.57 | 3.36 | 193.45 | 0.2377 | 922.0 | 685.8 | |
| 0.00 | 2.19 | 0.00 | 1.12 | -20.08 | 123.32 | 3.10 | 192.38 | 0.2383 | 848.0 | 709.9 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -20.02 | 123.10 | 2.88 | 191.56 | 0.2365 | 773.0 | 625.7 | |
| 0.00 | 0.61 | 0.00 | 0.31 | -20.86 | 122.85 | 2.64 | 189.96 | 0.2496 | 760.0 | 598.0 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -24.69 | 120.91 | 0.70 | 182.05 | 0.3106 | 902.0 | 648.3 | |
| 0.00 | 2.28 | 0.00 | 1.13 | -10.71 | 118.08 | -2.14 | 152.40 | 0.0796 | 939.0 | 810.6 | |
| 0.00 | 1.31 | 0.00 | 0.65 | -11.13 | 117.89 | -2.33 | 152.80 | 0.0876 | 822.0 | 671.0 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -14.51 | 115.19 | -5.03 | 148.14 | 0.1614 | -823.0 | -644.4 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -17.60 | 114.35 | -5.87 | 152.82 | 0.2143 | -588.0 | -457.4 | |
| 0.00 | 0.96 | 0.00 | 0.49 | -17.34 | 113.41 | -6.80 | 148.64 | 0.2183 | -1088.0 | -919.5 | |
| 0.00 | 1.31 | 0.00 | 0.67 | -14.59 | 110.38 | -9.83 | 130.06 | 0.2169 | -786.0 | -623.7 | |
| 0.00 | 0.70 | 0.00 | 0.37 | -23.77 | 108.83 | -11.38 | 148.58 | 0.3481 | -783.0 | -686.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
