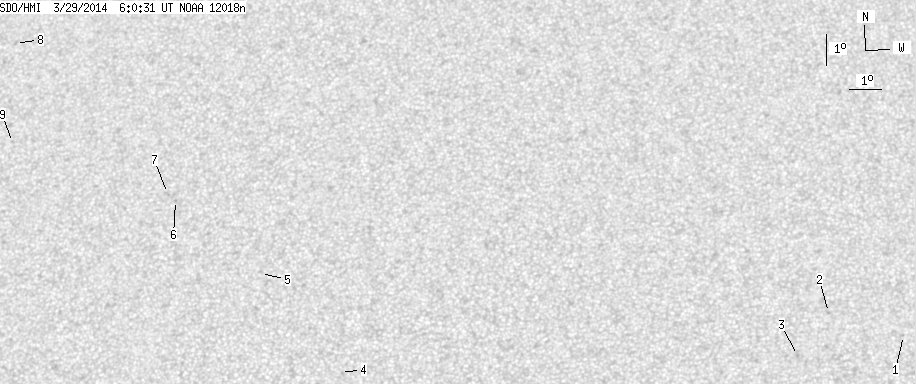

SDO HMI 2014-03-29 06:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.76 | 0.00 | 4.90 | 15.80 | 108.76 | -11.45 | 339.09 | 0.4514 | 14.4 | 110.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-29 06:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.41 | 11.59 | 126.70 | 6.48 | 340.55 | 0.3334 | -726.0 | -498.1 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 12.30 | 124.41 | 4.19 | 347.61 | 0.3343 | -777.0 | -601.8 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 10.93 | 123.44 | 3.22 | 349.67 | 0.3090 | -862.0 | -686.2 | |
| 0.00 | 0.35 | 0.00 | 0.19 | 10.53 | 109.45 | -10.76 | 31.98 | 0.3482 | 344.0 | 472.0 | |
| 0.00 | 0.26 | 0.00 | 0.14 | 13.73 | 106.80 | -13.41 | 33.08 | 0.4146 | 164.0 | 259.7 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 16.18 | 103.91 | -16.31 | 35.08 | 0.4713 | 795.0 | 651.0 | |
| 0.00 | 1.93 | 0.00 | 1.09 | 16.41 | 103.62 | -16.59 | 35.23 | 0.4767 | 750.0 | 619.6 | |
| 0.00 | 1.49 | 0.00 | 0.91 | 21.64 | 97.87 | -22.34 | 37.15 | 0.5874 | 71.0 | 140.7 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 18.31 | 98.26 | -21.95 | 40.57 | 0.5479 | 371.0 | 372.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
