SDO HMI 2014-03-29 06:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.18 | 0.00 | 7.29 | -10.86 | 86.10 | -34.12 | 99.52 | 0.5592 | 335.8 | 363.0 | |
|
previous
or next observation for the same group /

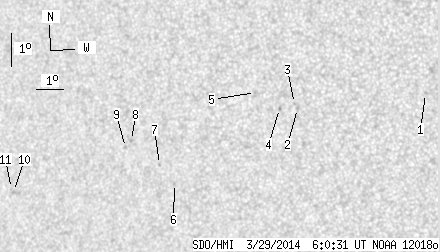

back to the solar disc SDO HMI 2014-03-29 06:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.68 | -10.18 | 93.62 | -26.59 | 99.39 | 0.4485 | -683.0 | -547.6 | |
| 0.00 | 2.10 | 0.00 | 1.21 | -10.37 | 89.15 | -31.07 | 99.03 | 0.5160 | 896.0 | 644.5 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -10.22 | 89.06 | -31.16 | 98.71 | 0.5172 | 712.0 | 581.5 | |
| 0.00 | 1.31 | 0.00 | 0.76 | -10.34 | 88.51 | -31.70 | 98.86 | 0.5253 | 750.0 | 561.1 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -9.80 | 87.71 | -32.51 | 97.77 | 0.5366 | 717.0 | 469.5 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -12.33 | 84.37 | -35.84 | 101.83 | 0.5867 | 724.0 | 597.5 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -11.72 | 83.90 | -36.32 | 100.73 | 0.5924 | 677.0 | 566.2 | |
| 0.00 | 1.14 | 0.00 | 0.71 | -10.93 | 82.95 | -37.27 | 99.29 | 0.6047 | 691.0 | 597.8 | |
| 0.00 | 1.84 | 0.00 | 1.15 | -11.13 | 82.69 | -37.53 | 99.59 | 0.6084 | 656.0 | 469.0 | |
| 0.00 | 0.44 | 0.00 | 0.29 | -12.11 | 78.04 | -42.17 | 100.69 | 0.6703 | -826.0 | -693.6 | |
| 0.00 | 0.44 | 0.00 | 0.29 | -12.01 | 77.98 | -42.24 | 100.54 | 0.6711 | -620.0 | -570.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
