SDO HMI 2014-03-29 07:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.54 | 0.00 | 11.39 | -28.22 | 84.64 | -35.03 | 128.23 | 0.6317 | -94.4 | -27.2 | |
|
previous
or next observation for the same group /

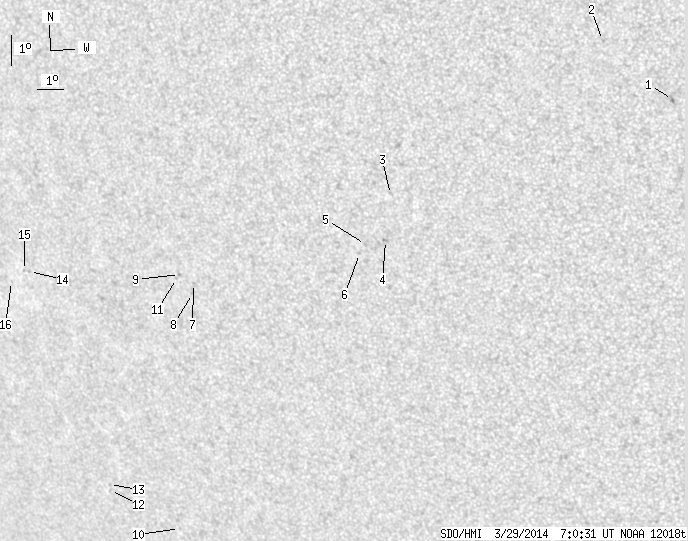

back to the solar disc SDO HMI 2014-03-29 07:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.37 | 0.00 | 1.28 | -22.89 | 101.74 | -17.93 | 135.06 | 0.4031 | 1022.0 | 818.1 | |
| 0.00 | 0.53 | 0.00 | 0.29 | -20.97 | 99.62 | -20.05 | 128.36 | 0.4099 | 759.0 | 605.5 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -25.41 | 91.16 | -28.51 | 127.74 | 0.5473 | 412.0 | 352.5 | |
| 0.00 | 2.10 | 0.00 | 1.26 | -26.85 | 90.58 | -29.09 | 129.52 | 0.5645 | 852.0 | 589.5 | |
| 0.00 | 1.14 | 0.00 | 0.69 | -26.94 | 89.78 | -29.89 | 129.01 | 0.5739 | 600.0 | 518.0 | |
| 0.00 | 1.14 | 0.00 | 0.69 | -27.21 | 89.47 | -30.20 | 129.18 | 0.5793 | 524.0 | 416.3 | |
| 0.00 | 0.79 | 0.00 | 0.52 | -27.75 | 82.53 | -37.14 | 125.44 | 0.6581 | -746.0 | -481.1 | |
| 0.00 | 0.96 | 0.00 | 0.64 | -28.06 | 82.36 | -37.31 | 125.78 | 0.6616 | -643.0 | -543.0 | |
| 0.00 | 0.96 | 0.00 | 0.64 | -27.43 | 82.06 | -37.61 | 124.74 | 0.6614 | -591.0 | -513.8 | |
| 0.00 | 1.05 | 0.00 | 0.78 | -35.66 | 77.82 | -41.85 | 133.18 | 0.7456 | -380.0 | -316.9 | |
| 0.00 | 0.79 | 0.00 | 0.52 | -27.54 | 81.89 | -37.78 | 124.81 | 0.6639 | -591.0 | -503.0 | |
| 0.00 | 1.40 | 0.00 | 1.06 | -34.16 | 75.35 | -44.32 | 130.21 | 0.7593 | -538.0 | -433.5 | |
| 0.00 | 1.14 | 0.00 | 0.86 | -33.96 | 75.43 | -44.24 | 130.00 | 0.7577 | -606.0 | -444.2 | |
| 0.00 | 0.88 | 0.00 | 0.63 | -26.86 | 75.62 | -44.05 | 121.09 | 0.7266 | -708.0 | -619.9 | |
| 0.00 | 0.88 | 0.00 | 0.63 | -26.81 | 75.41 | -44.26 | 120.95 | 0.7286 | -510.0 | -479.8 | |
| 0.00 | 0.53 | 0.00 | 0.38 | -27.11 | 74.65 | -45.02 | 121.06 | 0.7374 | -366.0 | -344.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
