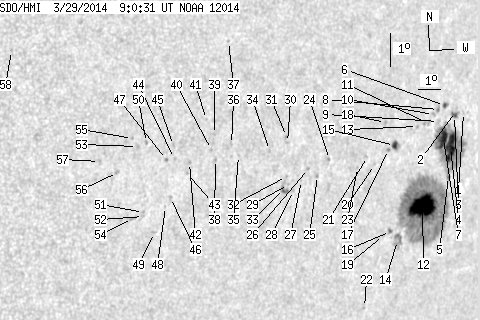

SDO HMI 2014-03-29 09:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.95 | 430.02 | 61.81 | 362.01 | -13.26 | 172.87 | 54.29 | 258.40 | 0.8080 | 430.0 | 229.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-29 09:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.54 | -10.88 | 174.96 | 56.38 | 261.36 | 0.8293 | 378.0 | 363.3 | |
| 0.00 | 0.70 | 0.00 | 0.61 | -10.89 | 174.52 | 55.94 | 261.36 | 0.8251 | 467.0 | 498.2 | |
| 1.93 | 4.12 | 1.68 | 3.59 | -11.01 | 174.50 | 55.92 | 261.21 | 0.8249 | 604.6 | 410.2 | |
| 17.35 | 96.57 | 15.15 | 84.23 | -11.98 | 174.57 | 55.99 | 260.03 | 0.8255 | 718.2 | 228.0 | |
| 0.70 | -4.00 | 0.61 | -4.00 | -12.85 | 174.74 | 56.17 | 258.98 | 0.8273 | -250.1 | 999999 | |
| 1.31 | 3.33 | 1.13 | 2.86 | -10.77 | 173.89 | 55.31 | 261.51 | 0.8189 | 617.4 | 488.3 | |
| 9.38 | -4.00 | 8.09 | -4.00 | -11.75 | 174.12 | 55.54 | 260.31 | 0.8211 | 949.2 | 999999 | |
| 0.00 | 2.10 | 0.00 | 1.79 | -10.92 | 173.60 | 55.03 | 261.34 | 0.8161 | 710.0 | 631.4 | |
| 0.00 | 2.80 | 0.00 | 2.40 | -11.27 | 173.70 | 55.13 | 260.90 | 0.8171 | 428.0 | 385.2 | |
| 0.00 | 1.49 | 0.00 | 1.26 | -11.09 | 173.39 | 54.81 | 261.13 | 0.8139 | 505.0 | 555.3 | |
| 0.00 | 3.68 | 0.00 | 3.10 | -11.38 | 173.15 | 54.57 | 260.76 | 0.8115 | 544.0 | 606.3 | |
| 37.51 | 245.01 | 32.07 | 209.94 | -13.86 | 173.67 | 55.09 | 257.72 | 0.8170 | 1033.6 | 292.1 | |
| 0.00 | 0.96 | 0.00 | 0.80 | -11.52 | 172.66 | 54.08 | 260.59 | 0.8066 | 619.0 | 562.9 | |
| 0.00 | 10.25 | 0.00 | 8.58 | -14.99 | 172.73 | 54.16 | 256.28 | 0.8083 | 605.0 | 520.3 | |
| 3.07 | 5.17 | 2.50 | 4.22 | -12.19 | 171.66 | 53.08 | 259.74 | 0.7964 | 632.0 | 252.3 | |
| 0.70 | 2.10 | 0.58 | 1.74 | -14.76 | 172.28 | 53.70 | 256.55 | 0.8036 | 727.9 | 643.7 | |
| 0.00 | 1.40 | 0.00 | 1.14 | -12.33 | 171.39 | 52.82 | 259.55 | 0.7937 | 784.0 | 750.0 | |
| 0.00 | 1.31 | 0.00 | 1.06 | -11.55 | 171.02 | 52.45 | 260.54 | 0.7897 | 497.0 | 421.1 | |
| 0.00 | 1.05 | 0.00 | 0.86 | -14.91 | 171.96 | 53.39 | 256.34 | 0.8005 | 759.0 | 679.9 | |
| 0.00 | 0.96 | 0.00 | 0.77 | -12.84 | 170.83 | 52.25 | 258.89 | 0.7879 | -431.0 | -314.8 | |
| 0.00 | 0.53 | 0.00 | 0.42 | -12.63 | 170.42 | 51.84 | 259.14 | 0.7835 | 552.0 | 502.0 | |
| 0.00 | 0.53 | 0.00 | 0.43 | -17.14 | 171.83 | 53.25 | 253.55 | 0.8006 | -595.0 | -455.8 | |
| 0.00 | 0.88 | 0.00 | 0.69 | -13.00 | 170.03 | 51.45 | 258.66 | 0.7795 | -346.0 | -288.3 | |
| 0.00 | 0.96 | 0.00 | 0.74 | -12.88 | 168.63 | 50.05 | 258.75 | 0.7643 | 790.0 | 627.9 | |
| 0.00 | 1.05 | 0.00 | 0.80 | -13.41 | 168.20 | 49.62 | 258.04 | 0.7598 | -542.0 | -414.2 | |
| 0.00 | 0.79 | 0.00 | 0.59 | -13.24 | 167.72 | 49.15 | 258.24 | 0.7544 | 705.0 | 612.8 | |
| 0.00 | 0.61 | 0.00 | 0.46 | -13.62 | 167.50 | 48.92 | 257.71 | 0.7521 | -622.0 | -500.0 | |
| 0.00 | 1.05 | 0.00 | 0.78 | -13.95 | 167.21 | 48.64 | 257.25 | 0.7491 | -502.0 | -373.7 | |
| 0.00 | 0.88 | 0.00 | 0.65 | -13.79 | 166.93 | 48.36 | 257.44 | 0.7459 | -562.0 | -437.7 | |
| 0.00 | 1.66 | 0.00 | 1.22 | -12.54 | 166.56 | 47.99 | 259.10 | 0.7409 | 598.0 | 456.6 | |
| 0.00 | 1.05 | 0.00 | 0.77 | -12.37 | 166.47 | 47.90 | 259.33 | 0.7398 | 565.0 | 473.2 | |
| 0.00 | 0.70 | 0.00 | 0.52 | -13.56 | 166.78 | 48.20 | 257.74 | 0.7440 | -413.0 | -366.5 | |
| 0.00 | 5.52 | 0.00 | 4.08 | -13.92 | 166.79 | 48.21 | 257.25 | 0.7443 | -708.0 | -612.9 | |
| 0.00 | 1.14 | 0.00 | 0.83 | -12.85 | 165.82 | 47.24 | 258.63 | 0.7325 | 587.0 | 554.1 | |
| 0.00 | 0.70 | 0.00 | 0.50 | -13.11 | 164.49 | 45.91 | 258.17 | 0.7171 | -405.0 | -341.4 | |
| 0.00 | 0.96 | 0.00 | 0.68 | -12.81 | 164.11 | 45.53 | 258.57 | 0.7123 | -517.0 | -466.6 | |
| 0.00 | 0.61 | 0.00 | 0.43 | -9.75 | 163.37 | 44.79 | 262.87 | 0.7021 | 556.0 | 488.7 | |
| 0.00 | 1.05 | 0.00 | 0.73 | -13.31 | 163.52 | 44.95 | 257.81 | 0.7057 | -593.0 | -476.5 | |
| 0.00 | 0.79 | 0.00 | 0.55 | -12.57 | 163.31 | 44.73 | 258.84 | 0.7025 | -501.0 | -387.6 | |
| 0.00 | 1.05 | 0.00 | 0.73 | -13.02 | 163.28 | 44.71 | 258.19 | 0.7025 | -618.0 | -560.0 | |
| 0.00 | 0.61 | 0.00 | 0.42 | -12.15 | 162.88 | 44.30 | 259.41 | 0.6969 | -457.0 | -392.9 | |
| 0.00 | 0.96 | 0.00 | 0.66 | -13.49 | 162.44 | 43.86 | 257.44 | 0.6927 | -570.0 | -501.9 | |
| 0.00 | 0.88 | 0.00 | 0.60 | -13.82 | 162.43 | 43.86 | 256.96 | 0.6929 | -597.0 | -457.4 | |
| 0.00 | 1.23 | 0.00 | 0.83 | -13.42 | 161.78 | 43.21 | 257.47 | 0.6845 | -499.0 | -430.2 | |
| 0.00 | 1.66 | 0.00 | 1.13 | -13.03 | 161.66 | 43.08 | 258.02 | 0.6826 | -485.0 | -360.8 | |
| 0.00 | 1.31 | 0.00 | 0.89 | -14.59 | 161.89 | 43.31 | 255.77 | 0.6872 | -530.0 | -445.4 | |
| 0.00 | 0.96 | 0.00 | 0.65 | -13.47 | 161.46 | 42.88 | 257.35 | 0.6806 | -651.0 | -600.8 | |
| 0.00 | 0.79 | 0.00 | 0.54 | -14.88 | 161.75 | 43.17 | 255.33 | 0.6858 | -478.0 | -361.3 | |
| 0.00 | 1.31 | 0.00 | 0.89 | -15.69 | 161.49 | 42.91 | 254.10 | 0.6839 | -567.0 | -498.3 | |
| 0.00 | 1.14 | 0.00 | 0.76 | -13.03 | 160.53 | 41.95 | 257.90 | 0.6684 | -645.0 | -603.5 | |
| 0.00 | 0.79 | 0.00 | 0.53 | -15.13 | 160.88 | 42.30 | 254.83 | 0.6755 | -667.0 | -577.9 | |
| 0.00 | 1.05 | 0.00 | 0.70 | -15.25 | 160.91 | 42.33 | 254.66 | 0.6760 | -555.0 | -475.3 | |
| 0.00 | 1.75 | 0.00 | 1.16 | -13.17 | 160.19 | 41.61 | 257.64 | 0.6642 | -658.0 | -578.8 | |
| 0.00 | 2.98 | 0.00 | 1.98 | -15.34 | 160.47 | 41.89 | 254.44 | 0.6708 | -670.0 | -578.1 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -12.95 | 159.93 | 41.36 | 257.95 | 0.6608 | -708.0 | -621.2 | |
| 0.00 | 2.10 | 0.00 | 1.38 | -14.01 | 159.54 | 40.96 | 256.28 | 0.6571 | -629.0 | -578.0 | |
| 0.00 | 2.37 | 0.00 | 1.53 | -13.73 | 158.75 | 40.17 | 256.58 | 0.6465 | -533.0 | -536.9 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -10.65 | 154.79 | 36.21 | 261.06 | 0.5900 | -589.0 | -440.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
