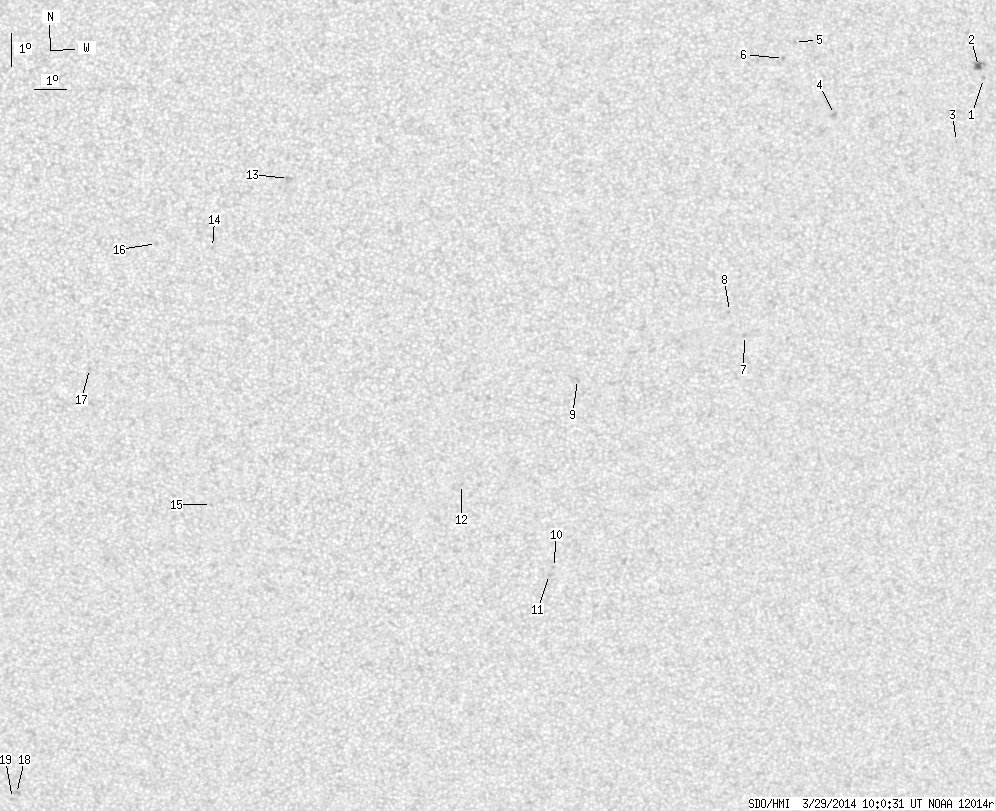

SDO HMI 2014-03-29 10:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.10 | 32.67 | 1.12 | 17.02 | -14.50 | 126.84 | 8.81 | 220.22 | 0.2918 | 340.6 | 324.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-29 10:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 0.70 | -7.33 | 139.56 | 21.53 | 266.93 | 0.3662 | 684.0 | 553.5 | |
| 2.10 | 6.66 | 1.12 | 3.54 | -6.98 | 139.38 | 21.36 | 267.90 | 0.3633 | 1152.2 | 841.8 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -9.25 | 138.79 | 20.76 | 261.48 | 0.3554 | 775.0 | 591.5 | |
| 0.00 | 2.02 | 0.00 | 1.04 | -8.59 | 134.85 | 16.82 | 262.38 | 0.2900 | 844.0 | 757.8 | |
| 0.00 | 1.40 | 0.00 | 0.72 | -6.47 | 133.51 | 15.49 | 269.86 | 0.2665 | 667.0 | 545.1 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -6.96 | 133.19 | 15.16 | 268.02 | 0.2609 | 1017.0 | 784.9 | |
| 0.00 | 1.66 | 0.00 | 0.86 | -15.31 | 132.38 | 14.35 | 237.27 | 0.2854 | 863.0 | 587.7 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -14.60 | 131.85 | 13.82 | 238.60 | 0.2721 | 792.0 | 684.8 | |
| 0.00 | 1.93 | 0.00 | 0.98 | -16.76 | 127.15 | 9.12 | 220.69 | 0.2338 | 860.0 | 648.6 | |
| 0.00 | 0.96 | 0.00 | 0.50 | -22.55 | 126.69 | 8.66 | 206.86 | 0.3093 | 752.0 | 613.6 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -22.77 | 126.57 | 8.54 | 206.21 | 0.3116 | 841.0 | 721.9 | |
| 0.00 | 1.40 | 0.00 | 0.72 | -20.02 | 123.59 | 5.56 | 201.50 | 0.2497 | 692.0 | 522.4 | |
| 0.00 | 2.63 | 0.00 | 1.31 | -10.77 | 118.08 | 0.05 | 180.74 | 0.0717 | 1075.0 | 794.2 | |
| 0.00 | 1.05 | 0.00 | 0.52 | -12.83 | 115.75 | -2.28 | 160.12 | 0.1146 | -720.0 | -519.1 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -20.65 | 115.61 | -2.42 | 170.71 | 0.2459 | -826.0 | -658.9 | |
| 0.00 | 1.05 | 0.00 | 0.52 | -12.70 | 114.03 | -4.00 | 147.10 | 0.1259 | -866.0 | -670.9 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -16.45 | 111.86 | -6.17 | 148.82 | 0.2001 | -819.0 | -604.9 | |
| 0.00 | 3.15 | 0.00 | 1.72 | -29.70 | 108.65 | -9.38 | 160.16 | 0.4190 | -792.0 | -697.1 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -29.86 | 108.49 | -9.54 | 160.02 | 0.4222 | -617.0 | -554.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
