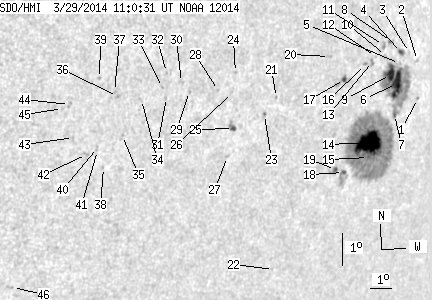

SDO HMI 2014-03-29 11:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.06 | 403.66 | 62.60 | 351.52 | -13.29 | 173.22 | 55.74 | 258.40 | 0.8226 | 493.2 | 222.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-29 11:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.98 | -12.29 | 175.96 | 58.48 | 259.66 | 0.8488 | 314.0 | 352.2 | |
| 0.00 | 1.49 | 0.00 | 1.37 | -11.17 | 175.59 | 58.10 | 260.99 | 0.8455 | 282.0 | 214.0 | |
| 0.00 | 0.88 | 0.00 | 0.80 | -10.97 | 175.06 | 57.58 | 261.23 | 0.8407 | 332.0 | 264.5 | |
| 2.10 | 3.94 | 1.89 | 3.54 | -11.02 | 174.62 | 57.14 | 261.18 | 0.8365 | 528.8 | 403.0 | |
| 0.00 | 0.88 | 0.00 | 0.79 | -11.35 | 174.61 | 57.13 | 260.78 | 0.8364 | 278.0 | 309.9 | |
| 15.33 | 91.73 | 13.79 | 82.49 | -11.96 | 174.63 | 57.15 | 260.05 | 0.8366 | 720.6 | 195.4 | |
| 1.84 | -6.00 | 1.66 | -6.00 | -12.88 | 174.84 | 57.35 | 258.95 | 0.8385 | 180.4 | 999999 | |
| 0.00 | 2.10 | 0.00 | 1.86 | -10.74 | 173.98 | 56.50 | 261.52 | 0.8305 | 742.0 | 589.5 | |
| 8.59 | -6.00 | 7.64 | -6.00 | -11.72 | 174.22 | 56.74 | 260.34 | 0.8327 | 951.1 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.69 | -11.19 | 173.78 | 56.30 | 260.99 | 0.8285 | 444.0 | 494.1 | |
| 0.00 | 2.72 | 0.00 | 2.38 | -10.90 | 173.58 | 56.10 | 261.33 | 0.8266 | 659.0 | 600.8 | |
| 0.00 | 0.35 | 0.00 | 0.30 | -11.27 | 173.25 | 55.77 | 260.89 | 0.8234 | 533.0 | 581.0 | |
| 0.00 | 2.28 | 0.00 | 1.97 | -11.43 | 173.13 | 55.65 | 260.70 | 0.8222 | 686.0 | 660.4 | |
| 36.10 | 237.70 | 31.74 | 209.63 | -13.84 | 173.77 | 56.29 | 257.78 | 0.8286 | 1000.0 | 263.2 | |
| 0.79 | -14.00 | 0.70 | -14.00 | -14.29 | 173.88 | 56.40 | 257.24 | 0.8298 | 629.0 | 999999 | |
| 0.00 | 1.66 | 0.00 | 1.43 | -11.55 | 172.79 | 55.31 | 260.55 | 0.8189 | 677.0 | 609.4 | |
| 1.66 | 7.36 | 1.40 | 6.17 | -12.10 | 171.83 | 54.35 | 259.87 | 0.8093 | 586.0 | 311.1 | |
| 1.14 | 10.25 | 0.98 | 8.80 | -14.86 | 172.71 | 55.23 | 256.50 | 0.8188 | 781.2 | 447.4 | |
| 1.58 | 4.29 | 1.34 | 3.64 | -14.81 | 172.26 | 54.78 | 256.54 | 0.8143 | 755.8 | 624.4 | |
| 0.00 | 2.19 | 0.00 | 1.80 | -11.49 | 170.87 | 53.39 | 260.62 | 0.7995 | 110.0 | 180.1 | |
| 0.00 | 1.05 | 0.00 | 0.82 | -12.94 | 168.61 | 51.13 | 258.72 | 0.7760 | 556.0 | 469.8 | |
| 0.00 | 0.35 | 0.00 | 0.29 | -18.07 | 170.28 | 52.80 | 252.32 | 0.7970 | -344.0 | -316.8 | |
| 0.00 | 1.40 | 0.00 | 1.09 | -13.49 | 168.18 | 50.70 | 257.98 | 0.7716 | -307.0 | -294.4 | |
| 0.00 | 0.88 | 0.00 | 0.66 | -12.36 | 166.49 | 49.00 | 259.38 | 0.7524 | 597.0 | 536.6 | |
| 1.93 | 5.87 | 1.46 | 4.43 | -14.04 | 166.84 | 49.36 | 257.18 | 0.7573 | -697.3 | -533.4 | |
| 0.00 | 0.44 | 0.00 | 0.33 | -12.97 | 166.50 | 49.02 | 258.58 | 0.7529 | 693.0 | 631.2 | |
| 0.00 | 1.58 | 0.00 | 1.19 | -14.89 | 166.82 | 49.33 | 256.05 | 0.7576 | -477.0 | -367.1 | |
| 0.00 | 0.79 | 0.00 | 0.58 | -12.96 | 165.84 | 48.36 | 258.54 | 0.7455 | 665.0 | 524.1 | |
| 0.00 | 0.88 | 0.00 | 0.63 | -13.10 | 164.55 | 47.07 | 258.27 | 0.7306 | -378.0 | -362.6 | |
| 0.00 | 1.93 | 0.00 | 1.38 | -12.86 | 164.13 | 46.65 | 258.57 | 0.7256 | -537.0 | -403.9 | |
| 0.00 | 0.35 | 0.00 | 0.25 | -13.36 | 163.58 | 46.10 | 257.83 | 0.7195 | -593.0 | -482.5 | |
| 0.00 | 0.96 | 0.00 | 0.68 | -12.62 | 163.40 | 45.92 | 258.85 | 0.7169 | -328.0 | -349.2 | |
| 0.00 | 0.88 | 0.00 | 0.62 | -13.08 | 163.33 | 45.85 | 258.20 | 0.7164 | -589.0 | -481.9 | |
| 0.00 | 0.88 | 0.00 | 0.61 | -13.51 | 162.51 | 45.03 | 257.52 | 0.7069 | -596.0 | -467.6 | |
| 0.00 | 0.96 | 0.00 | 0.67 | -14.65 | 161.97 | 44.49 | 255.84 | 0.7015 | -414.0 | -422.4 | |
| 0.00 | 1.23 | 0.00 | 0.84 | -13.50 | 161.47 | 43.99 | 257.43 | 0.6943 | -739.0 | -637.1 | |
| 0.00 | 1.05 | 0.00 | 0.72 | -13.36 | 161.31 | 43.83 | 257.61 | 0.6922 | -496.0 | -497.4 | |
| 0.00 | 0.53 | 0.00 | 0.36 | -15.67 | 161.41 | 43.93 | 254.30 | 0.6962 | -587.0 | -488.2 | |
| 0.00 | 1.23 | 0.00 | 0.83 | -13.02 | 160.60 | 43.12 | 258.03 | 0.6830 | -692.0 | -551.0 | |
| 0.00 | 1.05 | 0.00 | 0.72 | -15.09 | 161.00 | 43.52 | 255.07 | 0.6904 | -508.0 | -399.6 | |
| 0.00 | 0.53 | 0.00 | 0.36 | -15.18 | 161.02 | 43.54 | 254.94 | 0.6908 | -506.0 | -394.7 | |
| 0.00 | 2.28 | 0.00 | 1.55 | -15.34 | 160.59 | 43.11 | 254.65 | 0.6858 | -779.0 | -623.2 | |
| 0.00 | 1.05 | 0.00 | 0.71 | -14.87 | 159.92 | 42.44 | 255.23 | 0.6769 | -638.0 | -575.2 | |
| 0.00 | 2.10 | 0.00 | 1.40 | -13.89 | 159.53 | 42.05 | 256.61 | 0.6706 | -568.0 | -547.7 | |
| 0.00 | 0.79 | 0.00 | 0.52 | -14.04 | 159.27 | 41.79 | 256.36 | 0.6676 | -533.0 | -415.4 | |
| 0.00 | 0.96 | 0.00 | 0.64 | -19.58 | 158.65 | 41.17 | 248.02 | 0.6712 | -591.0 | -486.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
