SDO HMI 2014-03-29 11:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.54 | 27.50 | 1.38 | 14.91 | 3.23 | 139.14 | 21.66 | 294.08 | 0.4049 | 103.3 | 178.5 | |
|
previous
or next observation for the same group /

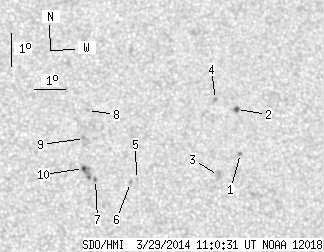

back to the solar disc SDO HMI 2014-03-29 11:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.49 | 0.00 | 0.82 | 3.43 | 142.08 | 24.60 | 291.64 | 0.4489 | -811.0 | -757.9 | |
| 1.31 | 2.54 | 0.73 | 1.41 | 4.77 | 141.99 | 24.51 | 294.43 | 0.4560 | -1004.4 | -807.9 | |
| 0.00 | 5.78 | 0.00 | 3.18 | 2.73 | 141.34 | 23.86 | 290.79 | 0.4339 | -706.0 | -458.7 | |
| 0.00 | 1.66 | 0.00 | 0.92 | 5.04 | 141.31 | 23.83 | 295.63 | 0.4483 | -933.0 | -767.8 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 2.49 | 138.67 | 21.19 | 292.74 | 0.3932 | 598.0 | 499.7 | |
| 0.00 | 1.93 | 0.00 | 1.04 | 2.39 | 138.48 | 21.00 | 292.70 | 0.3897 | 531.0 | 436.5 | |
| 0.00 | 1.40 | 0.00 | 0.75 | 2.43 | 137.36 | 19.88 | 294.01 | 0.3735 | 813.0 | 724.9 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 4.52 | 137.15 | 19.67 | 299.18 | 0.3860 | 613.0 | 547.3 | |
| 0.00 | 2.89 | 0.00 | 1.55 | 3.67 | 137.03 | 19.55 | 297.35 | 0.3776 | 937.0 | 710.2 | |
| 1.23 | 7.53 | 0.65 | 4.02 | 2.75 | 136.98 | 19.50 | 295.23 | 0.3702 | 1015.6 | 898.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
