SDO HMI 2014-03-29 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.05 | 30.48 | 0.58 | 16.72 | 3.48 | 138.97 | 23.14 | 293.07 | 0.4281 | 97.1 | 183.6 | |
|
previous
or next observation for the same group /

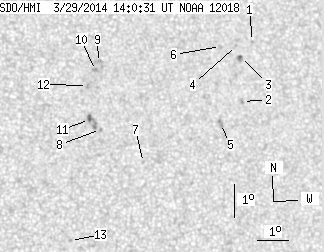

back to the solar disc SDO HMI 2014-03-29 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.65 | 5.33 | 142.47 | 26.63 | 293.67 | 0.4893 | -651.0 | -500.3 | |
| 0.00 | 1.49 | 0.00 | 0.84 | 3.48 | 142.06 | 26.22 | 290.43 | 0.4726 | -854.0 | -738.6 | |
| 0.44 | 2.98 | 0.25 | 1.68 | 4.82 | 142.04 | 26.21 | 293.05 | 0.4802 | -947.6 | -802.0 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 5.18 | 141.92 | 26.09 | 293.84 | 0.4808 | -771.0 | -685.6 | |
| 0.00 | 3.68 | 0.00 | 2.05 | 2.77 | 141.30 | 25.47 | 289.58 | 0.4578 | -746.0 | -688.4 | |
| 0.00 | 1.40 | 0.00 | 0.79 | 5.12 | 141.39 | 25.55 | 294.19 | 0.4729 | -680.0 | -579.4 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 1.47 | 138.75 | 22.92 | 288.79 | 0.4129 | 664.0 | 455.3 | |
| 0.00 | 1.40 | 0.00 | 0.76 | 2.41 | 137.37 | 21.54 | 292.20 | 0.3979 | 887.0 | 692.4 | |
| 0.00 | 4.03 | 0.00 | 2.19 | 4.45 | 137.36 | 21.52 | 296.79 | 0.4115 | 538.0 | 587.7 | |
| 0.00 | 2.45 | 0.00 | 1.33 | 4.20 | 137.26 | 21.42 | 296.37 | 0.4083 | 985.0 | 793.4 | |
| 0.61 | 7.36 | 0.33 | 3.96 | 2.70 | 137.02 | 21.19 | 293.23 | 0.3946 | 1110.4 | 851.2 | |
| 0.00 | 1.66 | 0.00 | 0.90 | 3.73 | 136.98 | 21.15 | 295.63 | 0.4010 | 885.0 | 756.5 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -0.98 | 136.39 | 20.55 | 284.65 | 0.3644 | 769.0 | 587.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
