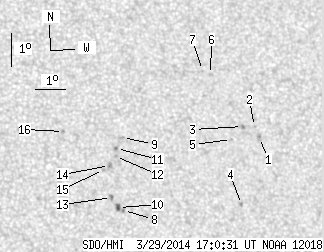

SDO HMI 2014-03-29 17:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.31 | 24.78 | 0.72 | 13.74 | 4.05 | 138.65 | 24.47 | 293.05 | 0.4507 | 157.1 | 204.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-29 17:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.45 | 0.00 | 1.40 | 4.84 | 142.04 | 27.86 | 291.78 | 0.5035 | -847.0 | -730.5 | |
| 0.00 | 0.88 | 0.00 | 0.50 | 5.17 | 141.89 | 27.71 | 292.50 | 0.5032 | -648.0 | -591.8 | |
| 0.00 | 1.49 | 0.00 | 0.85 | 5.14 | 141.48 | 27.30 | 292.78 | 0.4974 | -824.0 | -722.5 | |
| 0.00 | 1.31 | 0.00 | 0.74 | 2.76 | 141.36 | 27.17 | 288.33 | 0.4825 | -773.0 | -656.5 | |
| 0.00 | 1.05 | 0.00 | 0.60 | 4.73 | 141.09 | 26.91 | 292.31 | 0.4895 | -818.0 | -560.3 | |
| 0.00 | 1.23 | 0.00 | 0.70 | 6.68 | 140.48 | 26.30 | 296.46 | 0.4936 | -706.0 | -539.6 | |
| 0.00 | 0.44 | 0.00 | 0.25 | 6.79 | 140.22 | 26.04 | 296.90 | 0.4908 | -623.0 | -457.4 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 2.39 | 137.44 | 23.26 | 290.57 | 0.4231 | 928.0 | 784.6 | |
| 0.00 | 1.66 | 0.00 | 0.92 | 4.61 | 137.47 | 23.28 | 295.29 | 0.4376 | 770.0 | 668.6 | |
| 1.31 | 2.98 | 0.72 | 1.62 | 2.47 | 137.28 | 23.09 | 290.89 | 0.4212 | 1025.7 | 829.9 | |
| 0.00 | 1.66 | 0.00 | 0.91 | 4.26 | 137.26 | 23.08 | 294.78 | 0.4323 | 999.0 | 832.7 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 4.02 | 137.22 | 23.04 | 294.30 | 0.4301 | 800.0 | 668.8 | |
| 0.00 | 2.01 | 0.00 | 1.10 | 2.77 | 137.05 | 22.87 | 291.74 | 0.4197 | 977.0 | 839.3 | |
| 0.00 | 2.71 | 0.00 | 1.48 | 3.74 | 137.01 | 22.83 | 293.89 | 0.4253 | 945.0 | 747.1 | |
| 0.00 | 1.49 | 0.00 | 0.81 | 3.61 | 136.82 | 22.63 | 293.81 | 0.4216 | 686.0 | 564.5 | |
| 0.00 | 1.23 | 0.00 | 0.67 | 4.71 | 135.55 | 21.37 | 297.53 | 0.4113 | 865.0 | 649.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
