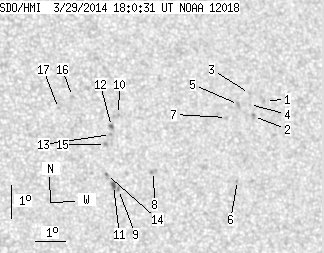

SDO HMI 2014-03-29 18:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.75 | 27.25 | 0.96 | 15.20 | 3.99 | 138.83 | 25.20 | 292.31 | 0.4608 | 200.2 | 200.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-29 18:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.35 | 5.32 | 142.47 | 28.84 | 291.93 | 0.5199 | -484.0 | -493.0 | |
| 0.00 | 2.28 | 0.00 | 1.31 | 4.81 | 142.03 | 28.40 | 291.33 | 0.5109 | -857.0 | -711.2 | |
| 0.00 | 1.23 | 0.00 | 0.71 | 5.50 | 141.93 | 28.30 | 292.66 | 0.5135 | -602.0 | -502.0 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 5.17 | 141.92 | 28.28 | 292.07 | 0.5113 | -561.0 | -513.2 | |
| 0.00 | 2.19 | 0.00 | 1.26 | 5.15 | 141.54 | 27.91 | 292.31 | 0.5060 | -843.0 | -653.1 | |
| 0.00 | 0.53 | 0.00 | 0.30 | 2.83 | 141.42 | 27.79 | 288.04 | 0.4917 | -719.0 | -609.3 | |
| 0.00 | 1.40 | 0.00 | 0.80 | 4.73 | 141.11 | 27.48 | 291.86 | 0.4976 | -753.0 | -480.4 | |
| 0.00 | 3.59 | 0.00 | 1.99 | 2.96 | 138.61 | 24.98 | 290.35 | 0.4516 | 759.0 | 659.0 | |
| 0.00 | 1.49 | 0.00 | 0.82 | 2.35 | 137.44 | 23.81 | 290.02 | 0.4311 | 871.0 | 710.9 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 4.64 | 137.51 | 23.88 | 294.77 | 0.4462 | 725.0 | 629.4 | |
| 1.14 | 3.24 | 0.62 | 1.78 | 2.47 | 137.28 | 23.65 | 290.40 | 0.4294 | 995.4 | 763.8 | |
| 0.61 | 1.84 | 0.34 | 1.01 | 4.26 | 137.26 | 23.63 | 294.23 | 0.4402 | 906.9 | 725.1 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 4.01 | 137.22 | 23.59 | 293.76 | 0.4380 | 778.0 | 647.0 | |
| 0.00 | 1.40 | 0.00 | 0.77 | 2.79 | 137.06 | 23.43 | 291.30 | 0.4280 | 885.0 | 783.5 | |
| 0.00 | 1.66 | 0.00 | 0.91 | 3.70 | 137.05 | 23.42 | 293.26 | 0.4335 | 948.0 | 779.3 | |
| 0.00 | 1.93 | 0.00 | 1.06 | 5.12 | 136.02 | 22.39 | 297.27 | 0.4286 | 671.0 | 398.0 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 4.73 | 135.55 | 21.92 | 296.97 | 0.4192 | 745.0 | 607.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
