SDO HMI 2014-03-29 19:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.57 | 348.52 | 63.70 | 346.69 | -13.19 | 173.81 | 60.73 | 258.58 | 0.8680 | 581.4 | 240.3 | |
|
previous
or next observation for the same group /

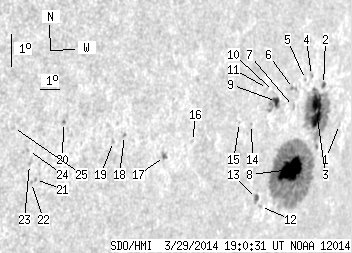

back to the solar disc SDO HMI 2014-03-29 19:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 1.23 | -12.19 | 176.46 | 63.38 | 259.70 | 0.8901 | 237.0 | 230.2 | |
| 1.49 | 2.63 | 1.53 | 2.70 | -11.12 | 174.96 | 61.88 | 260.95 | 0.8783 | 411.2 | 364.8 | |
| 22.15 | 89.75 | 22.67 | 92.00 | -11.93 | 174.81 | 61.73 | 260.03 | 0.8769 | 735.2 | 224.1 | |
| 0.00 | 1.84 | 0.00 | 1.84 | -10.94 | 174.12 | 61.04 | 261.19 | 0.8714 | 524.0 | 539.1 | |
| 0.00 | 0.88 | 0.00 | 0.87 | -11.09 | 173.80 | 60.72 | 261.02 | 0.8686 | 545.0 | 473.5 | |
| 0.00 | 3.24 | 0.00 | 3.16 | -11.43 | 173.17 | 60.09 | 260.64 | 0.8631 | 613.0 | 547.1 | |
| 0.00 | 1.93 | 0.00 | 1.89 | -11.96 | 173.36 | 60.28 | 260.03 | 0.8647 | 372.0 | 434.9 | |
| 35.38 | 214.62 | 35.26 | 214.59 | -13.82 | 173.99 | 60.91 | 257.87 | 0.8699 | 861.5 | 253.4 | |
| 3.85 | 11.65 | 3.66 | 11.03 | -11.91 | 172.30 | 59.22 | 260.10 | 0.8554 | 597.6 | 512.9 | |
| 0.00 | 0.53 | 0.00 | 0.50 | -11.63 | 172.02 | 58.94 | 260.43 | 0.8530 | 613.0 | 496.2 | |
| 0.00 | 0.70 | 0.00 | 0.65 | -11.58 | 171.65 | 58.57 | 260.50 | 0.8497 | 485.0 | 451.8 | |
| 0.00 | 1.58 | 0.00 | 1.51 | -15.09 | 172.62 | 59.54 | 256.38 | 0.8584 | 694.0 | 601.4 | |
| 0.00 | 3.50 | 0.00 | 3.33 | -14.88 | 172.27 | 59.20 | 256.62 | 0.8554 | 721.0 | 606.0 | |
| 0.00 | 0.70 | 0.00 | 0.64 | -12.72 | 171.11 | 58.03 | 259.14 | 0.8447 | -289.0 | -199.6 | |
| 0.00 | 0.61 | 0.00 | 0.55 | -12.73 | 170.42 | 57.34 | 259.13 | 0.8383 | -376.0 | -333.1 | |
| 0.00 | 0.70 | 0.00 | 0.60 | -13.53 | 168.08 | 55.00 | 258.12 | 0.8161 | -255.0 | -184.5 | |
| 0.70 | 3.15 | 0.58 | 2.61 | -14.11 | 166.79 | 53.71 | 257.35 | 0.8034 | -628.1 | -485.8 | |
| 0.00 | 1.05 | 0.00 | 0.83 | -13.66 | 164.60 | 51.53 | 257.81 | 0.7806 | -502.0 | -431.1 | |
| 0.00 | 1.75 | 0.00 | 1.37 | -13.89 | 164.13 | 51.05 | 257.49 | 0.7756 | -519.0 | -458.1 | |
| 0.00 | 1.31 | 0.00 | 0.98 | -13.52 | 161.62 | 48.55 | 257.80 | 0.7479 | -609.0 | -506.1 | |
| 0.00 | 1.05 | 0.00 | 0.77 | -15.33 | 160.84 | 47.76 | 255.30 | 0.7405 | -626.0 | -540.2 | |
| 0.00 | 0.79 | 0.00 | 0.58 | -15.44 | 160.69 | 47.61 | 255.14 | 0.7388 | -545.0 | -471.1 | |
| 0.00 | 0.53 | 0.00 | 0.38 | -14.91 | 160.44 | 47.36 | 255.83 | 0.7355 | -684.0 | -635.2 | |
| 0.00 | 1.14 | 0.00 | 0.83 | -14.49 | 160.27 | 47.20 | 256.38 | 0.7332 | -629.0 | -573.9 | |
| 0.00 | 1.75 | 0.00 | 1.25 | -13.86 | 159.43 | 46.35 | 257.16 | 0.7228 | -606.0 | -483.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
