SDO HMI 2014-03-29 19:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.14 | 23.21 | 0.67 | 13.67 | 17.81 | 90.77 | -22.31 | 41.67 | 0.5458 | -798.4 | -675.3 | |
|
previous
or next observation for the same group /

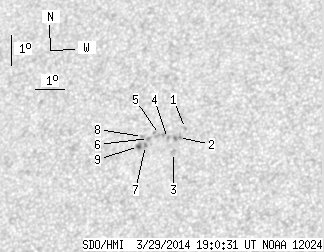

back to the solar disc SDO HMI 2014-03-29 19:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 0.82 | 18.13 | 91.57 | -21.51 | 40.23 | 0.5416 | -815.0 | -627.6 | |
| 0.00 | 3.68 | 0.00 | 2.16 | 17.85 | 91.37 | -21.71 | 40.86 | 0.5404 | -870.0 | -798.7 | |
| 0.00 | 2.45 | 0.00 | 1.44 | 17.36 | 91.26 | -21.82 | 41.62 | 0.5362 | -606.0 | -576.3 | |
| 0.00 | 1.84 | 0.00 | 1.08 | 17.83 | 91.00 | -22.08 | 41.35 | 0.5438 | -833.0 | -718.5 | |
| 0.00 | 6.13 | 0.00 | 3.62 | 17.98 | 90.71 | -22.37 | 41.53 | 0.5482 | -698.0 | -641.5 | |
| 0.00 | 1.58 | 0.00 | 0.93 | 17.86 | 90.35 | -22.73 | 42.13 | 0.5505 | -873.0 | -708.3 | |
| 0.00 | 1.66 | 0.00 | 0.98 | 17.64 | 90.27 | -22.80 | 42.51 | 0.5488 | -968.0 | -758.3 | |
| 0.00 | 1.49 | 0.00 | 0.88 | 17.94 | 90.13 | -22.95 | 42.30 | 0.5533 | -689.0 | -548.2 | |
| 1.14 | 2.98 | 0.67 | 1.76 | 17.62 | 90.04 | -23.04 | 42.83 | 0.5509 | -850.5 | -666.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
