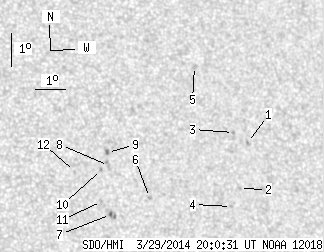

SDO HMI 2014-03-29 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.53 | 23.83 | 0.29 | 13.39 | 3.89 | 138.68 | 26.16 | 291.29 | 0.4740 | 200.2 | 215.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-29 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 0.82 | 4.84 | 142.03 | 29.51 | 290.61 | 0.5264 | -806.0 | -715.9 | |
| 0.00 | 1.75 | 0.00 | 1.01 | 3.42 | 141.70 | 29.17 | 288.26 | 0.5144 | -527.0 | -433.5 | |
| 0.00 | 1.05 | 0.00 | 0.61 | 5.12 | 141.56 | 29.04 | 291.44 | 0.5215 | -862.0 | -727.8 | |
| 0.00 | 1.23 | 0.00 | 0.70 | 2.86 | 141.40 | 28.88 | 287.40 | 0.5075 | -757.0 | -630.9 | |
| 0.00 | 2.63 | 0.00 | 1.52 | 7.07 | 140.35 | 27.82 | 295.84 | 0.5167 | -694.0 | -516.6 | |
| 0.00 | 1.40 | 0.00 | 0.78 | 2.98 | 138.63 | 26.11 | 289.53 | 0.4682 | 791.0 | 716.8 | |
| 0.53 | 4.29 | 0.29 | 2.37 | 2.40 | 137.33 | 24.80 | 289.33 | 0.4460 | 913.2 | 690.3 | |
| 0.00 | 3.77 | 0.00 | 2.09 | 3.89 | 137.30 | 24.77 | 292.44 | 0.4542 | 724.0 | 615.6 | |
| 0.00 | 2.19 | 0.00 | 1.22 | 4.28 | 137.28 | 24.75 | 293.25 | 0.4564 | 994.0 | 778.0 | |
| 0.00 | 1.31 | 0.00 | 0.73 | 3.76 | 137.06 | 24.54 | 292.37 | 0.4500 | 960.0 | 695.4 | |
| 0.00 | 1.93 | 0.00 | 1.06 | 2.78 | 137.04 | 24.51 | 290.37 | 0.4439 | 847.0 | 520.1 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 3.65 | 136.17 | 23.65 | 292.95 | 0.4365 | 613.0 | 461.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
